Passenger's Door

  1. Remove the passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector from the actuator.

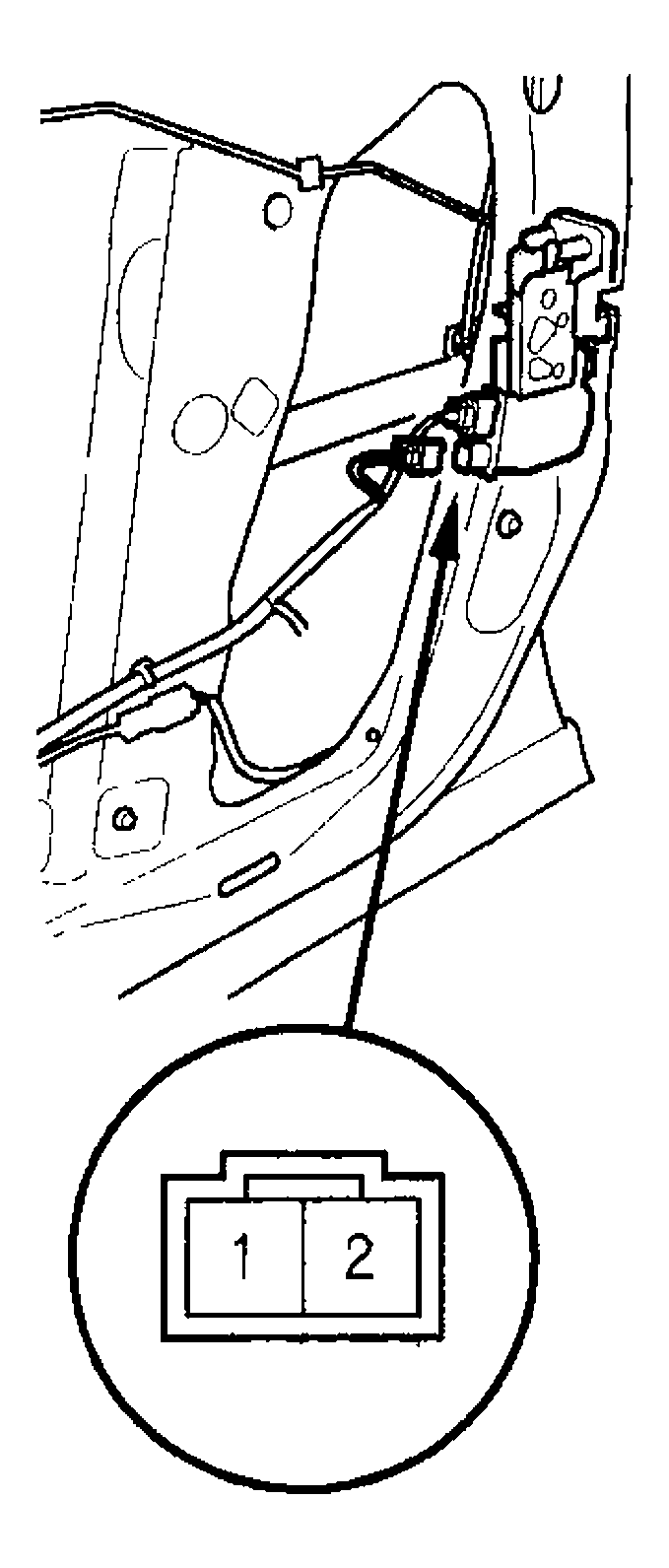

    Fig 1: Disconnecting 2P Connector From Actuator (Passenger's Door)
    G04548455Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

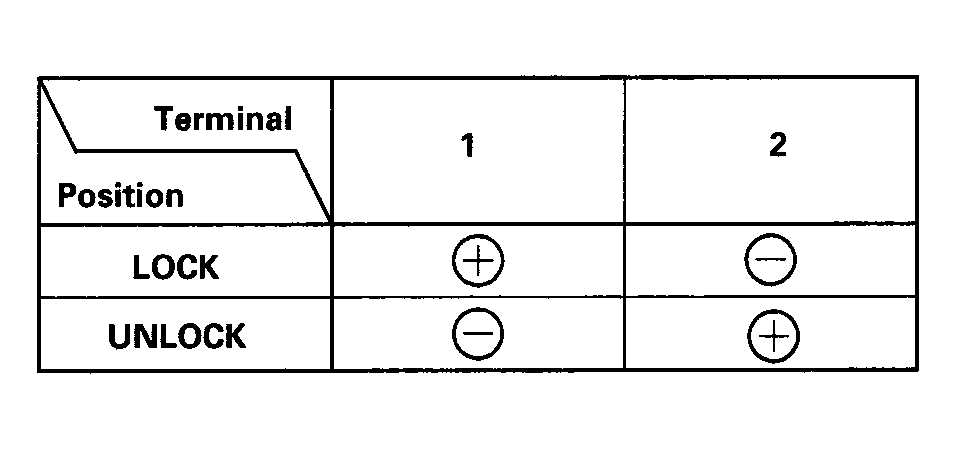

    Fig 2: Identifying Passenger's Door Switch Positions
    G04548456Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the actuator does not operate as specified, replace it.
