DTC 4, 8 And/Or 9 - TDC/CKP/CYP Sensor

Fig 1: DTC 4, 8 And/Or 9 Diagnostic Flow Chart - 1 Of 2 (Prelude) TDC/CKP/CYP Sensor
G95A32557

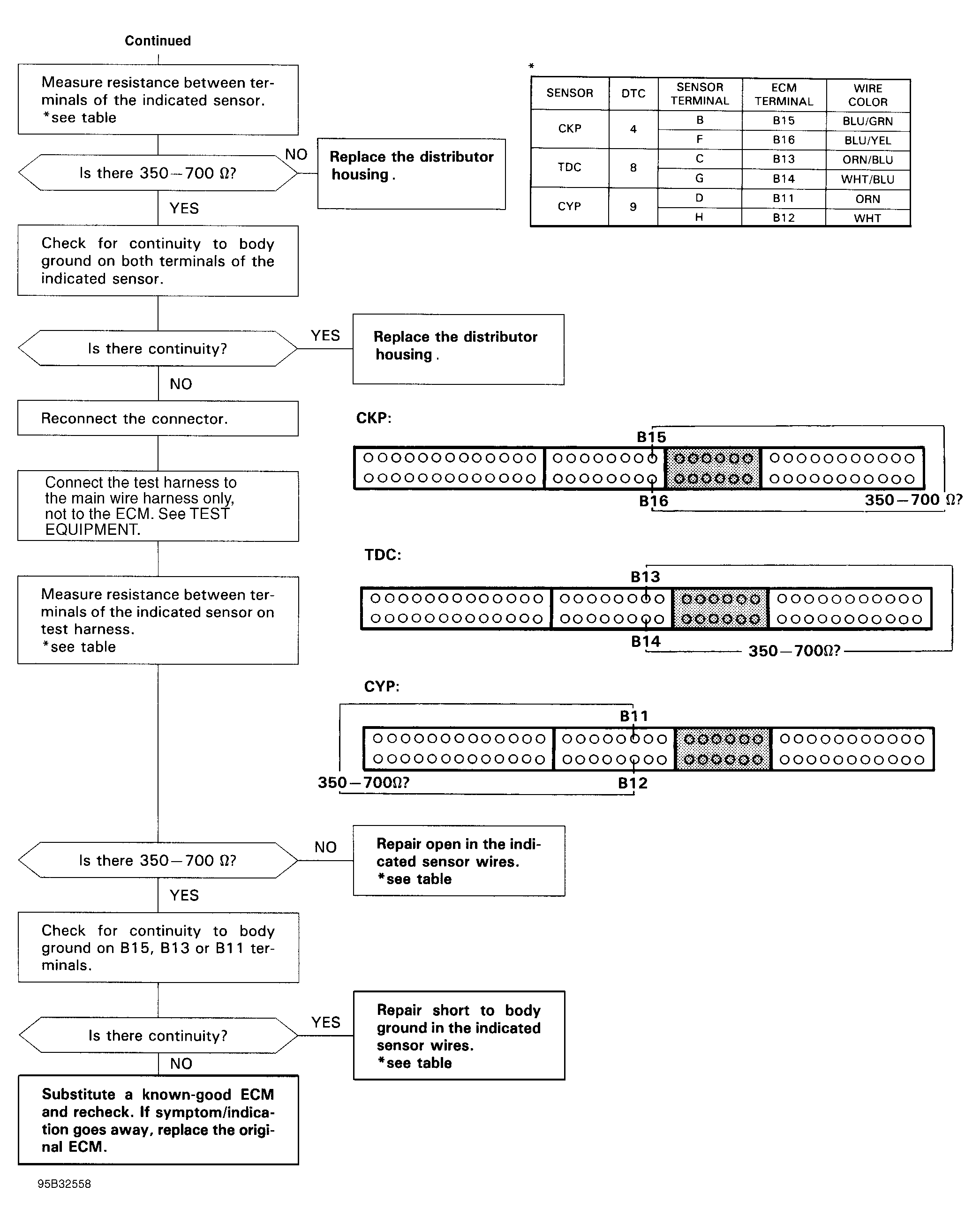

Fig 2: DTC 4, 8 And/Or 9 Diagnostic Flow Chart - 2 Of 2 (Prelude) TDC/CKP/CYP Sensor
G95B32558
