Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

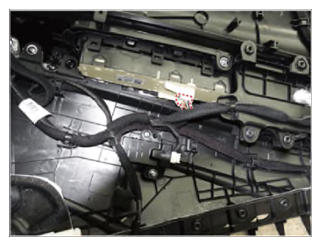

  3. Disconnect door lock switch connector.
    G14724011Courtesy of HYUNDAI MOTOR AMERICA

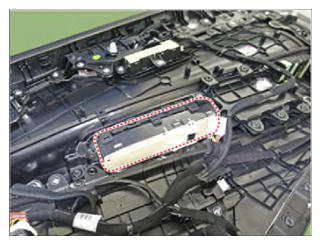

  4. Disengage the mounting clip and then remove the door rock switch assembly
    G14724012Courtesy of HYUNDAI MOTOR AMERICA
