Sunroof Window Motor Replacement

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

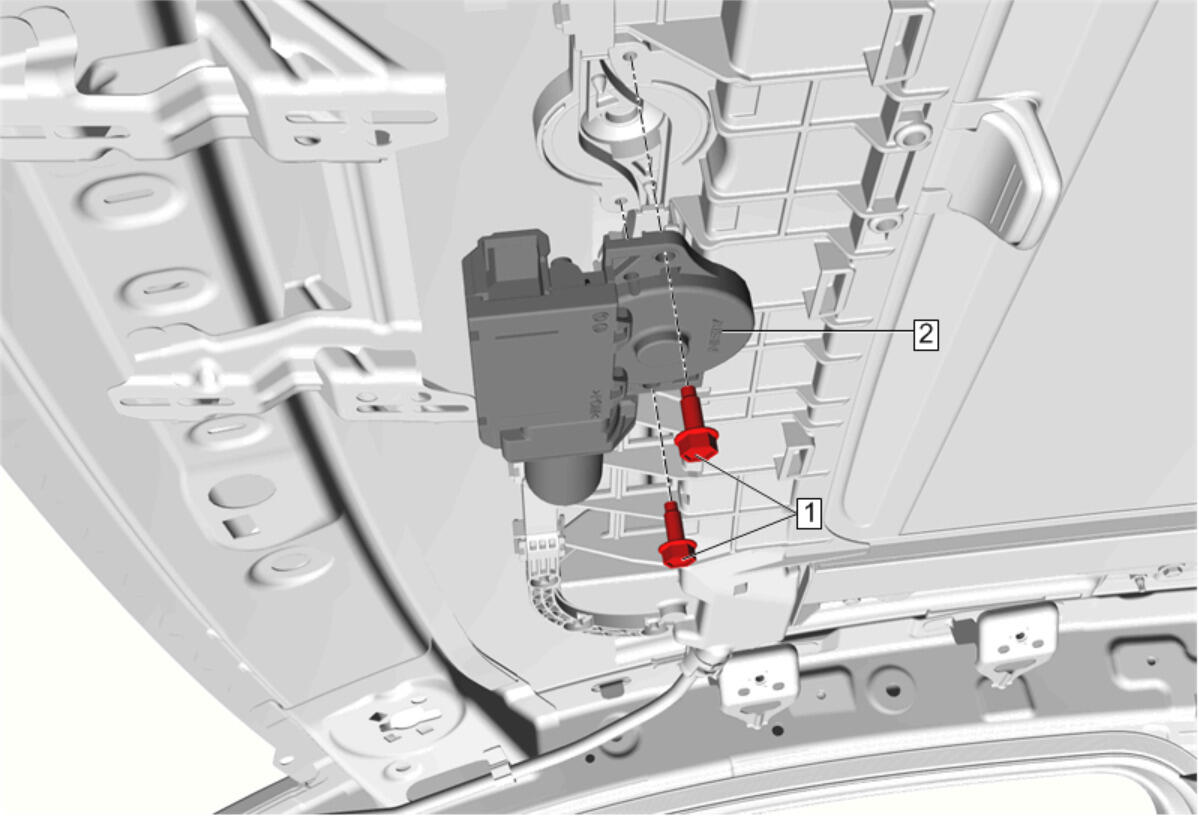

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U) .
1	Sunroof Window Motor Bolt [ 2x ] CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb/in)
2	Sunroof Window Motor Procedure Disconnect the electrical connector. With a turning motion, pull downward on the sunroof window motor to disengage the motor from the drive cables. Install the sunroof window motor to the frame with a turning motion, pushing upward to engage the motor into the drive cables. Sunroof/Sunshade Motor Initialization Verify the sunroof window motor operation.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed.

Headlining Trim Panel Replacement (With C3U) , or

Headlining Trim Panel Replacement (Without C3U) .

Sunroof Window Motor Bolt [ 2x ]

CAUTION:

Refer to Fastener Caution .

Tighten
4 N.m (35 lb/in)

Sunroof Window Motor

Procedure

Disconnect the electrical connector.
With a turning motion, pull downward on the sunroof window motor to disengage the motor from the drive cables.
Install the sunroof window motor to the frame with a turning motion, pushing upward to engage the motor into the drive cables.
Sunroof/Sunshade Motor Initialization
Verify the sunroof window motor operation.
