Rear Side Door Window Switch Replacement

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

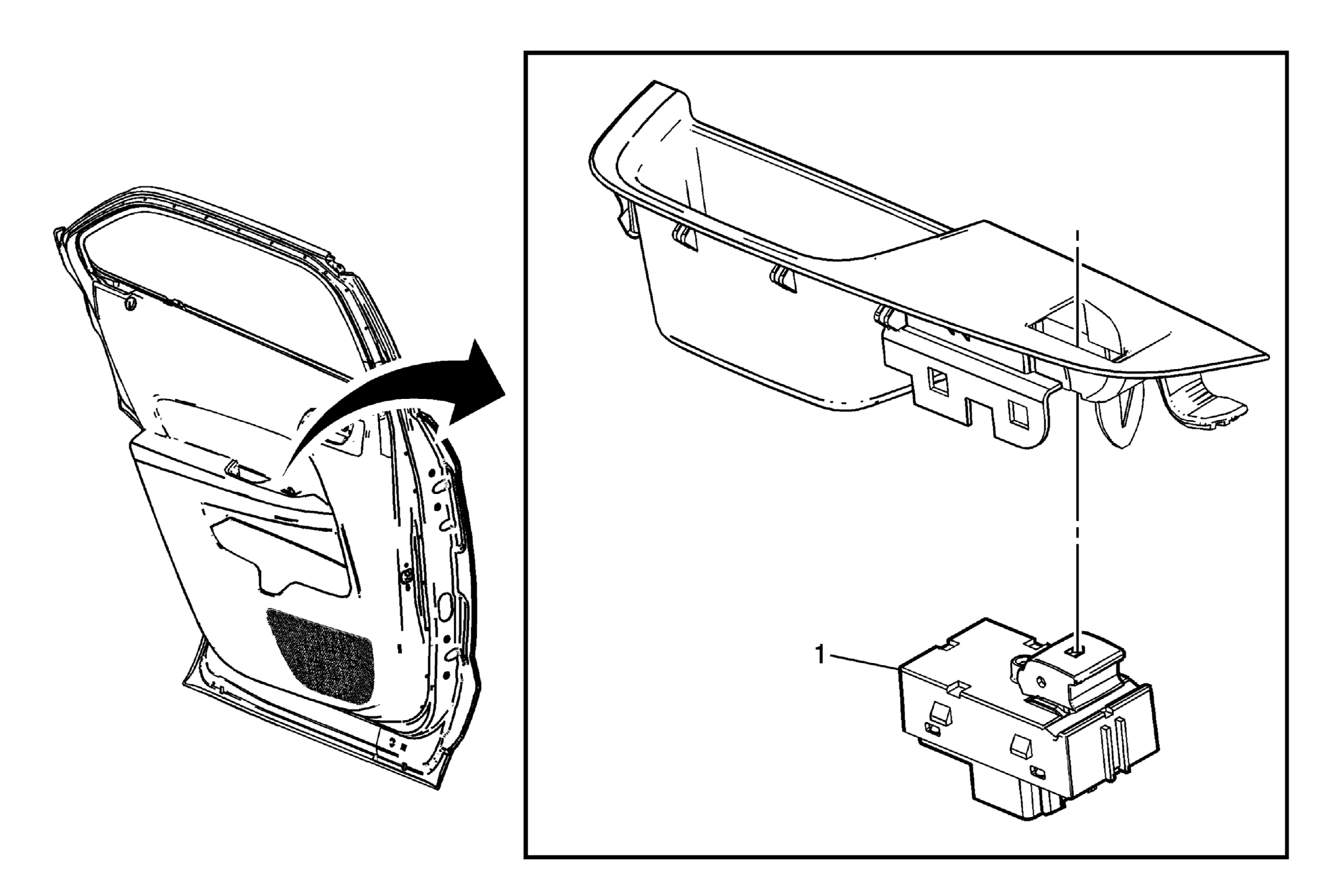

Fig 1: Rear Side Door Window Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear side door accessory switch mount plate. Refer to Rear Side Door Accessory Switch Mount Plate Replacement .
1	Rear Side Door Window Switch Assembly Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure:
Remove the rear side door accessory switch mount plate. Refer to Rear Side Door Accessory Switch Mount Plate Replacement .

Rear Side Door Window Switch Assembly

Procedure

Disconnect the electrical connectors.
Refer to Control Module References for programming and setup information.
