Home >> GMC >> 2008 >> Yukon Denali AWD V8-6.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Diagrams

Refrigerant Pressure Sensor / Switch: Diagrams

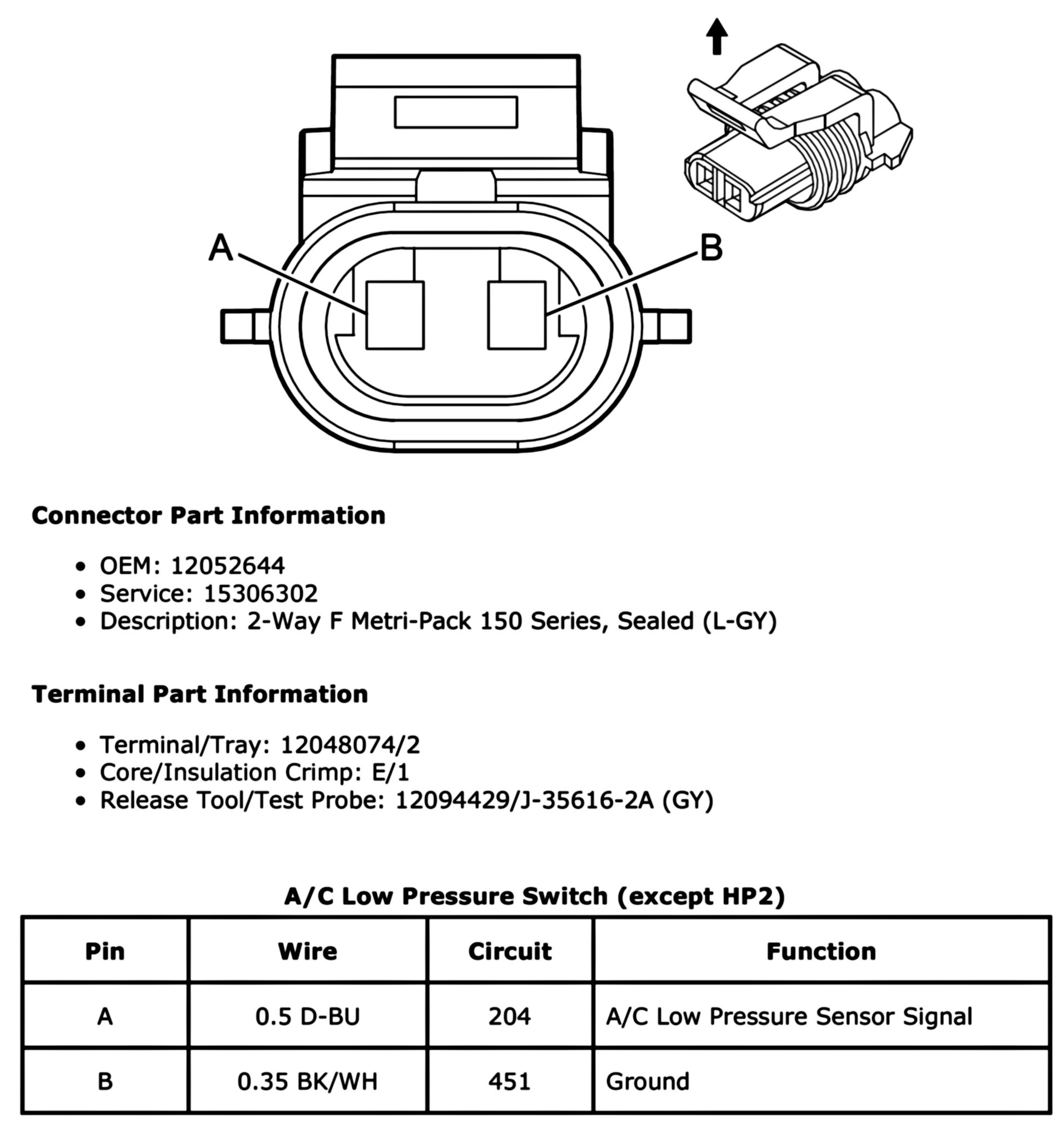

A/C Low Pressure Switch
