Removal Procedure

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

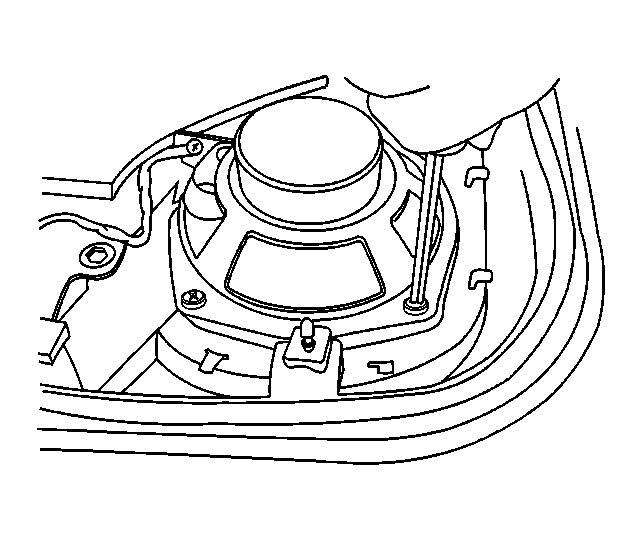

    Fig 1: View Of Front Lower Door Speaker
    GM334823Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
  2. Disconnect the electrical connector from the speaker.
  3. Remove the 4 rear speaker fasteners.
  4. Remove the rear speaker from the door trim panel.
