Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Remove the vacuum brake booster hose. Refer to Vacuum Brake Booster Check Valve and/or Hose Replacement in Hydraulic Brakes.
    3. Fig 1: View Of Starter & Related Components
    GM754358Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery positive lead from the solenoid (1).
    4. Fig 2: View Of Starter Solenoid S-Terminal Lead & Nut
    GM1380362Courtesy of GENERAL MOTORS CORP.
  4. Remove the starter solenoid S-terminal lead nut (1) from the solenoid.
  5. Remove the starter solenoid S-terminal lead (2) from the solenoid.

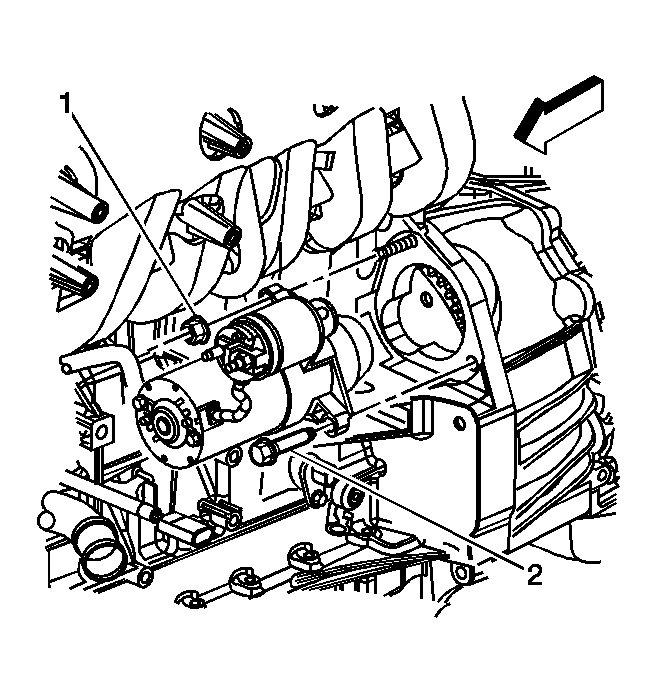

    6. Fig 3: View Of Starter Mount Bolt & Nut
    GM759316Courtesy of GENERAL MOTORS CORP.
  6. Remove the starter mount bolt and nut (1, 2).
  7. Remove the starter motor.
