Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1996 GMC Vandura Special, 1996 GMC Vandura, 1996 GMC Savana Special, 1996 GMC Savana Camper Special, and 1996 GMC Savana. However, it is still accessible from the selected car via links, so may be relevant.

DTC 53 will be accompanied by another DTC (other than DTC 71). Repair malfunction causing other DTC before installing new inflatable restraint control module.

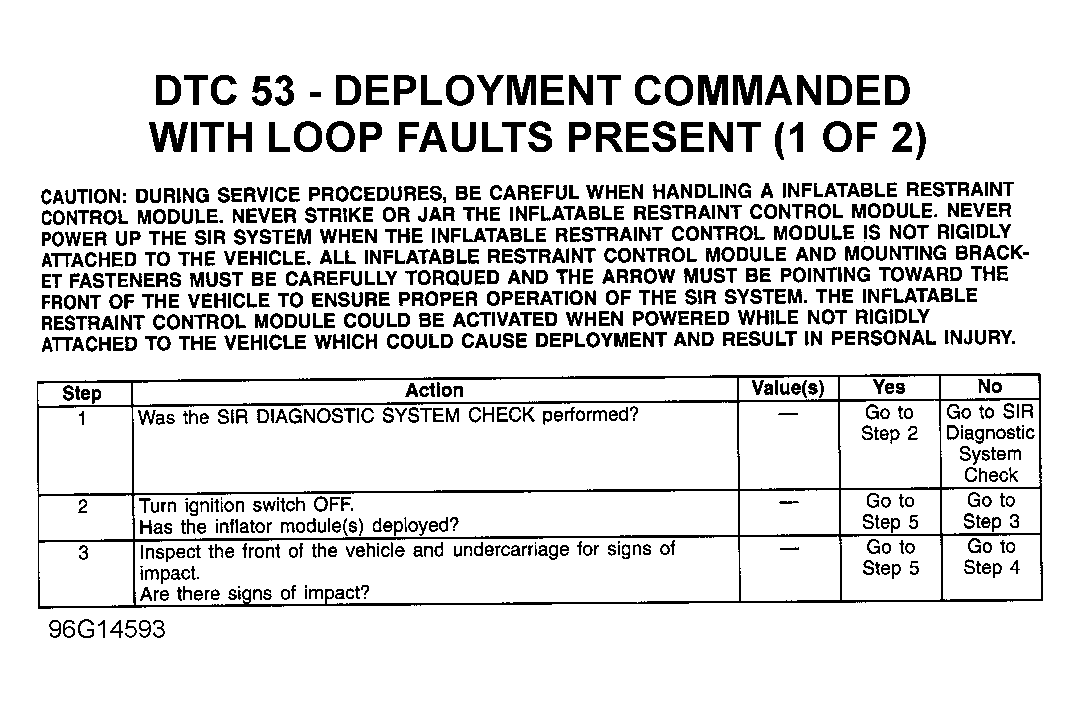

Fig 1: DTC 53 - Deployment Commanded With Loop Fault Present (1 Of 2)
G96G14593Courtesy of GENERAL MOTORS CORP.

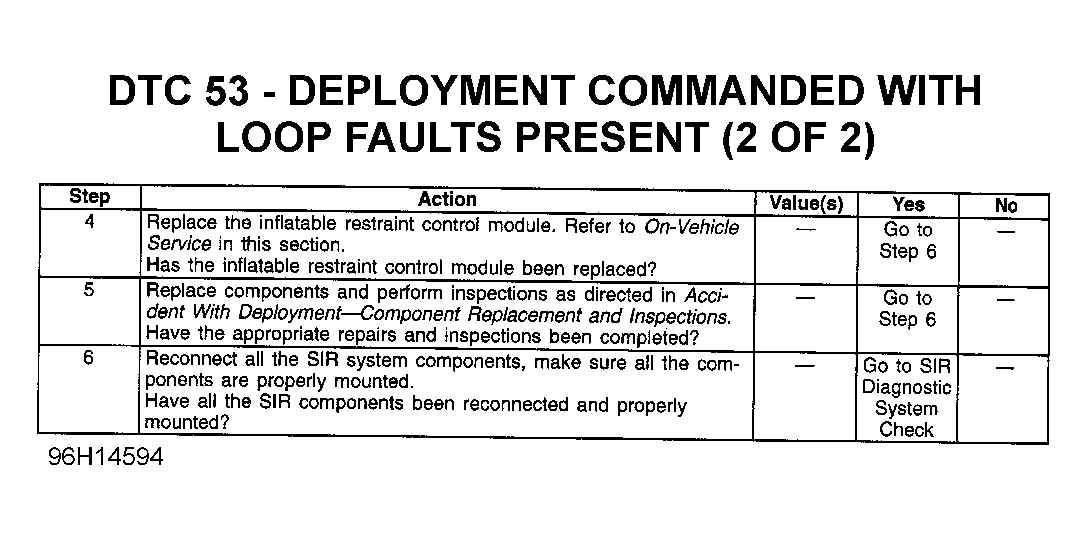

Fig 2: DTC 53 - Deployment Commanded With Loop Fault Present (2 Of 2)
G96H14594Courtesy of GENERAL MOTORS CORP.
