Home >> GMC >> 1985 >> Jimmy Full Size V8-350 5.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

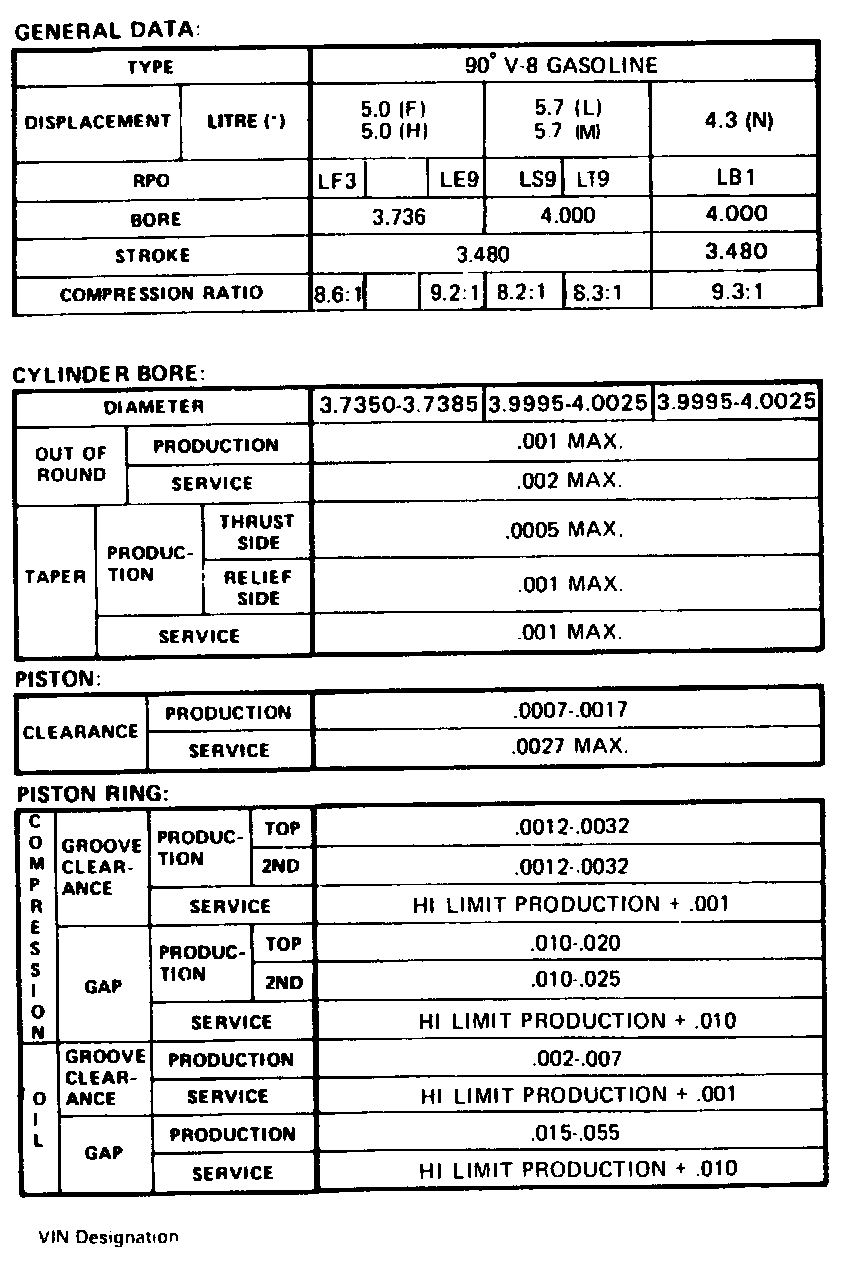

Engine Specifications:

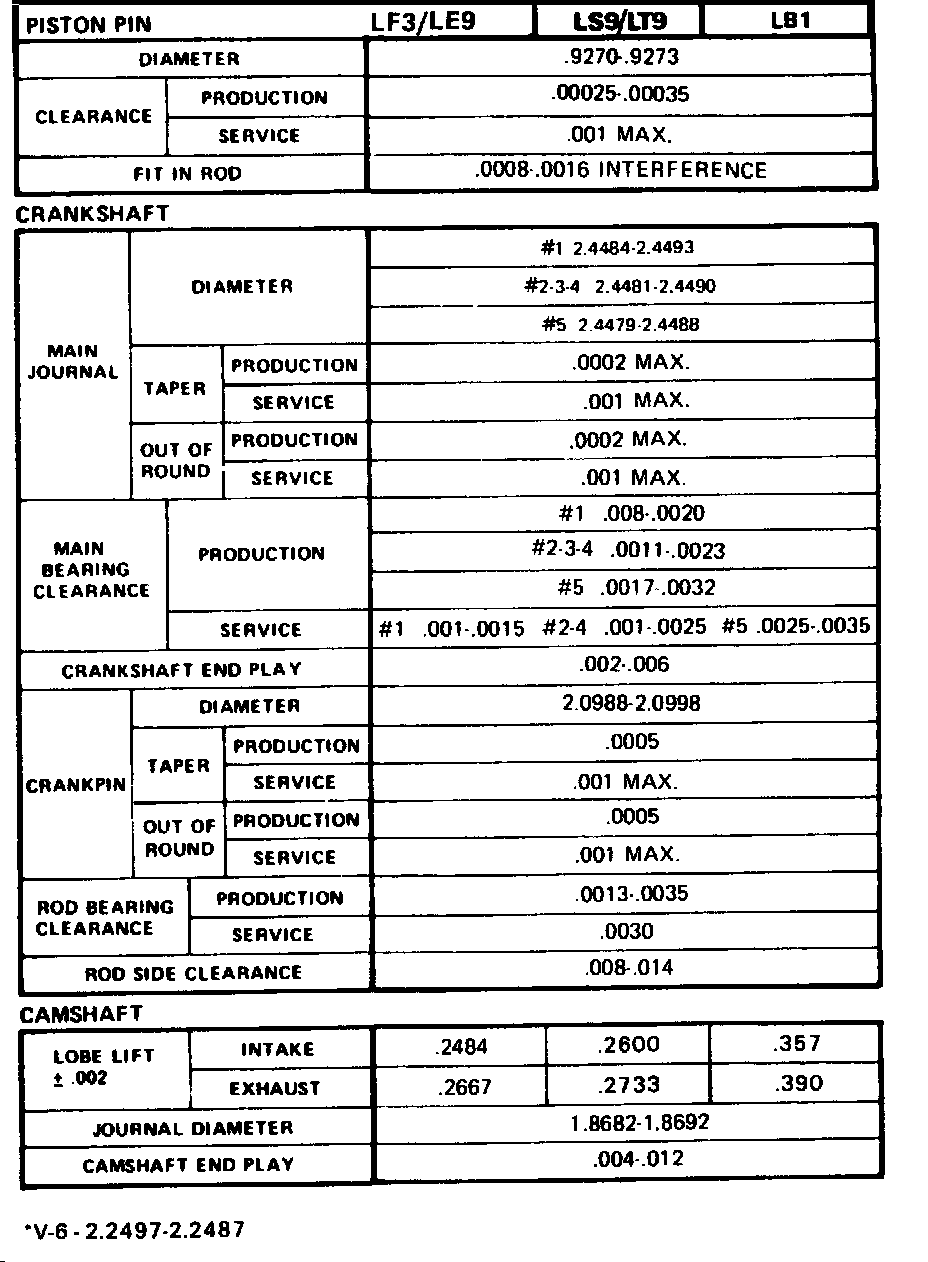

Continued Engine Specifications:

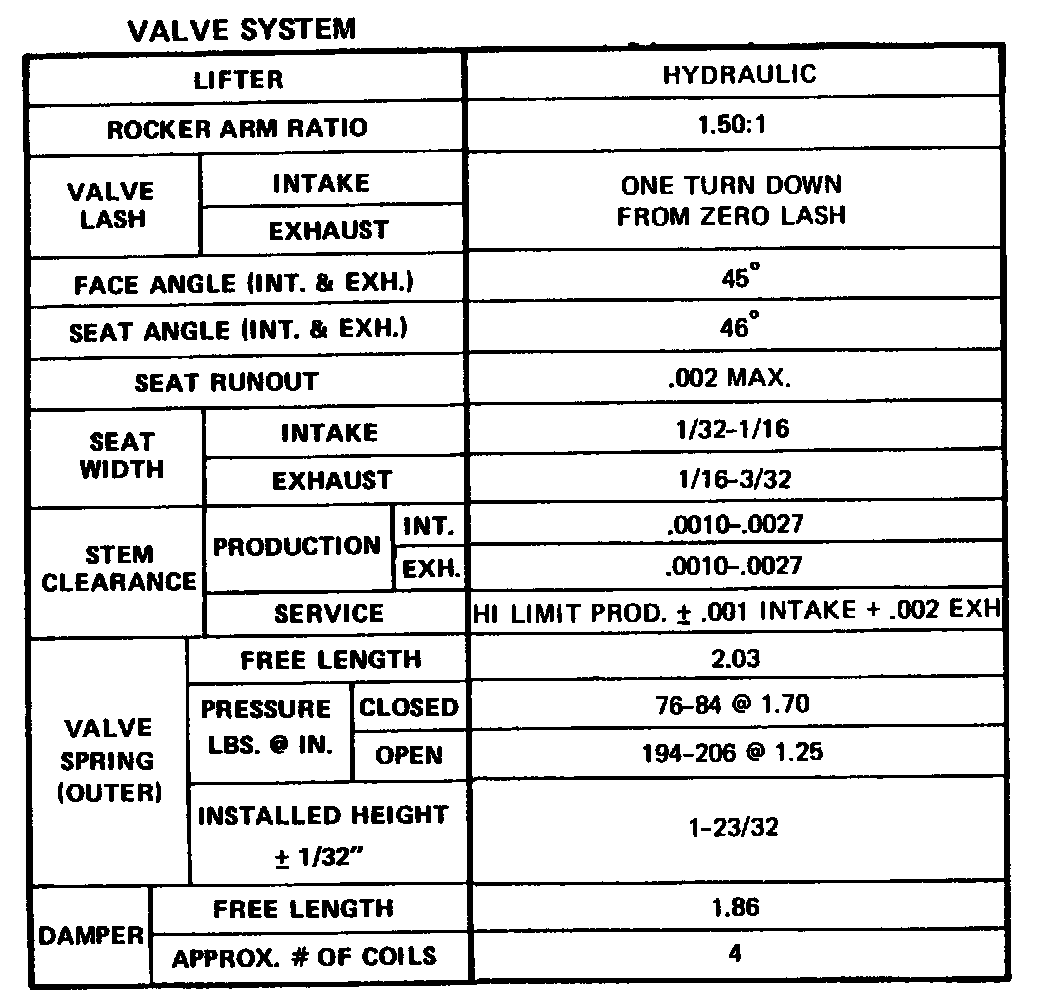

Continued Engine Specifications:

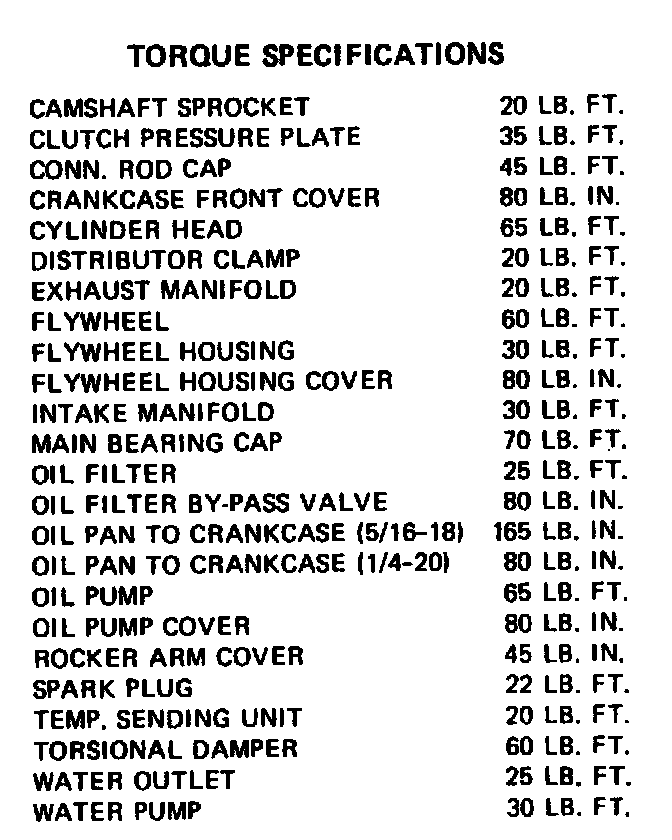

Torque Specifications:

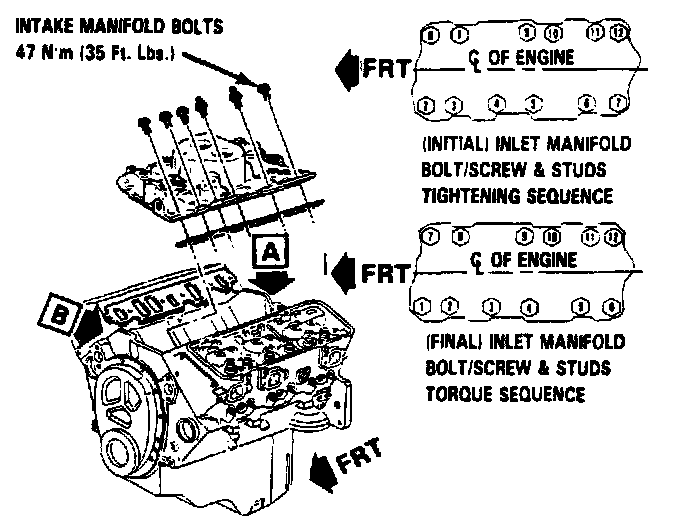

Intake Manifold Sequence V8:





Intake Manifold Sequence V6:





Cylinder Head Sequence:
