Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the RH valve cover. Refer to: Valve Cover RH .

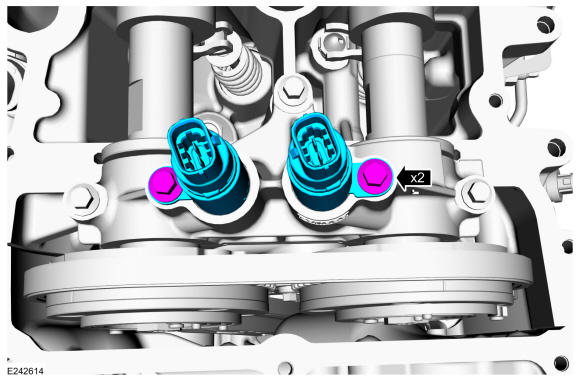

2. Remove the bolts and the RHVCT oil control solenoids.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

3. Remove the LH valve cover. Refer to: Valve Cover LH .

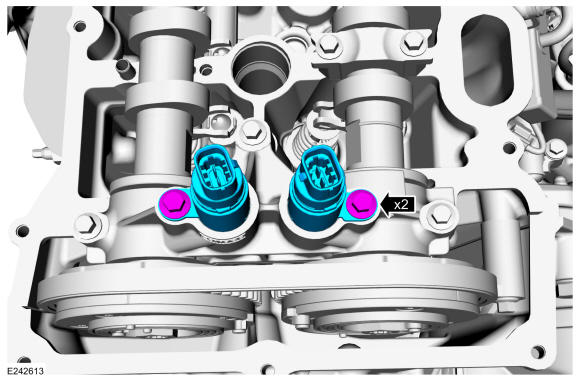

4. Remove the bolts and the LHVCT oil control solenoids.

   Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
