Transfer Case Shift Motor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

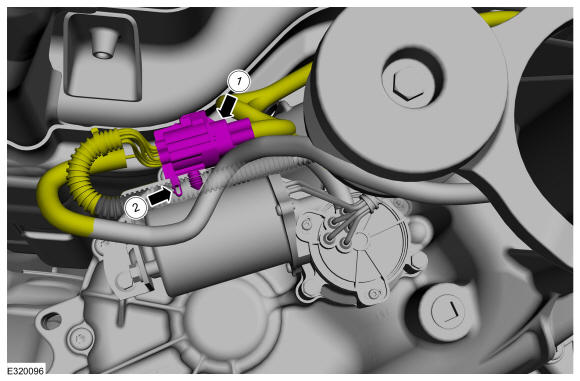

    1. Disconnect the wiring harness connector.
    2. Detach wiring harness retainers.
    GFD583101Courtesy of FORD MOTOR COMPANY

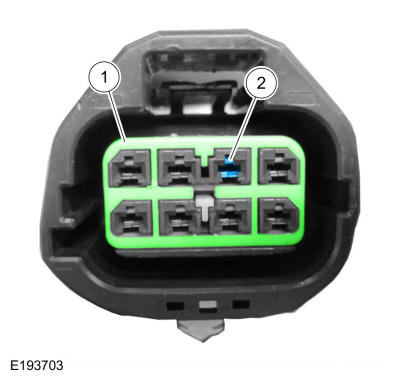

  3. Remove the coil wire pin from the electrical connector.

    1. Remove the inner retainer from the wire connector.
    2. Press the release tab and remove the coil wire pin.

    GFD583102Courtesy of FORD MOTOR COMPANY

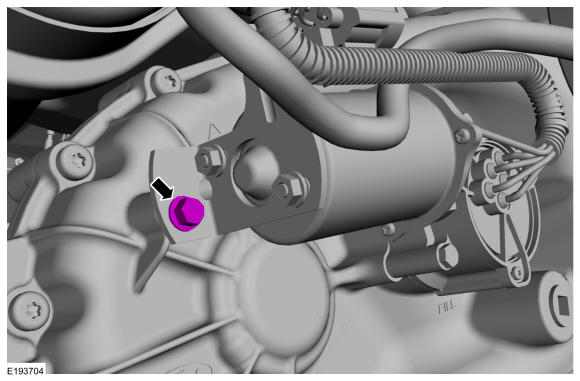

  4. Remove the transfer case shift motor bracket bolt.
    GFD583103Courtesy of FORD MOTOR COMPANY

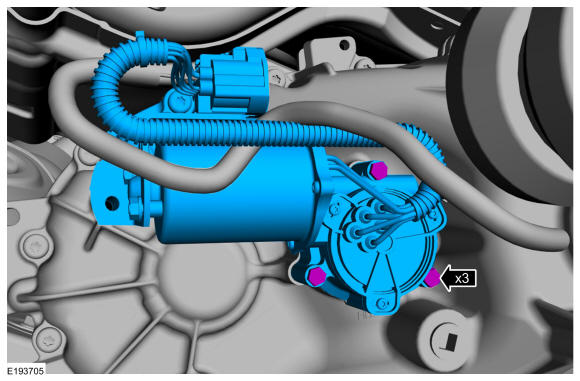

  5. Remove the mounting bolts and the transfer case shift motor.
    GFD583104Courtesy of FORD MOTOR COMPANY

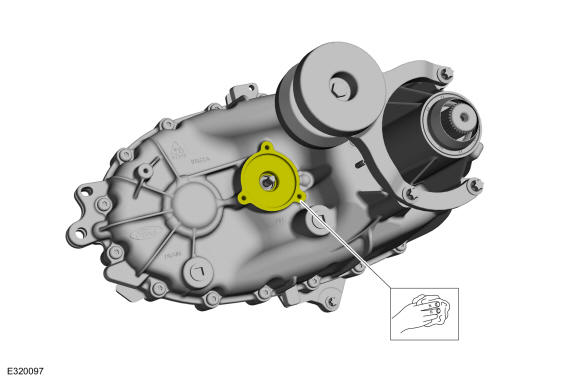

  6. Clean the transfer case shift motor mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD583105Courtesy of FORD MOTOR COMPANY
