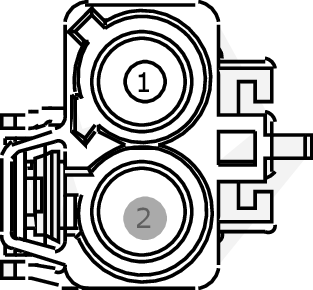

Connector End View (C9051) - ANTENNA

Connector:C9051

Description

ANTENNA

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME43 (*)	20	CTRL MOD. - ANTENNA # SATELLITE DIGITAL RADIO +
2	*	*	Not Used
