Fuel Rail Pressure (FRP) Sensor Connector End View (C1360)

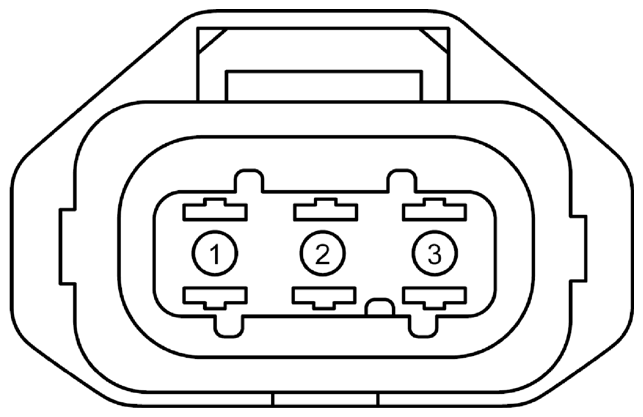

Fig 1: Identifying Fuel Rail Pressure (FRP) Sensor Connector (C1360)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (BU)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)
2	* (BK)	20	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)
3	* (GY)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREV) (VREF1)
