Marker Lamp, Left Rear Connector End View (C4136)

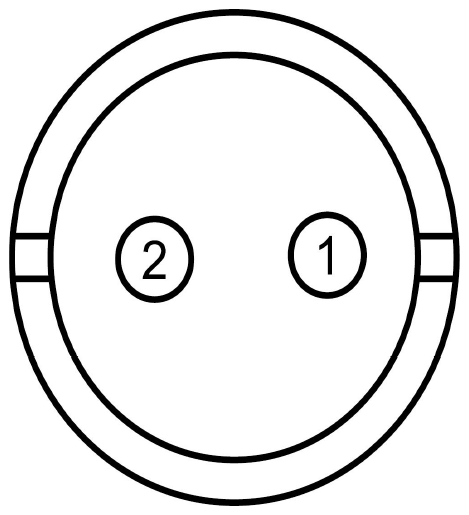

Fig 1: Identifying Marker Lamp, Left Rear Connector (C4136)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	29-LF7 (BK)	20	LEFT REAR~PARKING ~LAMP, BATTERY VOLTAGE, SECONDARY FUSED
2	31-LF7 (OG-BU)	20	LEFT REAR~PARKING ~LAMP, GROUND POWER RETURN

Available Pigtail Kits
Pigtail Kit Part Number WPT-1201	Service Part Number: BU2Z-14S411-APA  Gauge: 18  Pin material: Tin  Cavities: 2  Vehicle Uses Lamp - Front Turn Lamp - Side Marker Lamp - Side Marker (Rear Fender)
