Seat Backrest Front: Removal
WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For component identification and locations, refer to Seat - Exploded View, Front .
NOTE:
Driver side shown, passenger side similar.
- 1.
Remove the front seat. Refer to Seat - Front .
- 3.
Remove the recliner cover.- 1.
Remove the recliner cover screw.
- 2.
Remove the recliner cover scrivet.
- 3.
Lift the hook and remove the recliner cover.
- 1.
- 5.
From the front of the seat, disengage the wire harness retainer and disconnect the seat control switch connectors.
- 6.

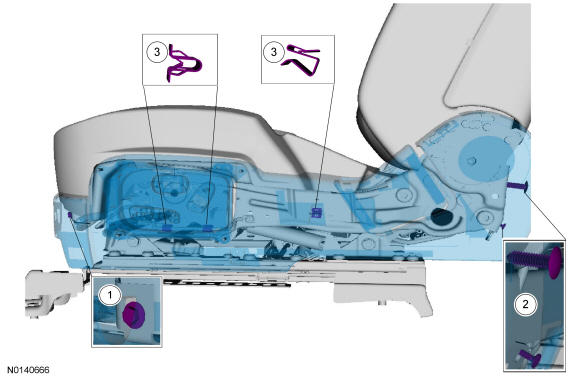

Remove the seat cushion side shield from the seat cushion.- 1.
Remove the screw at the front of the cushion side shield.
- 2.
Remove the pushpin and scrivet at the rear of the cushion side shield.
- 3.
Disengage the cushion side shield retainers from the seat cushion.
- 1.
- 8.NOTE: Driver side shown, passenger similar.

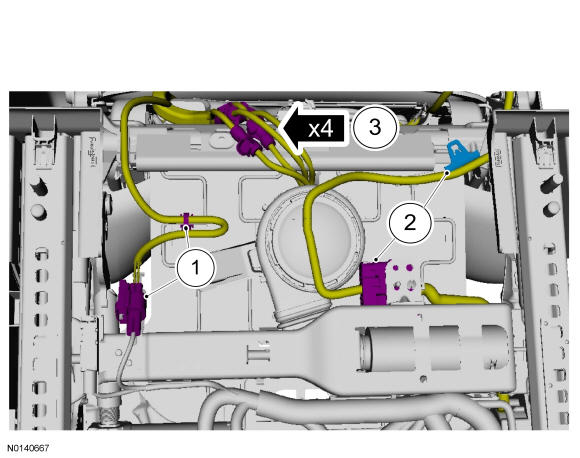

Disconnect the seat backrest wiring and Active Motion® hoses (if equipped) from the under the seat cushion.
- 1.
Disconnect the side air bag electrical connector and retainer.
- 2.
Disconnect the seat backrest electrical connector and retainer.
- 3.
Disconnect the Active Motion® hoses (if equipped), and route the wire harness(es) and hoses through the hole in the carpet flap toe-kick.
- 1.
- 9.

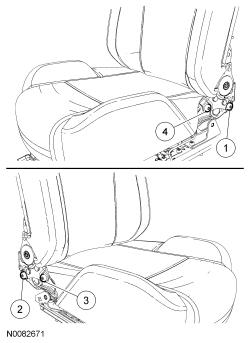

Remove the 4 recliner-to-seat track bolts in the order shown below and remove the backrest assembly.
