Sync Gen 1

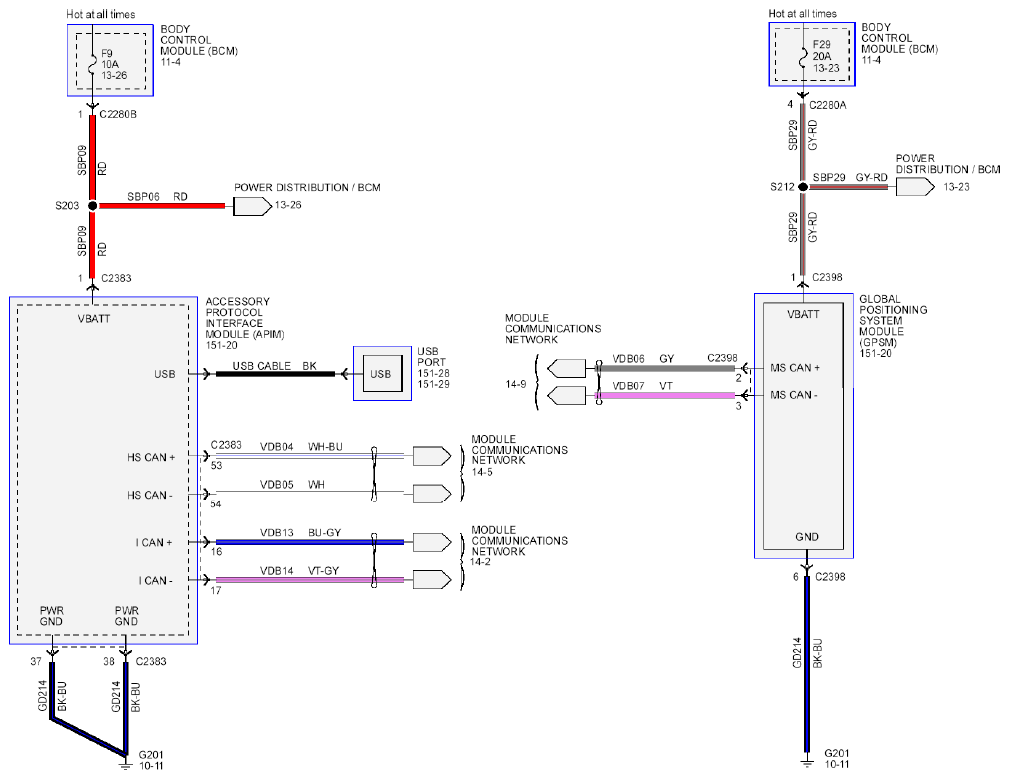

Fig 1: Audio System/Navigation (SYNC Gen 1) - Wiring Diagram (1 Of 3)
G08748603Courtesy of FORD MOTOR CO.

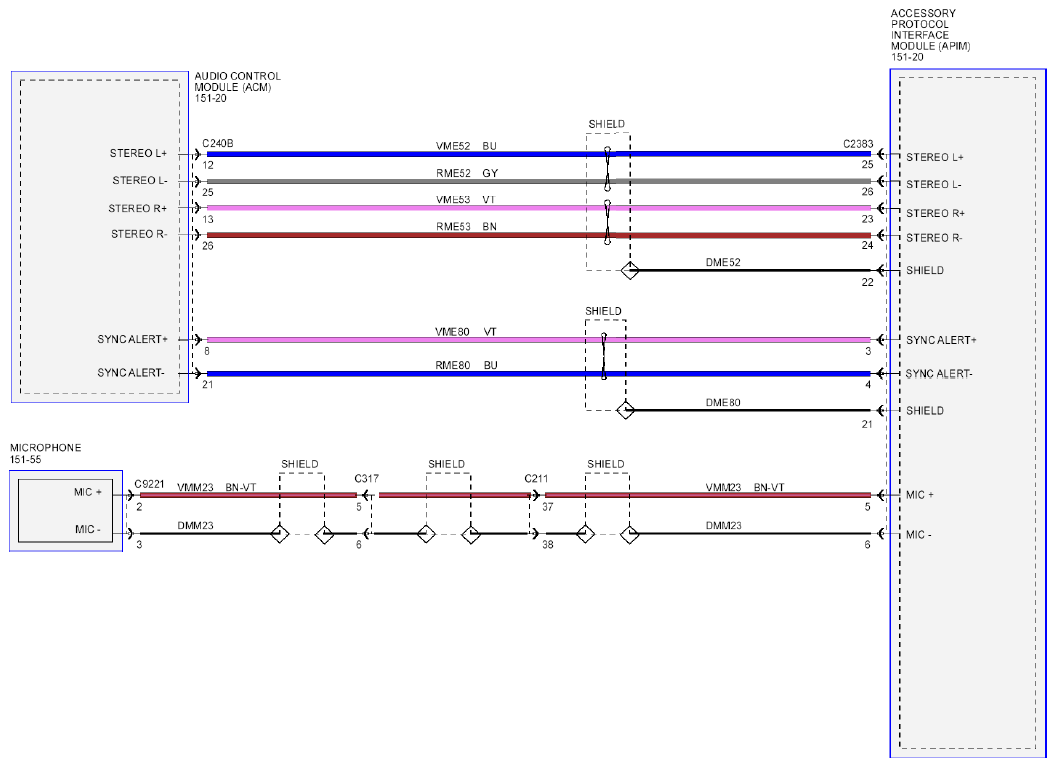

Fig 2: Audio System/Navigation (SYNC Gen 1) - Wiring Diagram (2 Of 3)
G08748604Courtesy of FORD MOTOR CO.

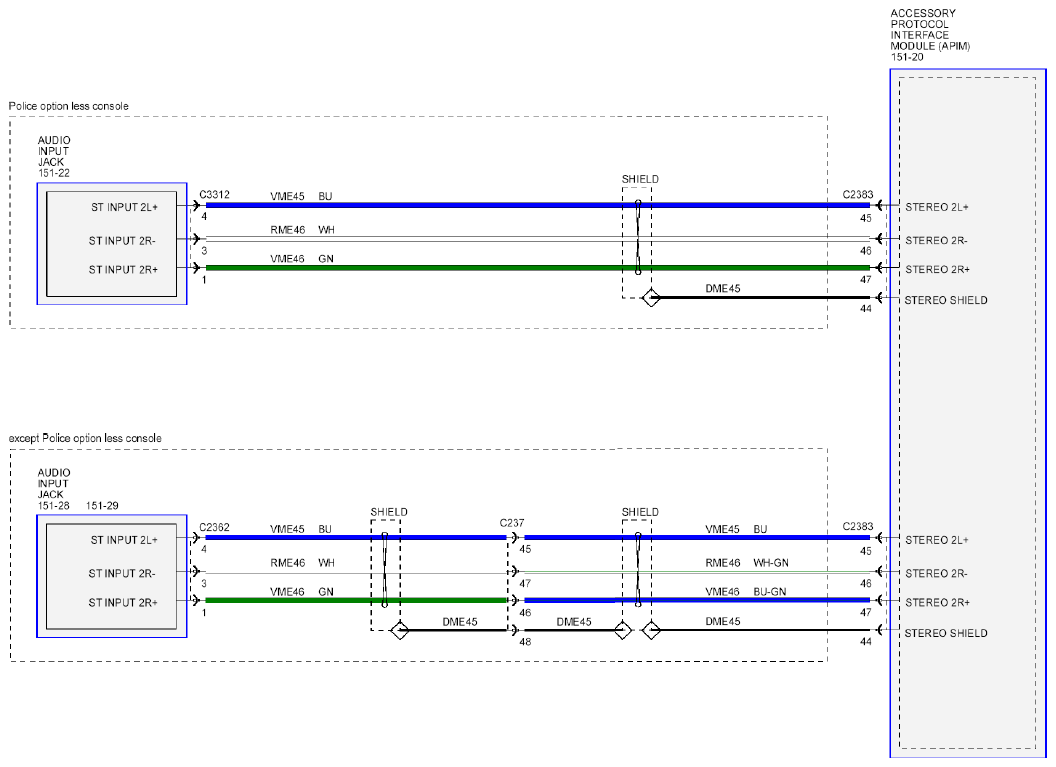

Fig 3: Audio System/Navigation (SYNC Gen 1) - Wiring Diagram (3 Of 3)
G08748605Courtesy of FORD MOTOR CO.
