Symptom Related Diagnostic Procedures




Locks, Latches and Entry Systems






Symptom Chart

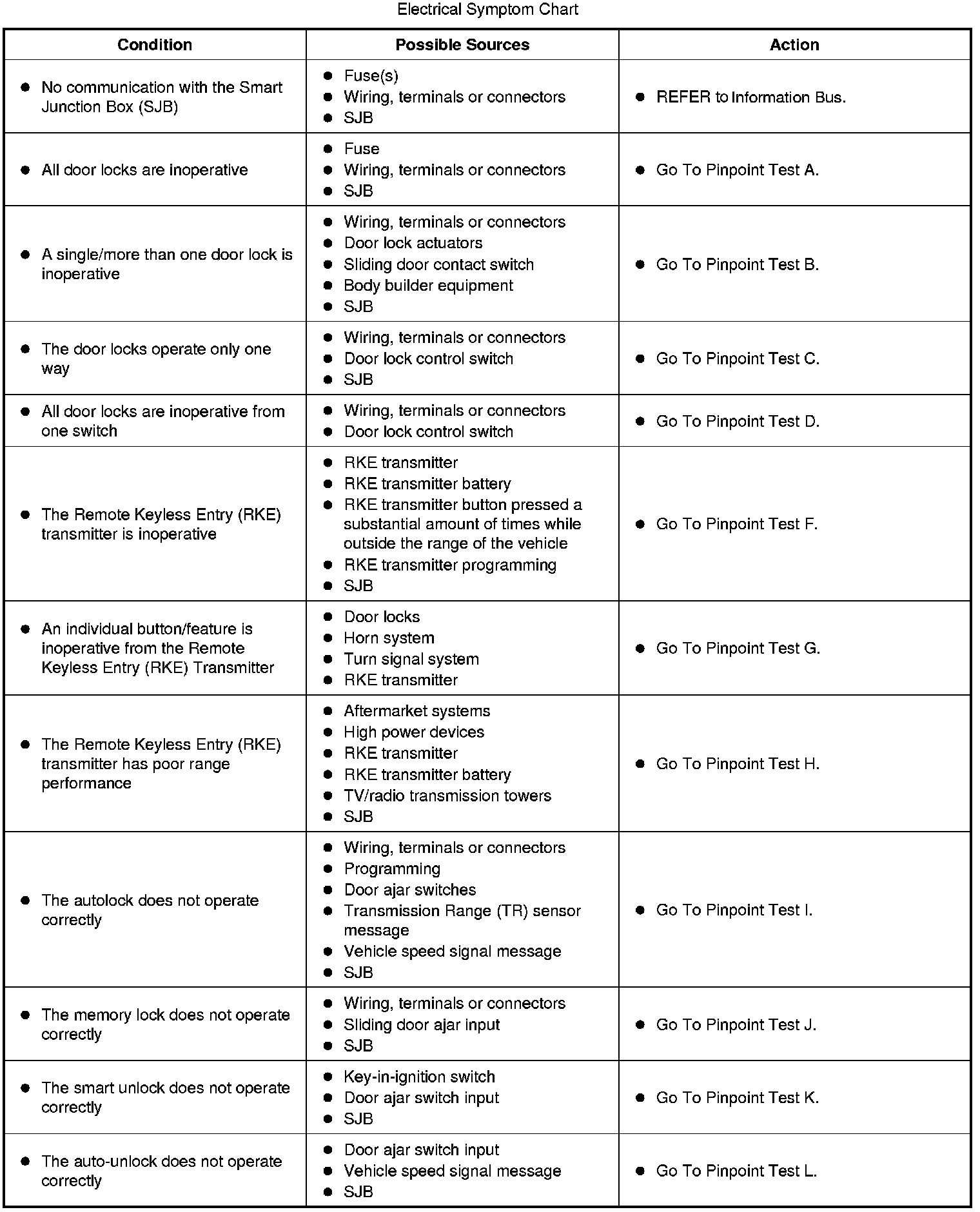

Electrical Symptom Chart (Part 1):

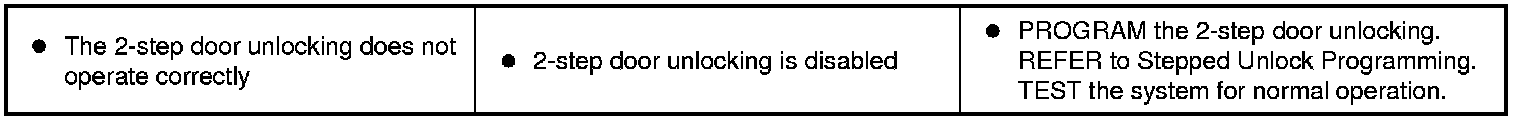

Electrical Symptom Chart (Part 2):

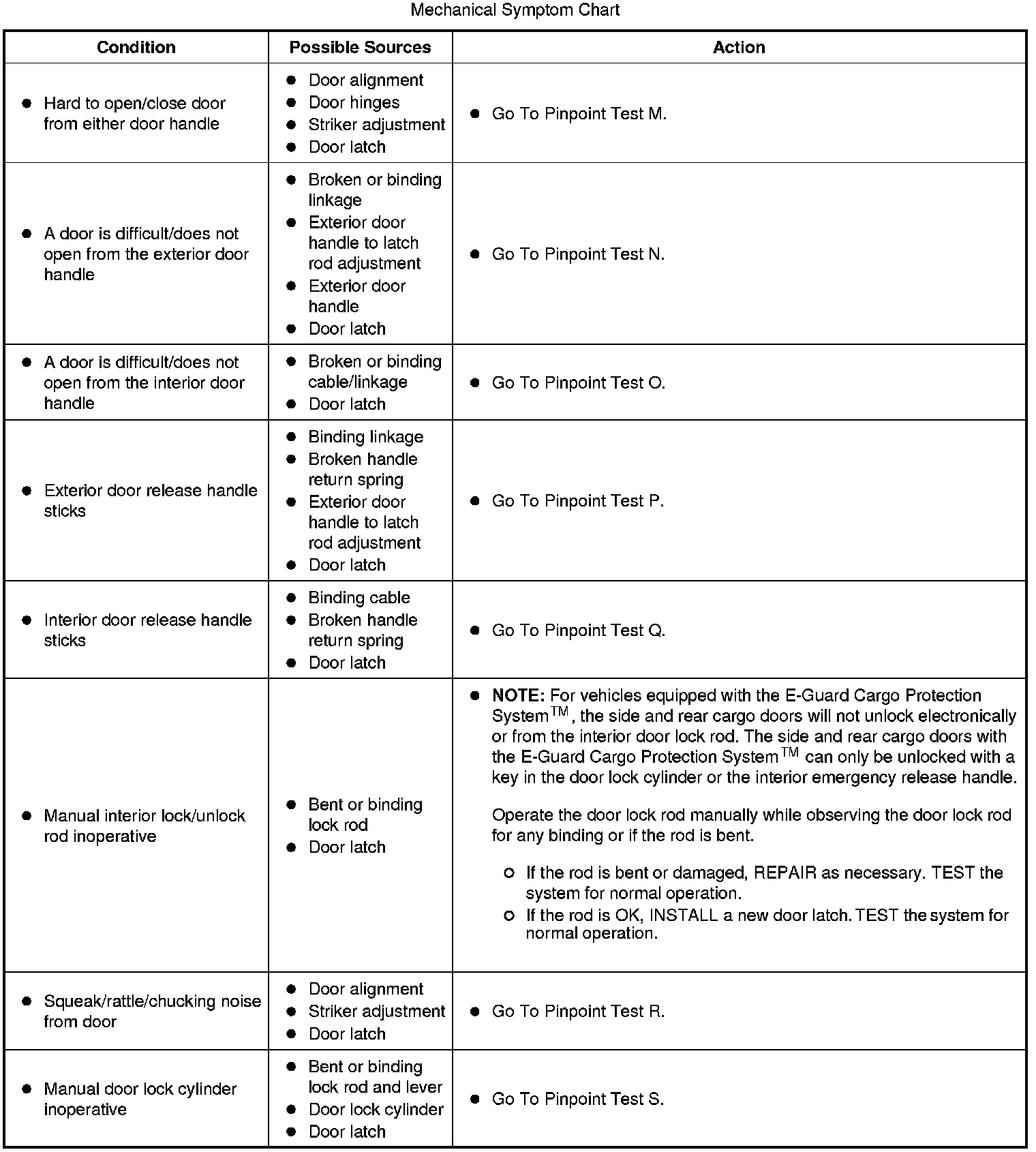

Mechanical Symptom Chart (Part 1):

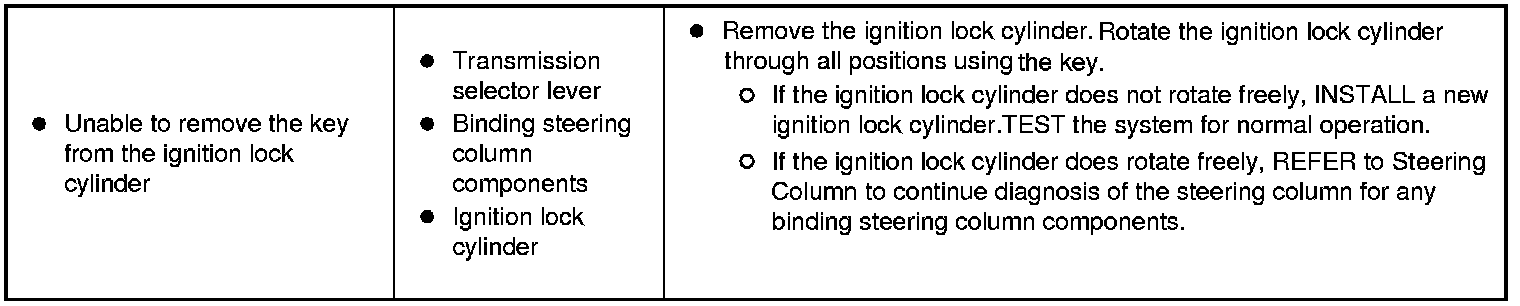

Mechanical Symptom Chart (Part 2):
