Clockspring Connectors

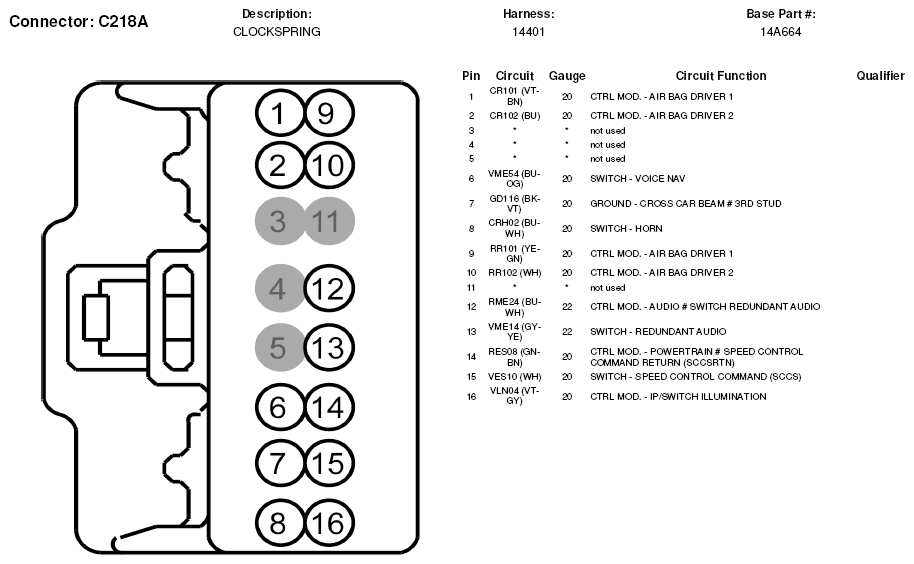

Fig 1: Clockspring Connector End View (C218A)

G05602431

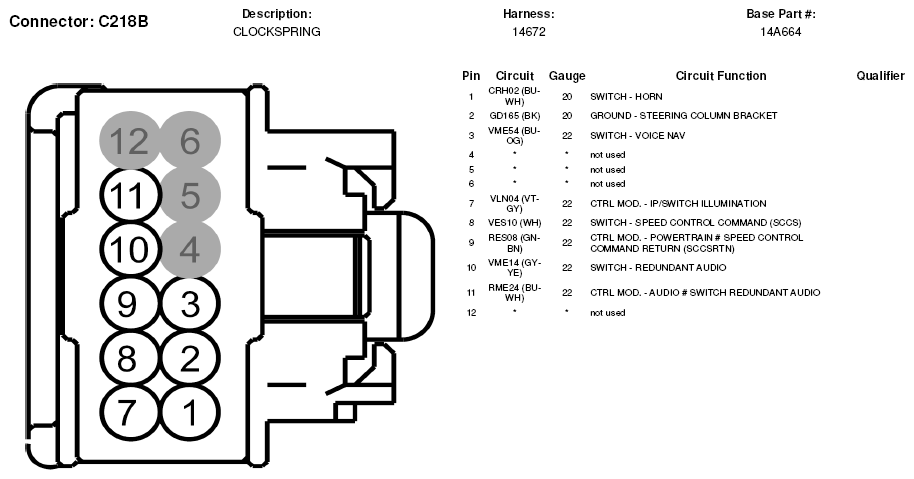

Fig 2: Clockspring Connector End View (C218B)

G05602432
