Home >> Ford >> 2008 >> Explorer 4WD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C101-C150 >> C134

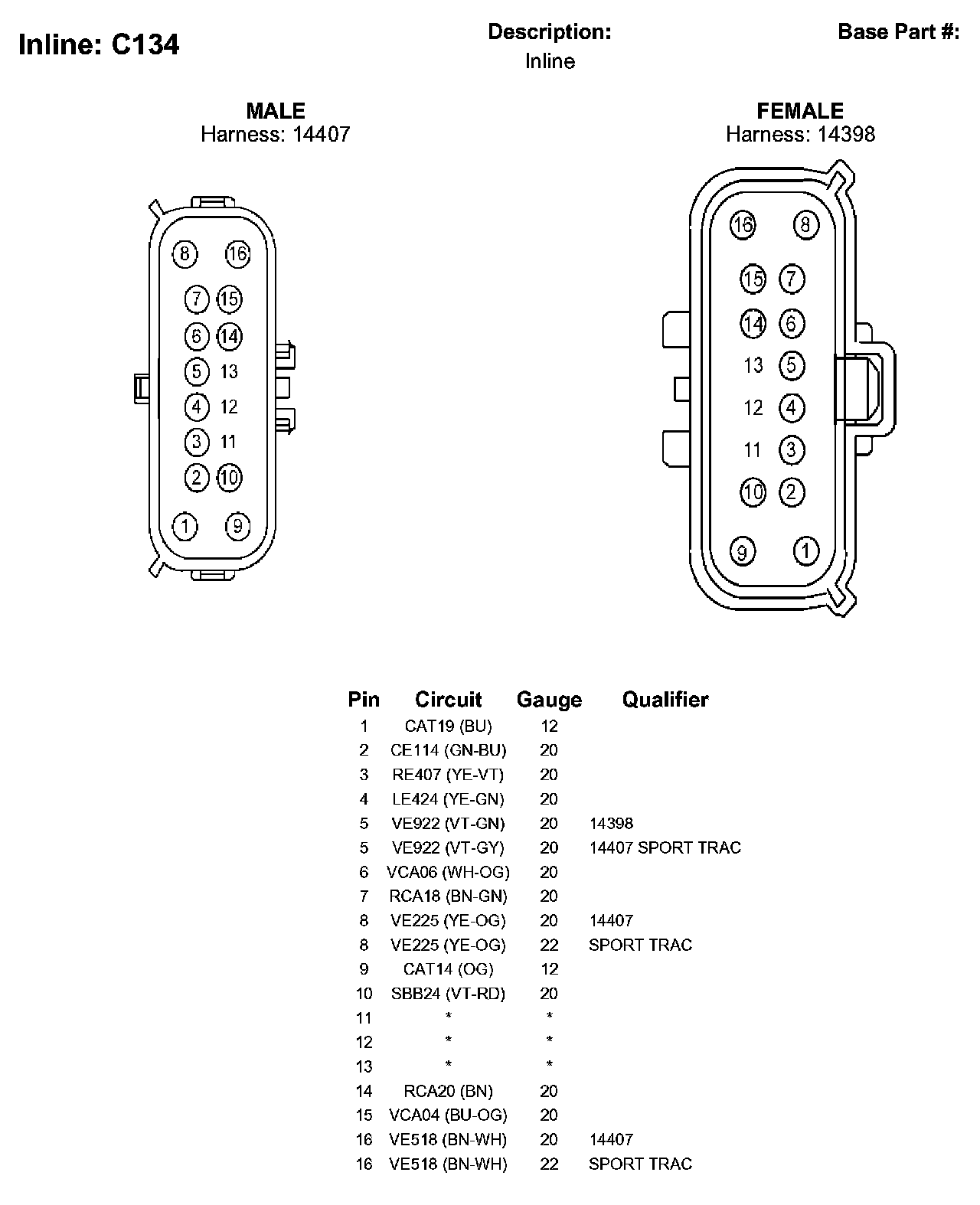

C134

C134:
