Liftgate Glass Ajar Switch Connector

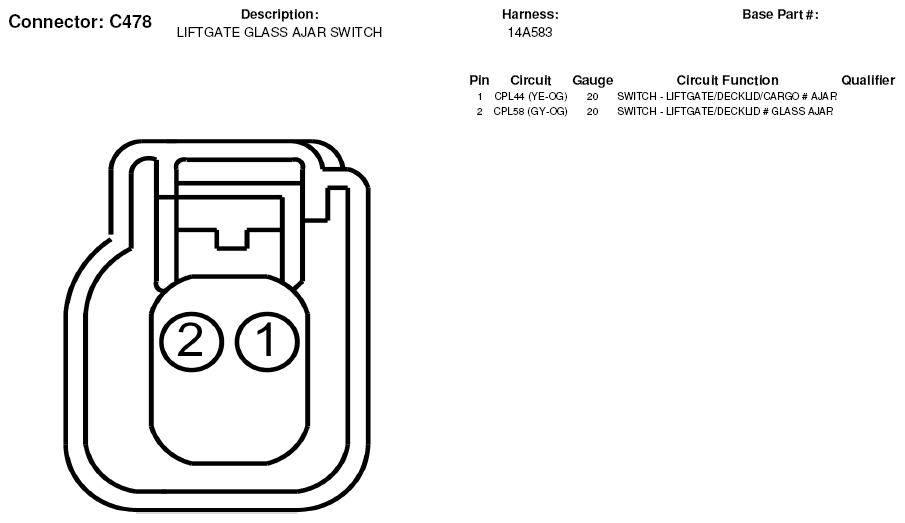

Fig 1: Liftgate Glass Ajar Switch Connector End View (C478)

G05600755
