Bussed Electrical Center (BEC)

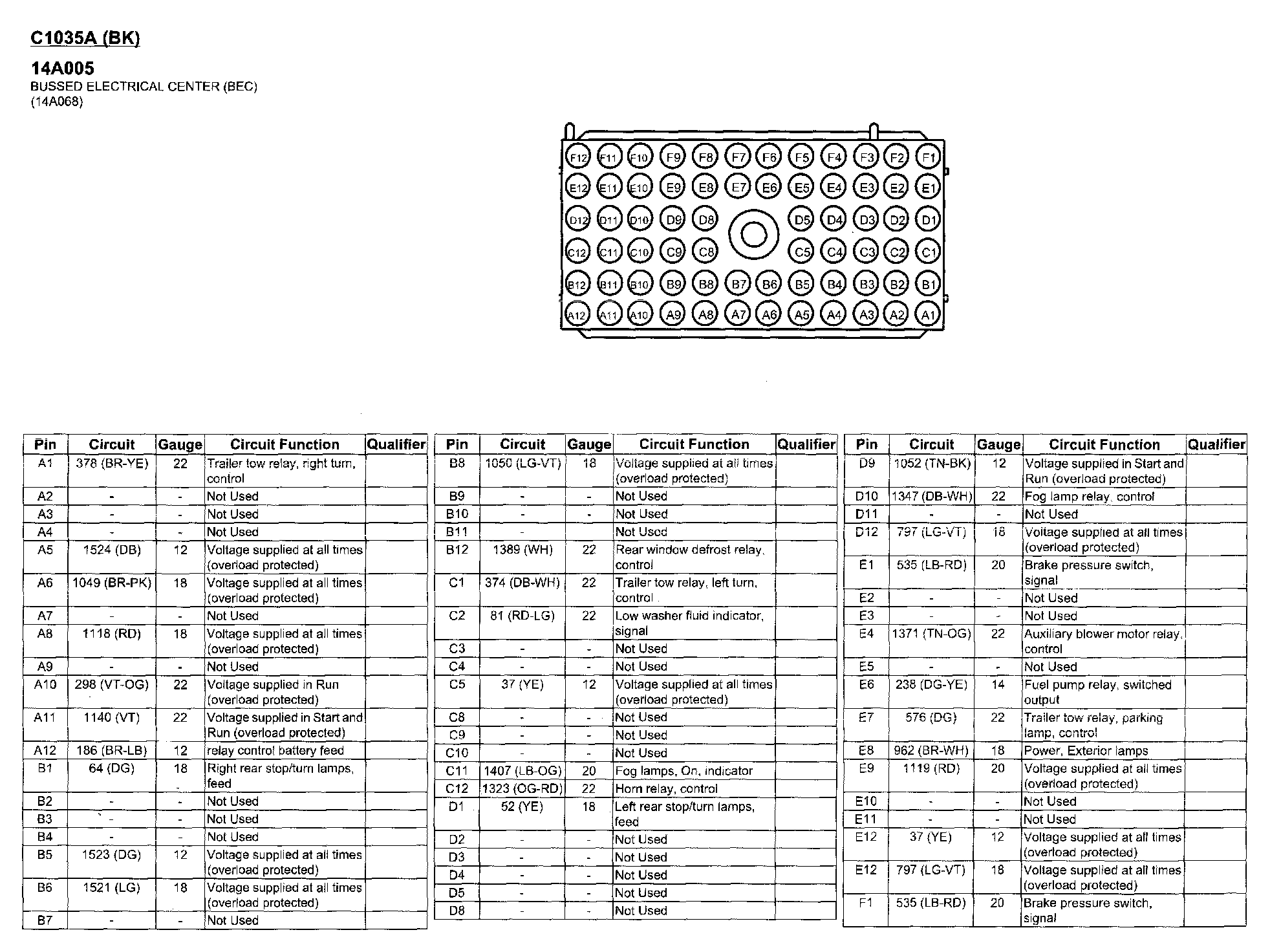

C1035A (Part 1):

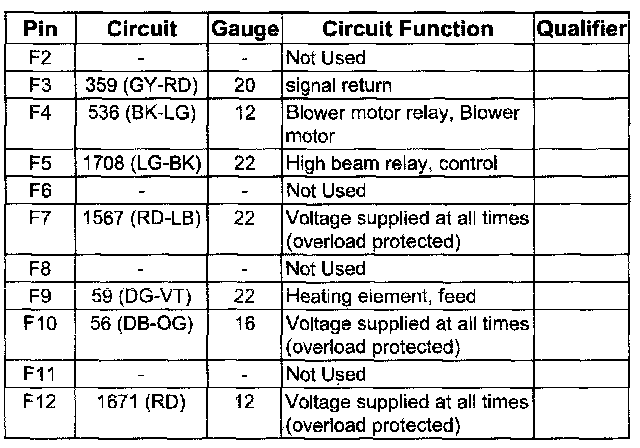

C1035A (Part 2):

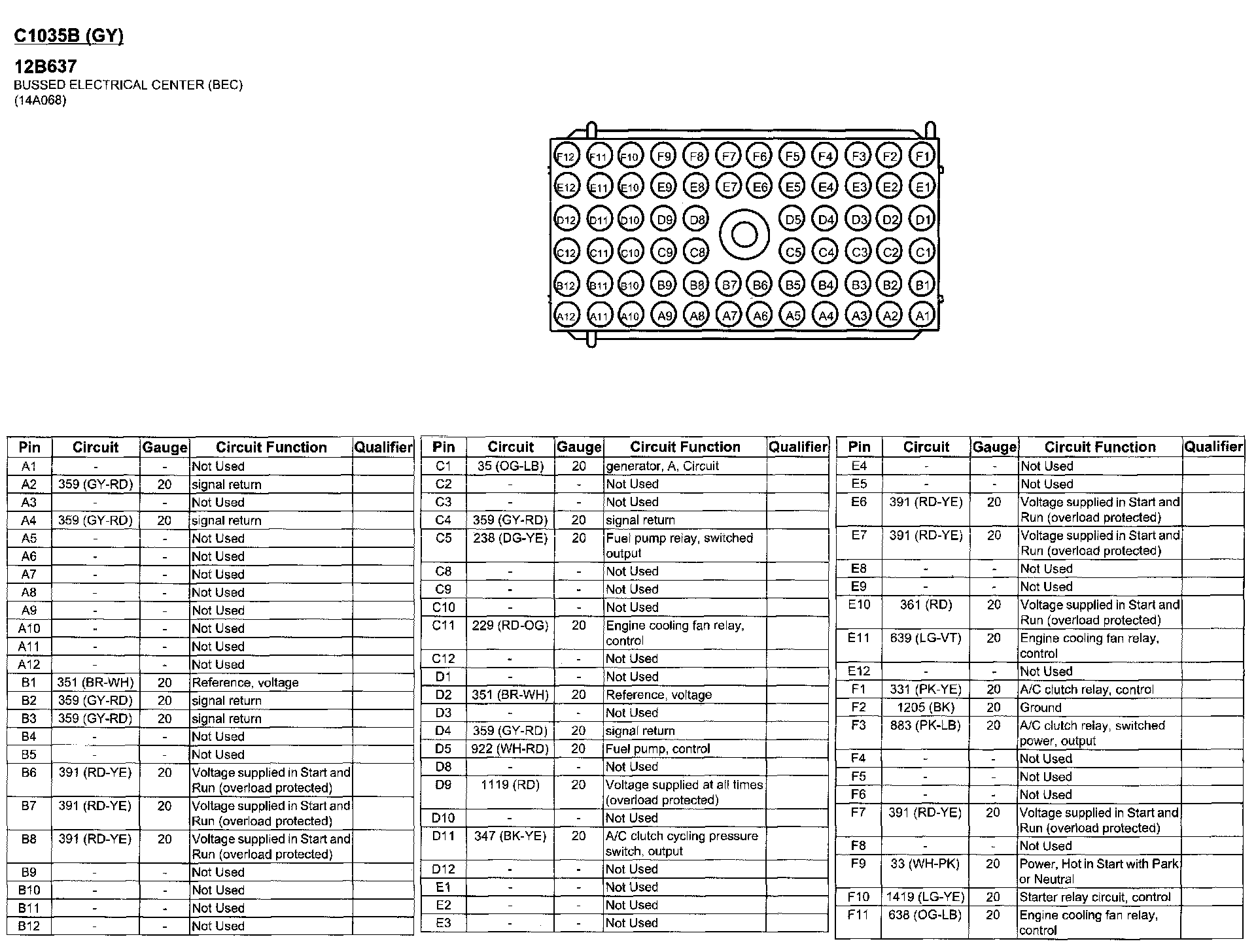

C1035B (Part 1):

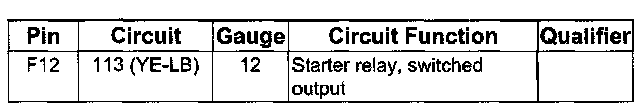

C1035B (Part 2):

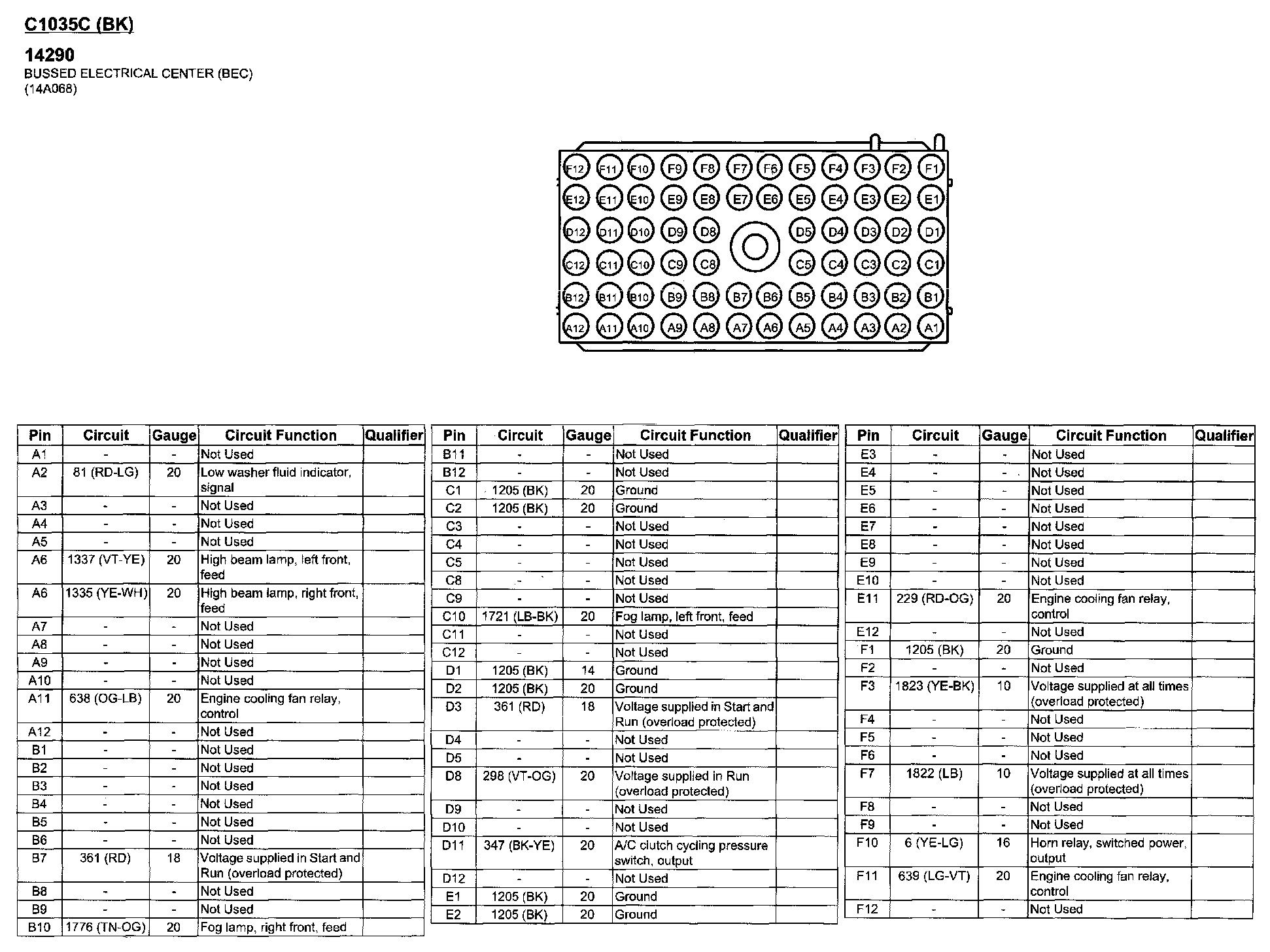

C1035C:

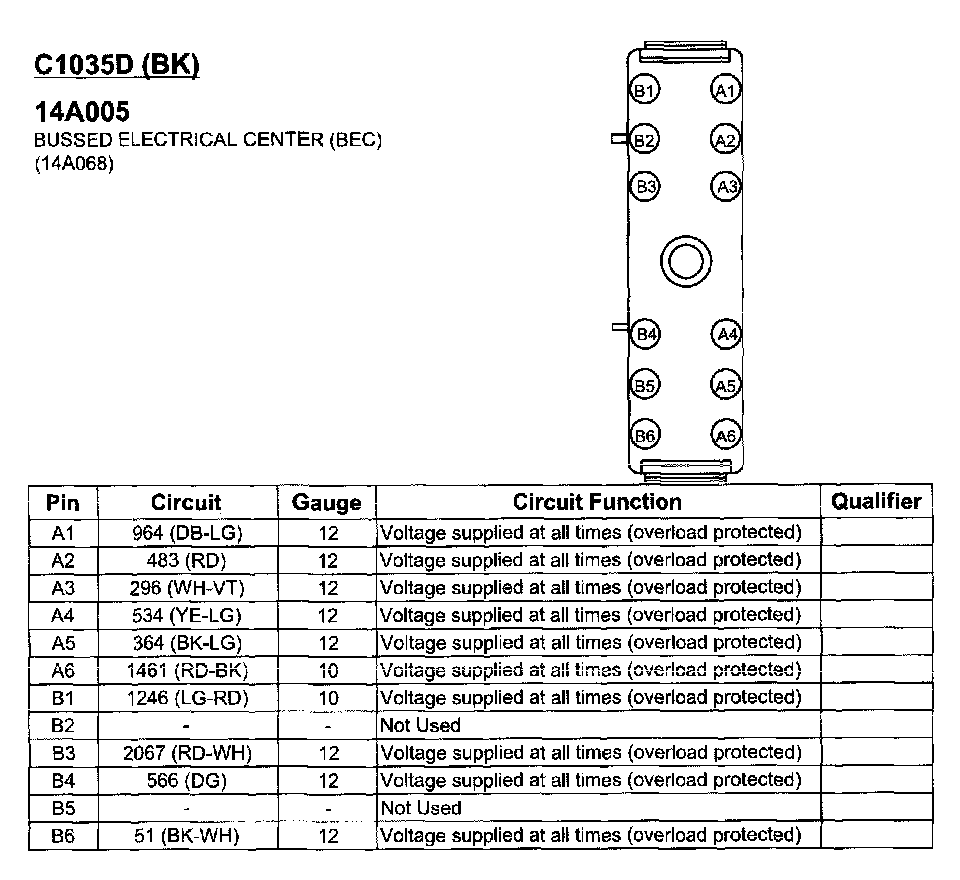

C1035D:

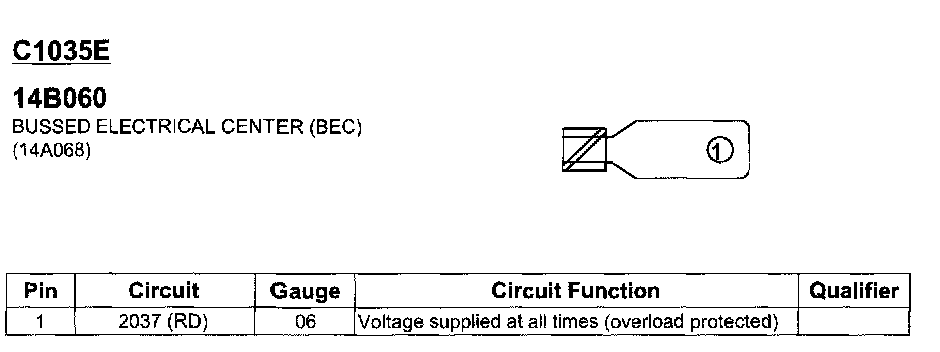

C1035E:
