Inline Connectors

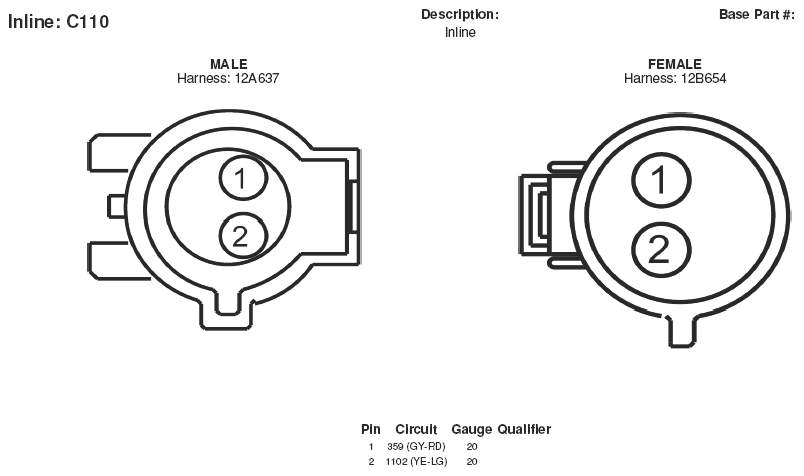

Fig 1: Inline Connector End View (C110)

G05166634

Courtesy of FORD MOTOR CO.

Fig 2: Inline Connector End View (C133)

G05166650

Courtesy of FORD MOTOR CO.

Fig 3: Inline Connector End View (C134)

G05166651

Courtesy of FORD MOTOR CO.

Fig 4: Inline Connector End View (C139)

G05166653

Courtesy of FORD MOTOR CO.

Fig 5: Inline Connector End View (C140)

G05166654

Courtesy of FORD MOTOR CO.

Fig 6: Inline Connector End View (C144)

G05166658

Courtesy of FORD MOTOR CO.

Fig 7: Inline Connector End View (C145)

G05166659

Courtesy of FORD MOTOR CO.

Fig 8: Inline Connector End View (C146)

G05166660

Courtesy of FORD MOTOR CO.

Fig 9: Inline Connector End View (C192)

G05166688

Courtesy of FORD MOTOR CO.

Fig 10: Inline Connector End View (C210)

G05166697

Courtesy of FORD MOTOR CO.

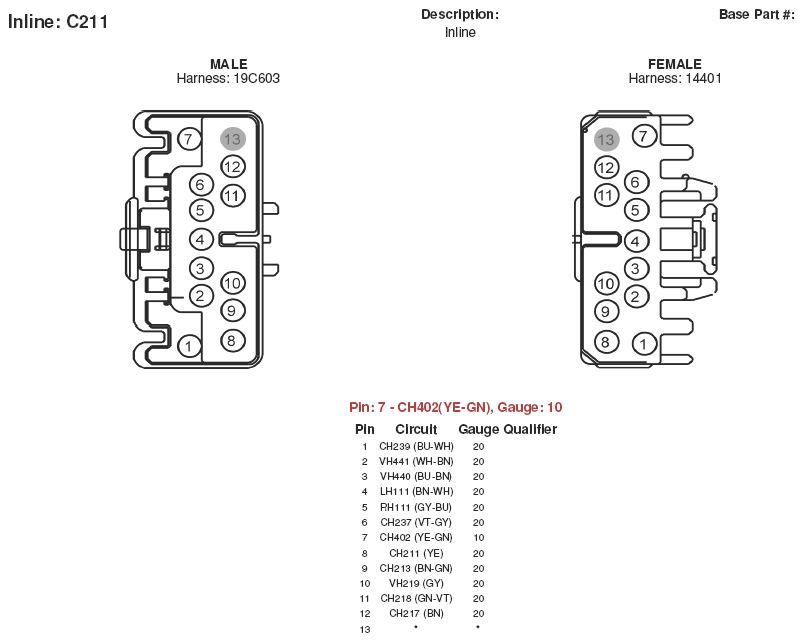

Fig 11: Inline Connector End View (C211)

G05166698

Courtesy of FORD MOTOR CO.

Fig 12: Inline Connector End View (C212)

G05166699

Courtesy of FORD MOTOR CO.

Fig 13: Inline Connector End View (C213)

G05166700

Courtesy of FORD MOTOR CO.

Fig 14: Inline Connector End View (C214)

G05166701

Courtesy of FORD MOTOR CO.

Fig 15: Inline Connector End View (C215)

G05166702

Courtesy of FORD MOTOR CO.

Fig 16: Inline Connector End View (C219)

G05166708

Courtesy of FORD MOTOR CO.

Fig 17: Inline Connector End View (C237)

G05166714

Courtesy of FORD MOTOR CO.

Fig 18: Inline Connector End View (C238)

G05166715

Courtesy of FORD MOTOR CO.

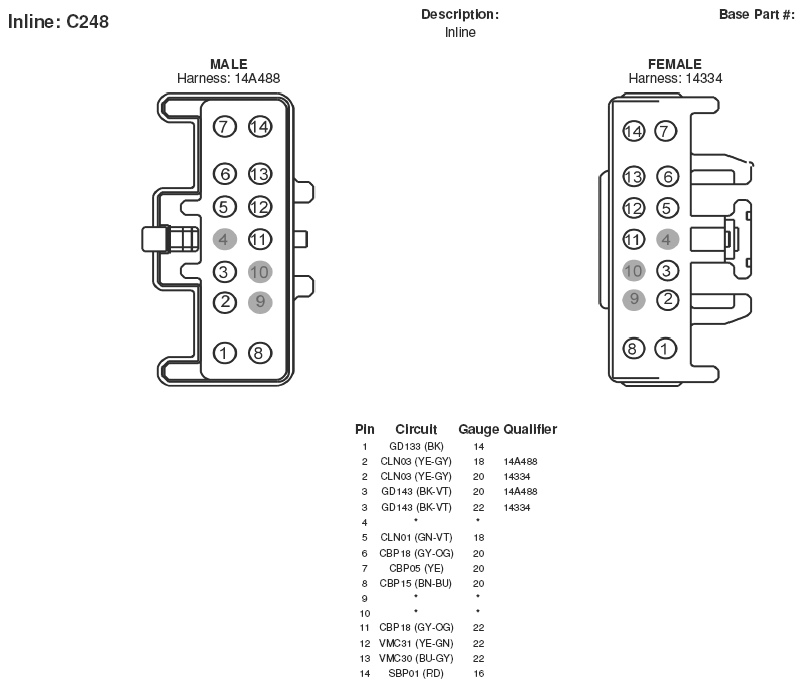

Fig 19: Inline Connector End View (C248)

G05166717

Courtesy of FORD MOTOR CO.

Fig 20: Inline Connector End View (C311)

G05166742

Courtesy of FORD MOTOR CO.

Fig 21: Inline Connector End View (C312)

G05166743

Courtesy of FORD MOTOR CO.

Fig 22: Inline Connector End View (C313)

G05166744

Courtesy of FORD MOTOR CO.

Fig 23: Inline Connector End View (C314)

G05166745

Courtesy of FORD MOTOR CO.

Fig 24: Inline Connector End View (C315)

G05166746

Courtesy of FORD MOTOR CO.

Fig 25: Inline Connector End View (C327)

G05166748

Courtesy of FORD MOTOR CO.

Fig 26: Inline Connector End View (C328)

G05166749

Courtesy of FORD MOTOR CO.

Fig 27: Inline Connector End View (C339)

G05166753

Courtesy of FORD MOTOR CO.

Fig 28: Inline Connector End View (C340)

G05166754

Courtesy of FORD MOTOR CO.

Fig 29: Inline Connector End View (C405)

G05166770

Courtesy of FORD MOTOR CO.

Fig 30: Inline Connector End View (C406)

G05166771

Courtesy of FORD MOTOR CO.

Fig 31: Inline Connector End View (C408)

G05166772

Courtesy of FORD MOTOR CO.

Fig 32: Inline Connector End View (C410)

G05166773

Courtesy of FORD MOTOR CO.

Fig 33: Inline Connector End View (C411)

G05166774

Courtesy of FORD MOTOR CO.

Fig 34: Inline Connector End View (C421)

G05166781

Courtesy of FORD MOTOR CO.

Fig 35: Inline Connector End View (C422)

G05166782

Courtesy of FORD MOTOR CO.

Fig 36: Inline Connector End View (C423)

G05166783

Courtesy of FORD MOTOR CO.

Fig 37: Inline Connector End View (C431)

G05166785

Courtesy of FORD MOTOR CO.

Fig 38: Inline Connector End View (C432)

G05166786

Courtesy of FORD MOTOR CO.

Fig 39: Inline Connector End View (C438)

G05166790

Courtesy of FORD MOTOR CO.

Fig 40: Inline Connector End View (C465)

G05166800

Courtesy of FORD MOTOR CO.

Fig 41: Inline Connector End View (C494)

G05166808

Courtesy of FORD MOTOR CO.

Fig 42: Inline Connector End View (C495)

G05166809

Courtesy of FORD MOTOR CO.

Fig 43: Inline Connector End View (C510)

G05166814

Courtesy of FORD MOTOR CO.

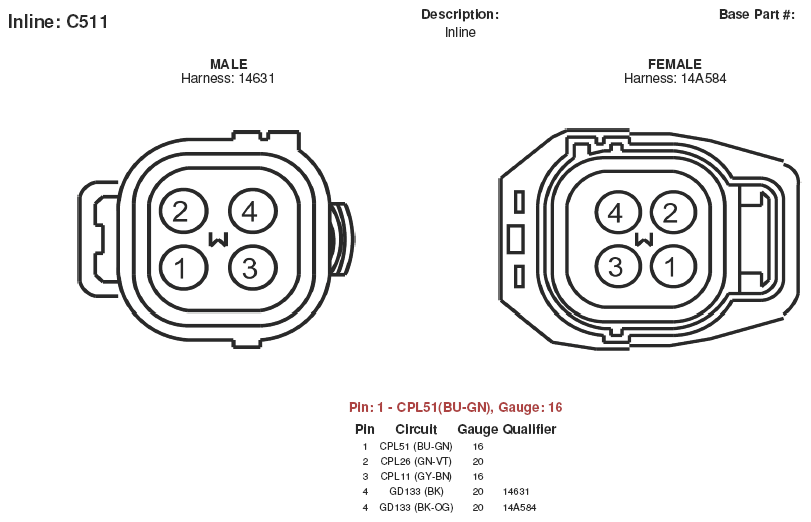

Fig 44: Inline Connector End View (C511)

G05166815

Courtesy of FORD MOTOR CO.

Fig 45: Inline Connector End View (C610)

G05166830

Courtesy of FORD MOTOR CO.

Fig 46: Inline Connector End View (C700)

G05166834

Courtesy of FORD MOTOR CO.

Fig 47: Inline Connector End View (C800)

G05166840

Courtesy of FORD MOTOR CO.

Fig 48: Inline Connector End View (C913)

G05166852

Courtesy of FORD MOTOR CO.

Fig 49: Inline Connector End View (C925)

G05166854

Courtesy of FORD MOTOR CO.

Fig 50: Inline Connector End View (C3007)

G05166928

Courtesy of FORD MOTOR CO.

Fig 51: Inline Connector End View (C3047)

G05166935

Courtesy of FORD MOTOR CO.

Fig 52: Inline Connector End View (C3049)

G05166936

Courtesy of FORD MOTOR CO.

Fig 53: Inline Connector End View (C3050)

G05166937

Courtesy of FORD MOTOR CO.

Fig 54: Inline Connector End View (C4000)

G05166957

Courtesy of FORD MOTOR CO.
