Pinpoint Test G: DTC C1266 Anti-Lock Brake System (ABS) Power Valve Relay Circuit Failure

Fig 1: Pinpoint Test G: DTC C1266 Anti-Lock Brake System (ABS) Power Valve Relay Circuit Failure (G1-G2)
G01362893Courtesy of FORD MOTOR CO.

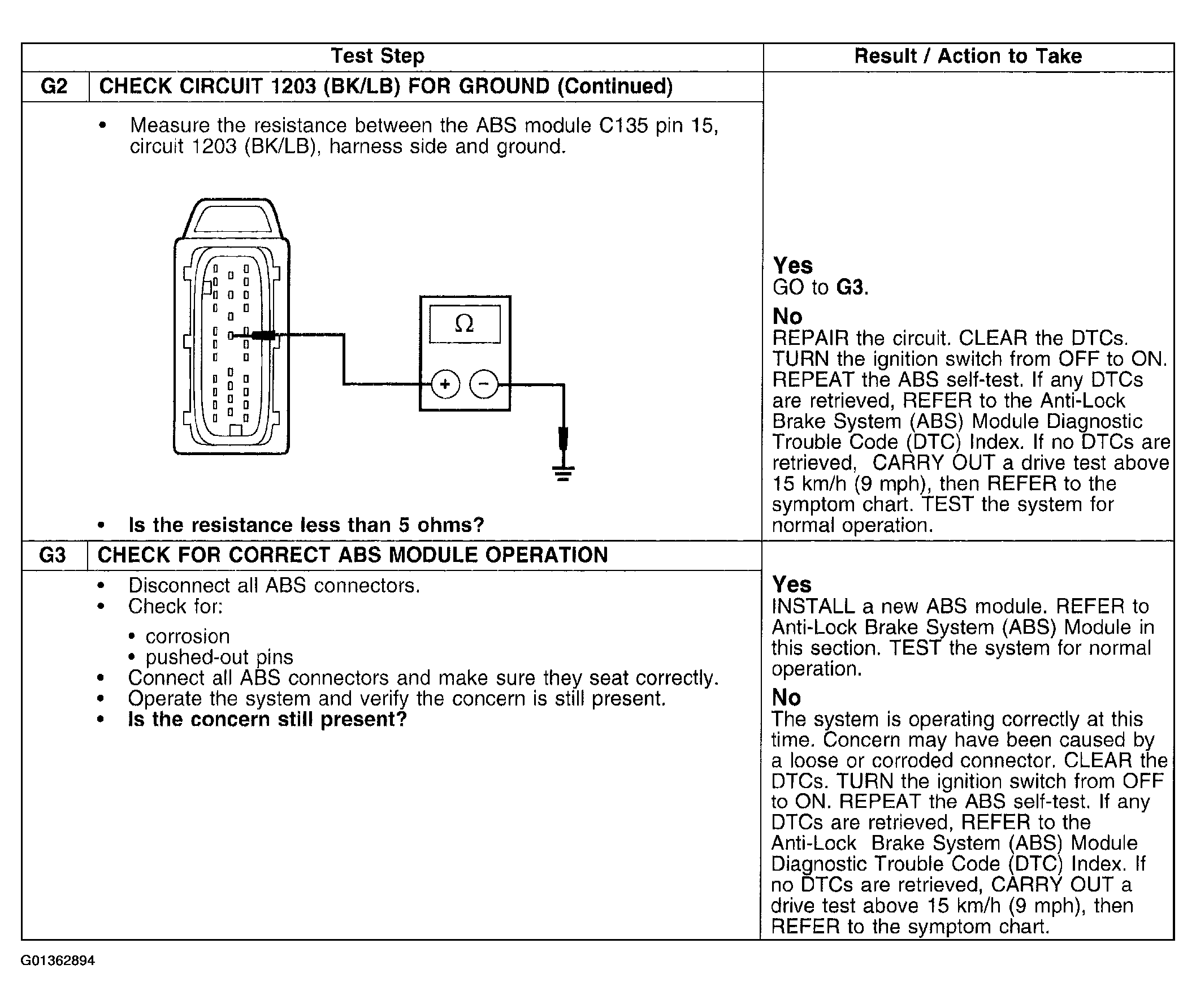

Fig 2: Pinpoint Test G: DTC C1266 Anti-Lock Brake System (ABS) Power Valve Relay Circuit Failure (G2-G3)
G01362894Courtesy of FORD MOTOR CO.
