Air Cleaner Housing: Service and Repair

REMOVAL







1. Remove the tube from the Mass Air Flow (MAF) sensor.







2. Disconnect the MAF sensor electrical connector.

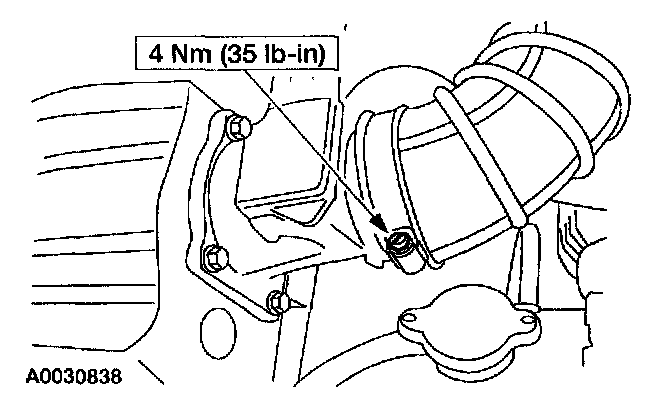

3. Remove the ACL assembly.

NOTE: Pry the engine Air Cleaner (ACL) from the base.


INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Clean the engine air cleaner with a dry, clean cloth.
