Fuse HEADLAMPS

Fuse HEADLAMPS - protects the following circuits:
^ Headlamps

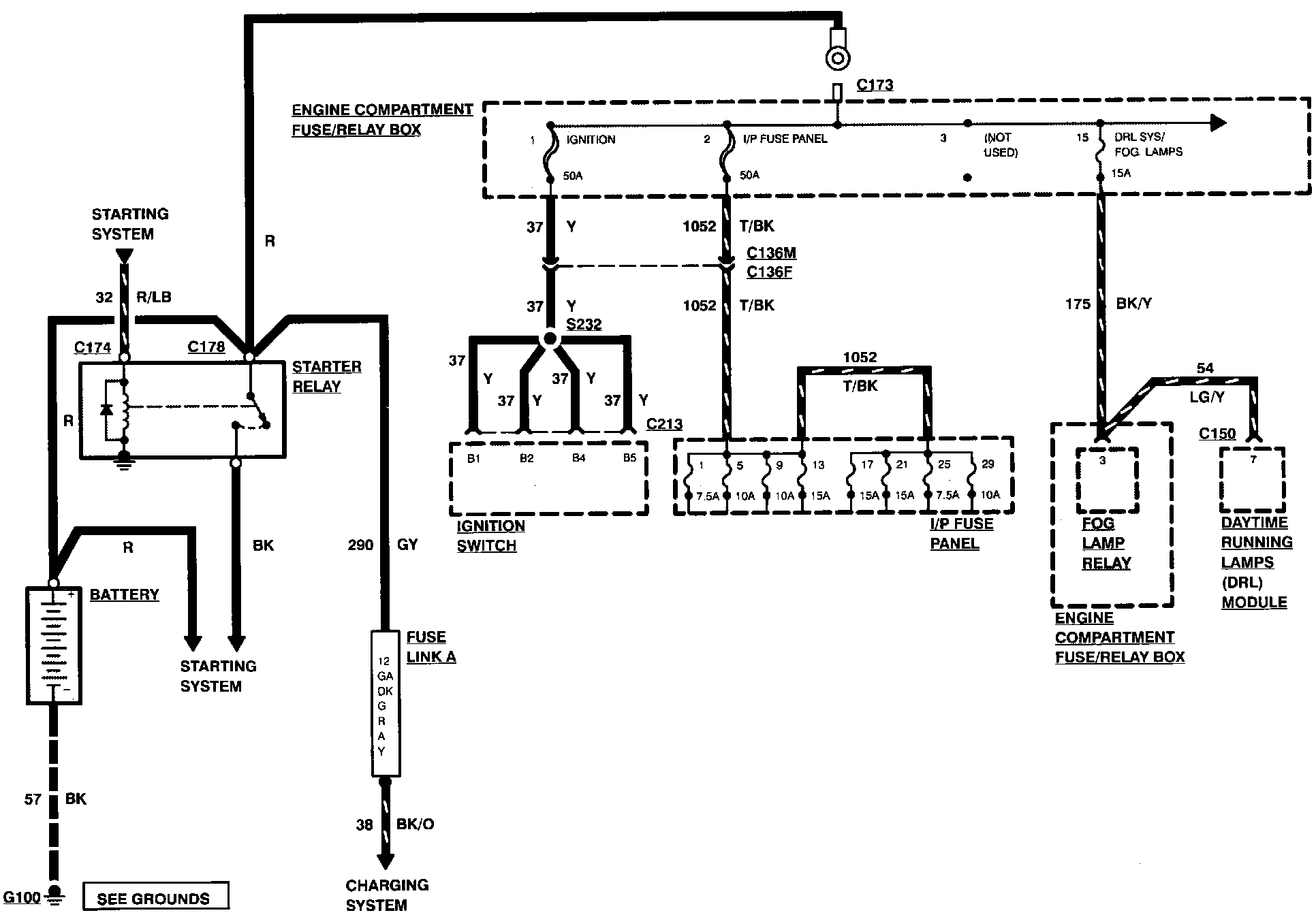

Power Distribution:

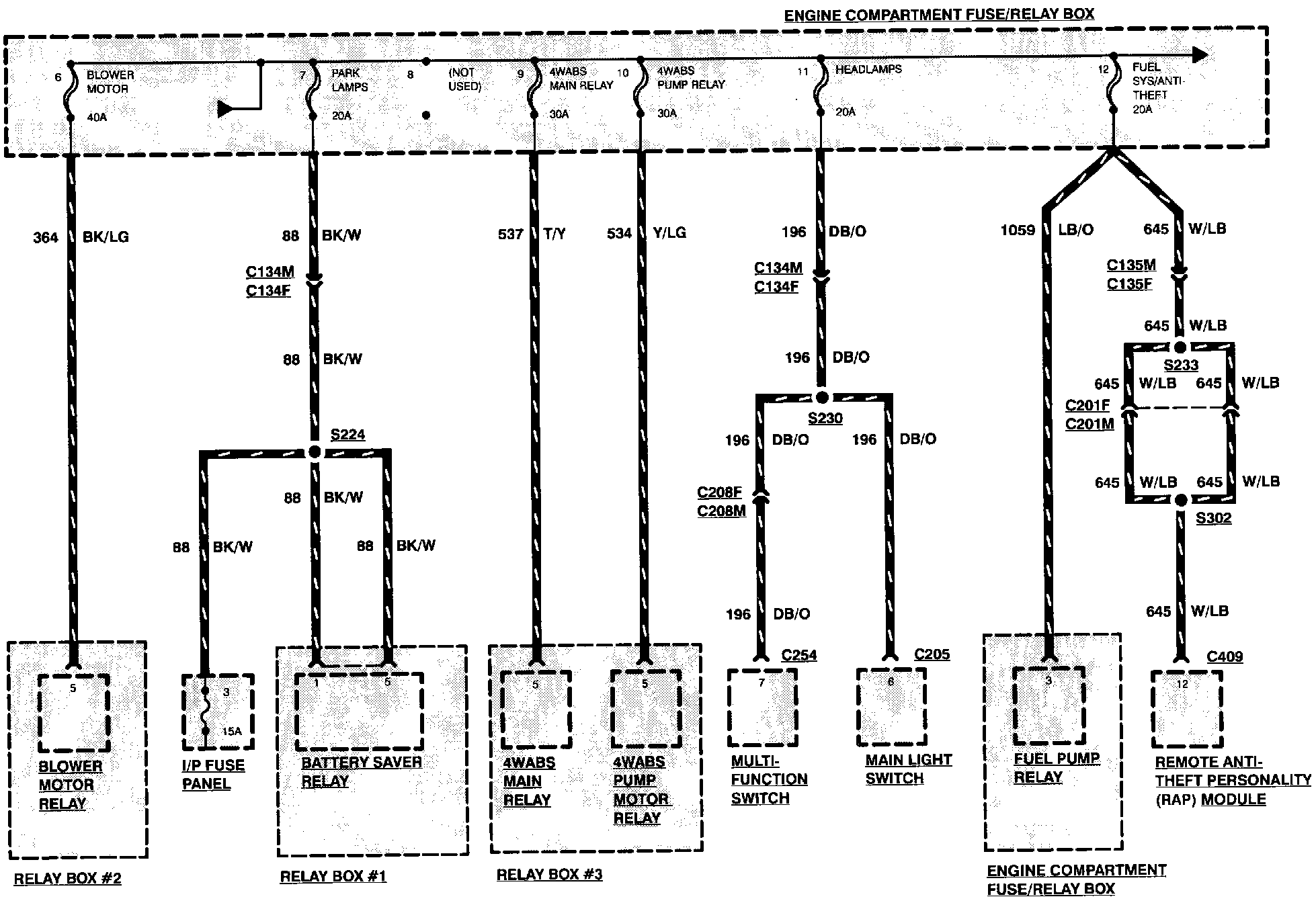

Power Distribution:




Power Distribution:
