Electrical Diagrams

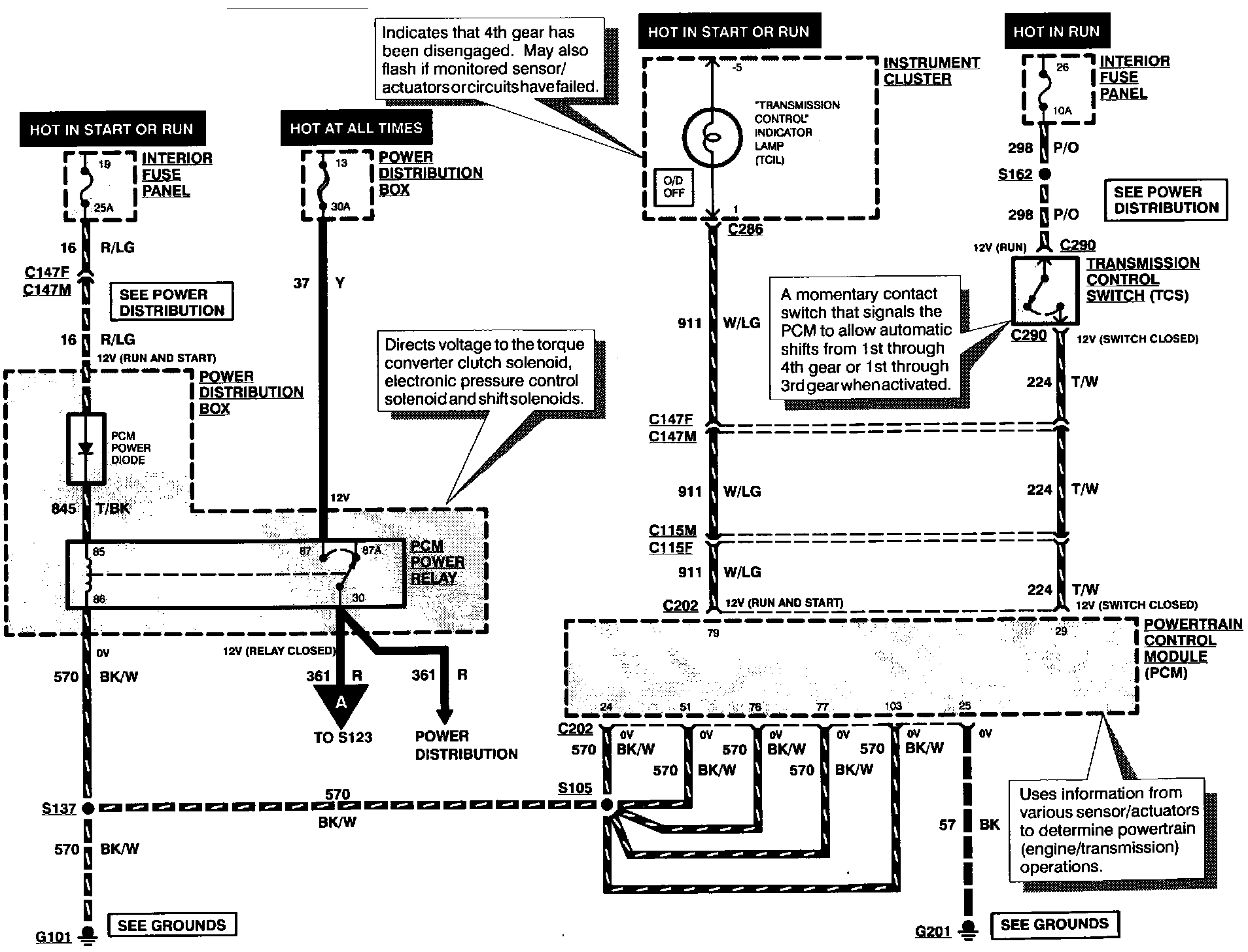

Transmission Controls (4R55E) (Part 1 Of 3):

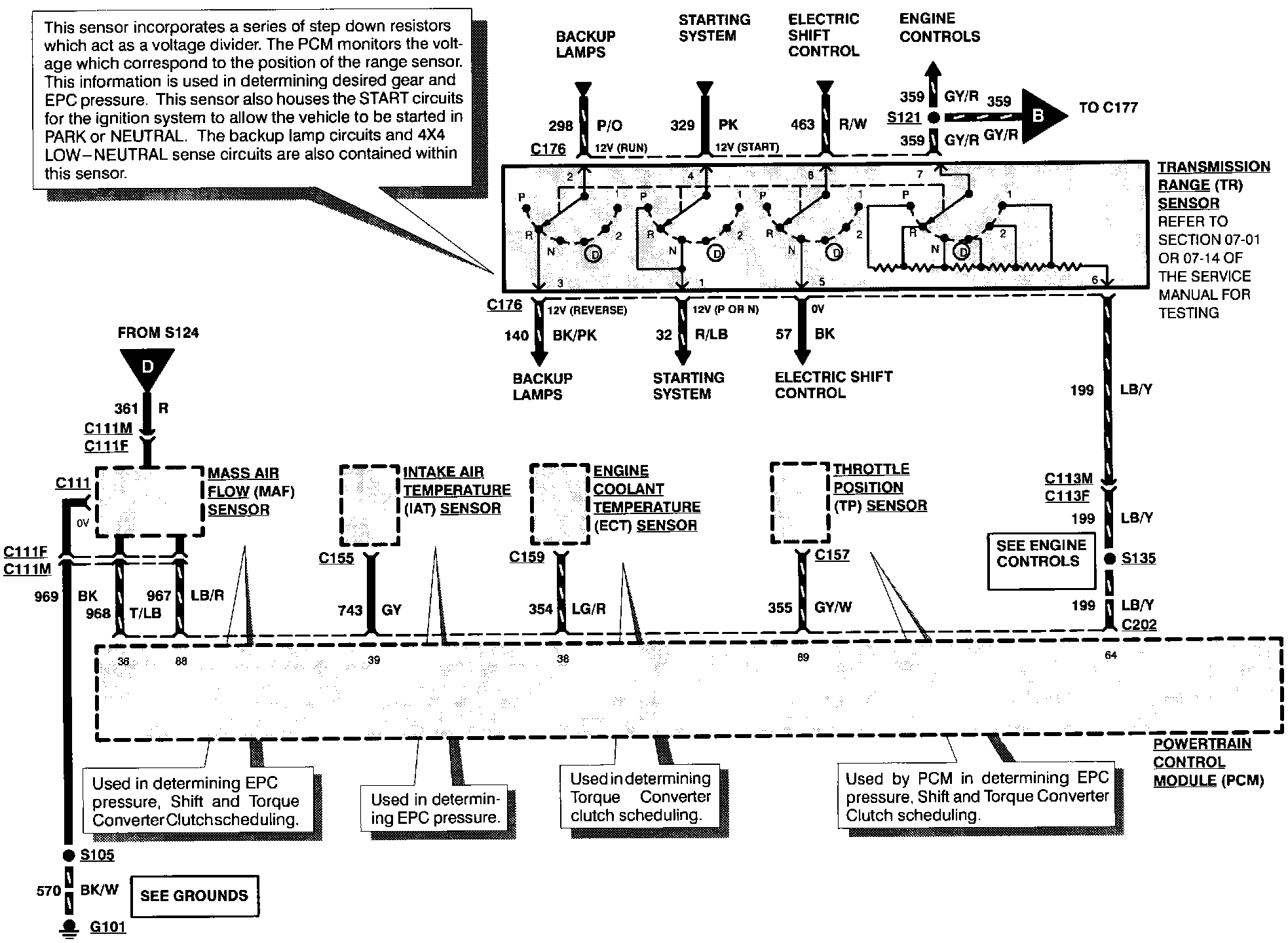

Transmission Controls (4R55E) (Part 2 Of 3):

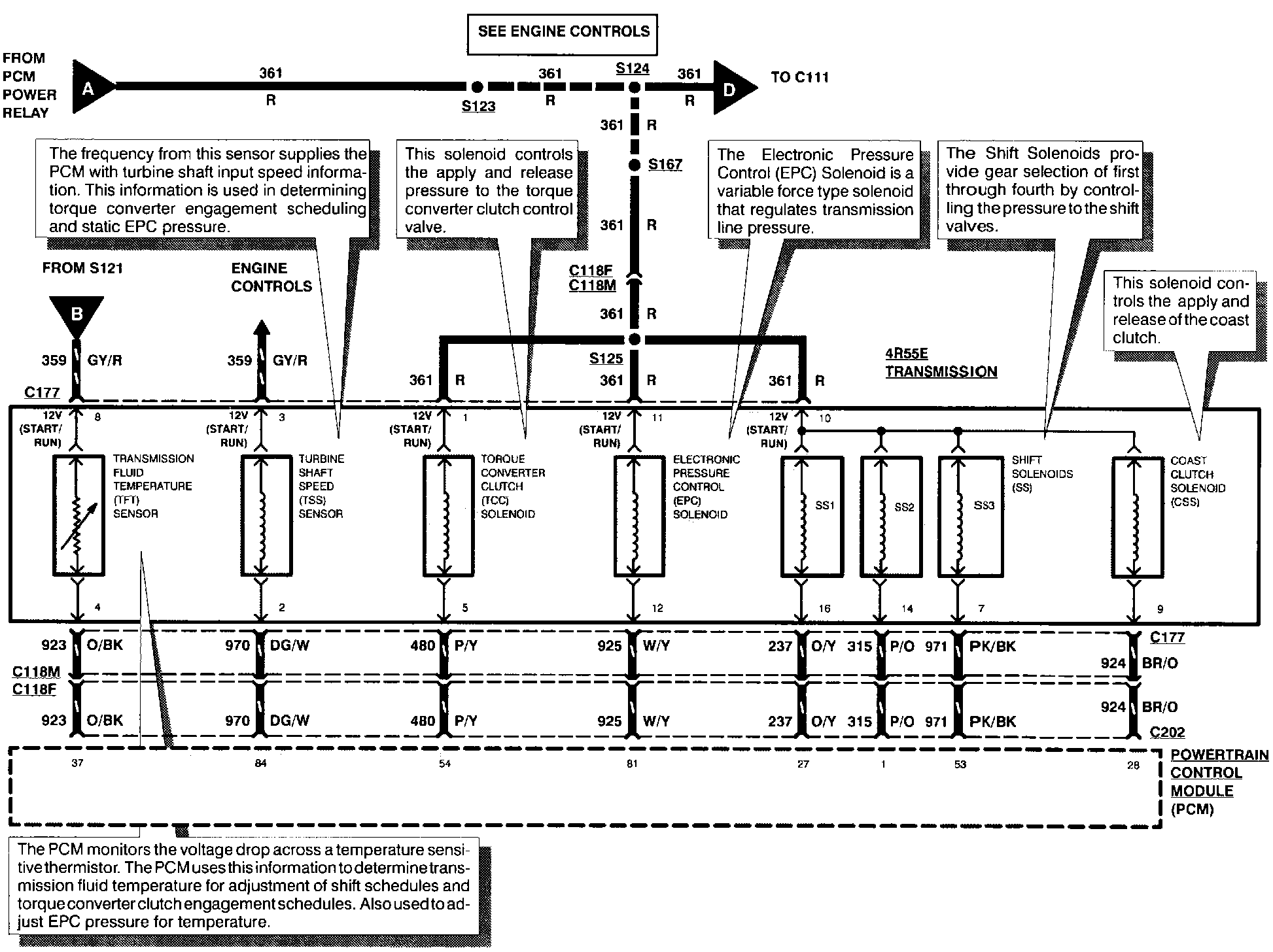

Transmission Controls (4R55E) (Part 3 Of 3):
