SENSOR, Knock: Installation: 4.0L

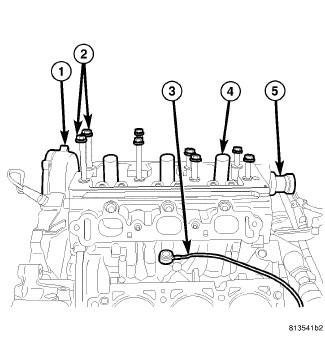

Fig 1: RIGHT CYLINDER HEAD
GC0081687Courtesy of CHRYSLER LLC
  1. Position sensor (3) to engine. Install and tighten mounting bolt to 10 N.M (7 ft. lbs.). Note foam strip on bolt threads. This foam is used only to retain the bolt to sensor for plant assembly. It is not used as a sealant. Do not apply any adhesive, sealant or thread locking compound to this bolt.

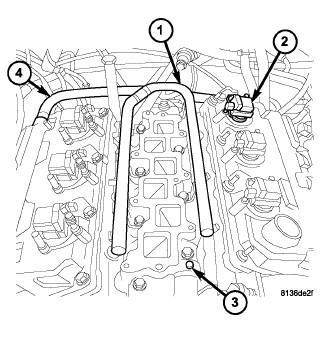

    Fig 2: FUEL RAIL AND LOWER INTAKE MANIFOLD
    GC0095476Courtesy of CHRYSLER LLC
  2. Install lower intake manifold (3) and fuel rail (1). Refer to Engine/Manifolds/MANIFOLD, Intake - Installation .

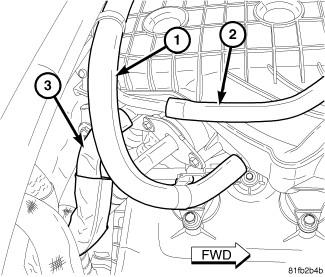

    Fig 3: Hoses
    GC0127935Courtesy of CHRYSLER LLC
  3. Install the upper intake manifold, EGR tube, PCV, Purge and power brake booster vacuum hoses. Refer to Engine/Manifolds/MANIFOLD, Intake - Installation .
  4. Fill the coolant system. Refer to Cooling - Standard Procedure .
  5. Connect the negative battery cable. Tighten nut to 4.5 N.M (40 in. lbs.).
