Sensor-Mass Air Flow: Installation

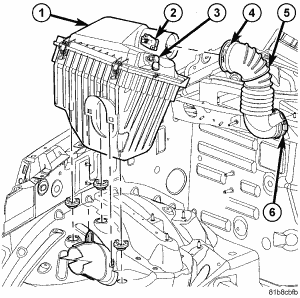

Fig 1: Removing/Installing Intake Air Pressure & Mass Air Flow Sensor
GC0062767Courtesy of CHRYSLER LLC
  1. Check condition of sensor O-ring.
  2. Position MAF sensor (2) into top of air cleaner cover (1) with a slight twisting action.
  3. Install mounting screws.
  4. Install MAF electrical connector.
