Dr-17: Purge Solenoid

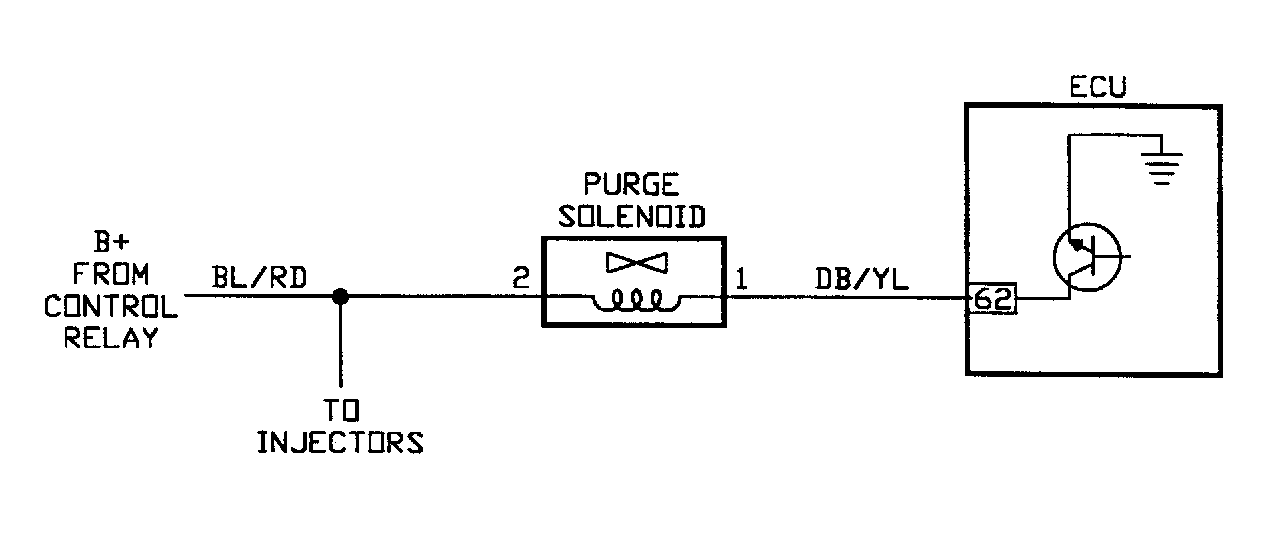

Fig 1: Circuit Diagram DR-17 (1.8L)

G90G20160

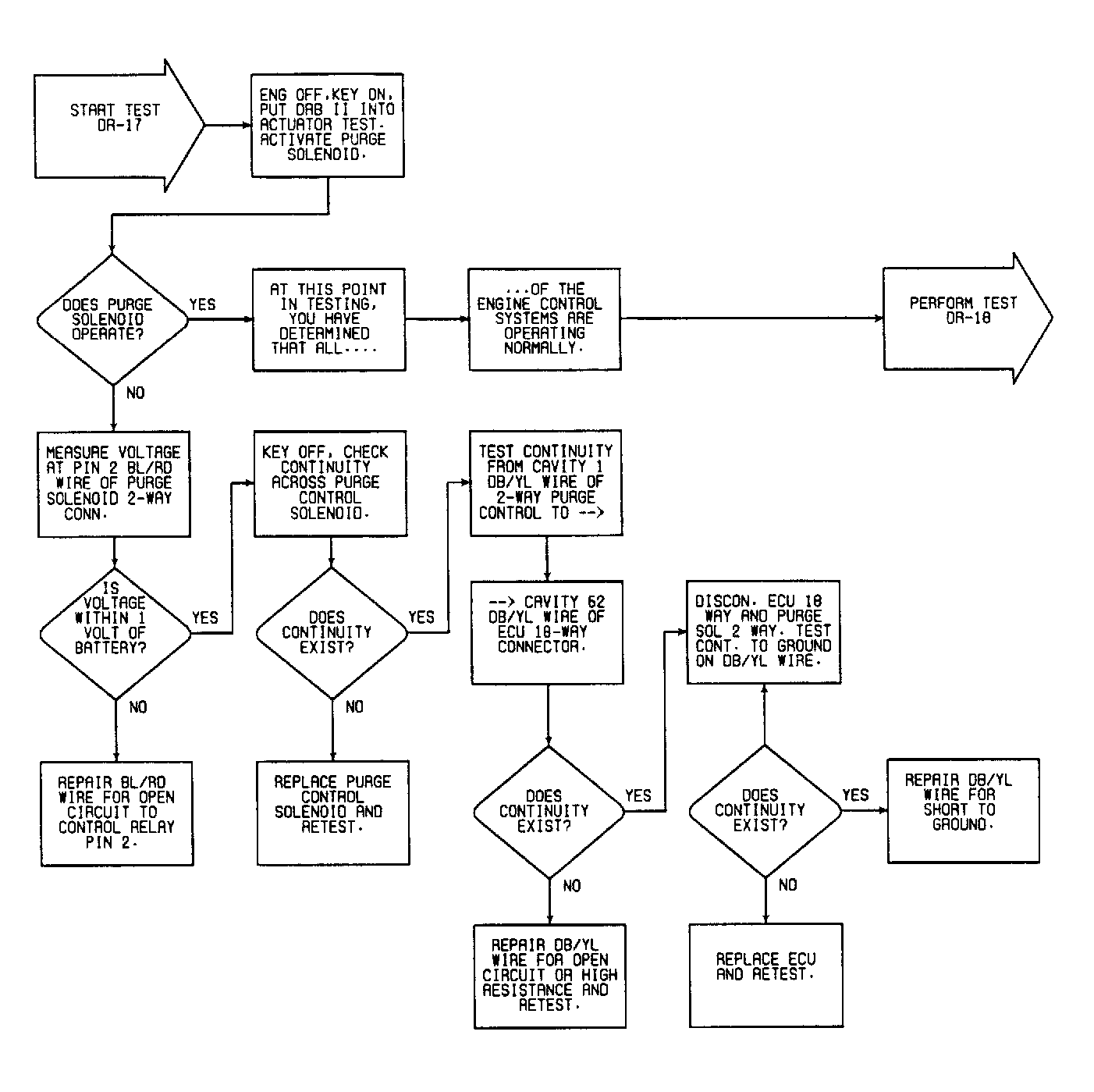

Fig 2: Flow Chart DR-17 (1.8L)

G90B11453
