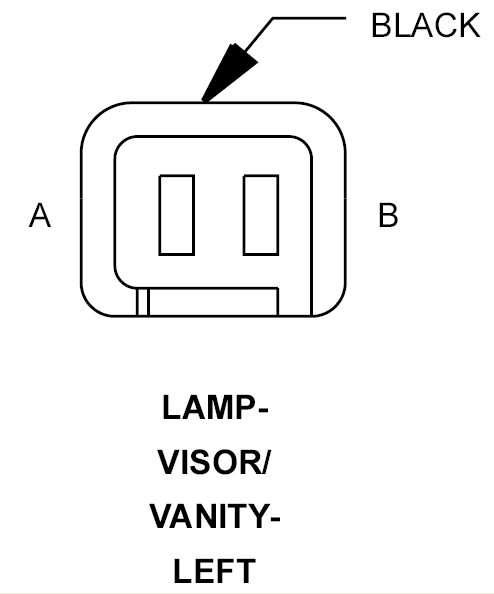

Left Visor Lamp/Vanity Lamp Connector End View
Left Visor Lamp/Vanity Lamp Connector End View
LAMP-VISOR/VANITY-LEFT - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
A
M27 18YL/LB
RAIL LAMPS DRIVER
B
Z327 18BK/WT
GROUND
