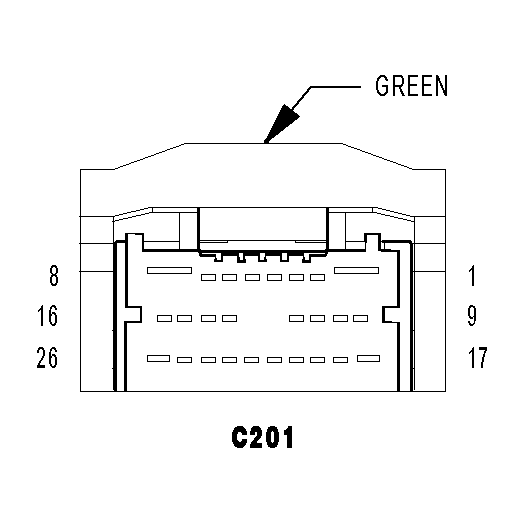

Body Side Inline Connector End View (C201)
C201 - GREEN (BODY SIDE)
| CAV | CIRCUIT |
| 1 | - |
| 2 | E12 20OR/GY |
| 3 | X304 18DG/BR |
| 4 | X394 18YL/GY |
| 5 | X202 18DG/VT (LHD) |
| 5 | X201 18GY/VT (RHD) |
| 6 | X292 18DG/YL (LHD) |
| 6 | X291 18GY/YL (RHD) |
| 7 | C115 20DB |
| 8 | - |
| 9 | G160 20VT/LG (LHD) |
| 10 | P392 20LG/DB |
| 11 | D54 20WT |
| 12 | D55 20WT/OR |
| 13 | A117 20RD/DG |
| 14 | P303 20TN (LHD) |
| 15 | P31 20TN/YL (LHD EXCEPT LX48 POLICE) |
| 15 | P31 20BK (LX48 POLICE) |
| 16 | A205 16RD/OR |
| 17 | A913 20RD/GY |
| 18 | R58 20LB/GY (LHD) |
| 19 | B29 20DG/WT (POLICE) |
| 20 | D777 20WT/DG (PARKTRONICS) |
| 21 | X777 20DG/GY (PARKTRONICS) |
| 22 | Z171 20GY/BK (PARKTRONICS) |
| 23 | F942 18PK/BK (RHD) |
| 24 | - |
| 25 | G25 20VT/TN (LX49) |
| 26 | F942 18PK/BK (POLICE) |
