Checking Hard Start (Fuel Delivery System)

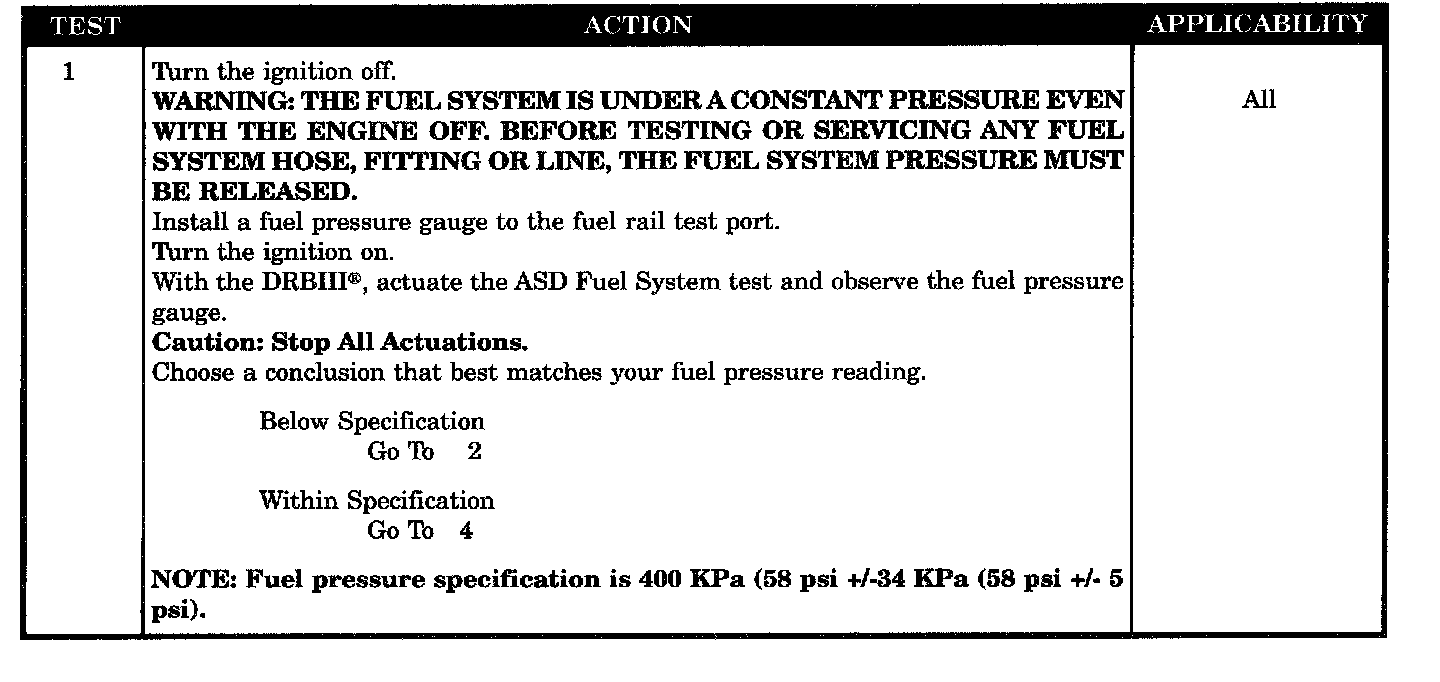

Test 1:

Tests 2 - 4:

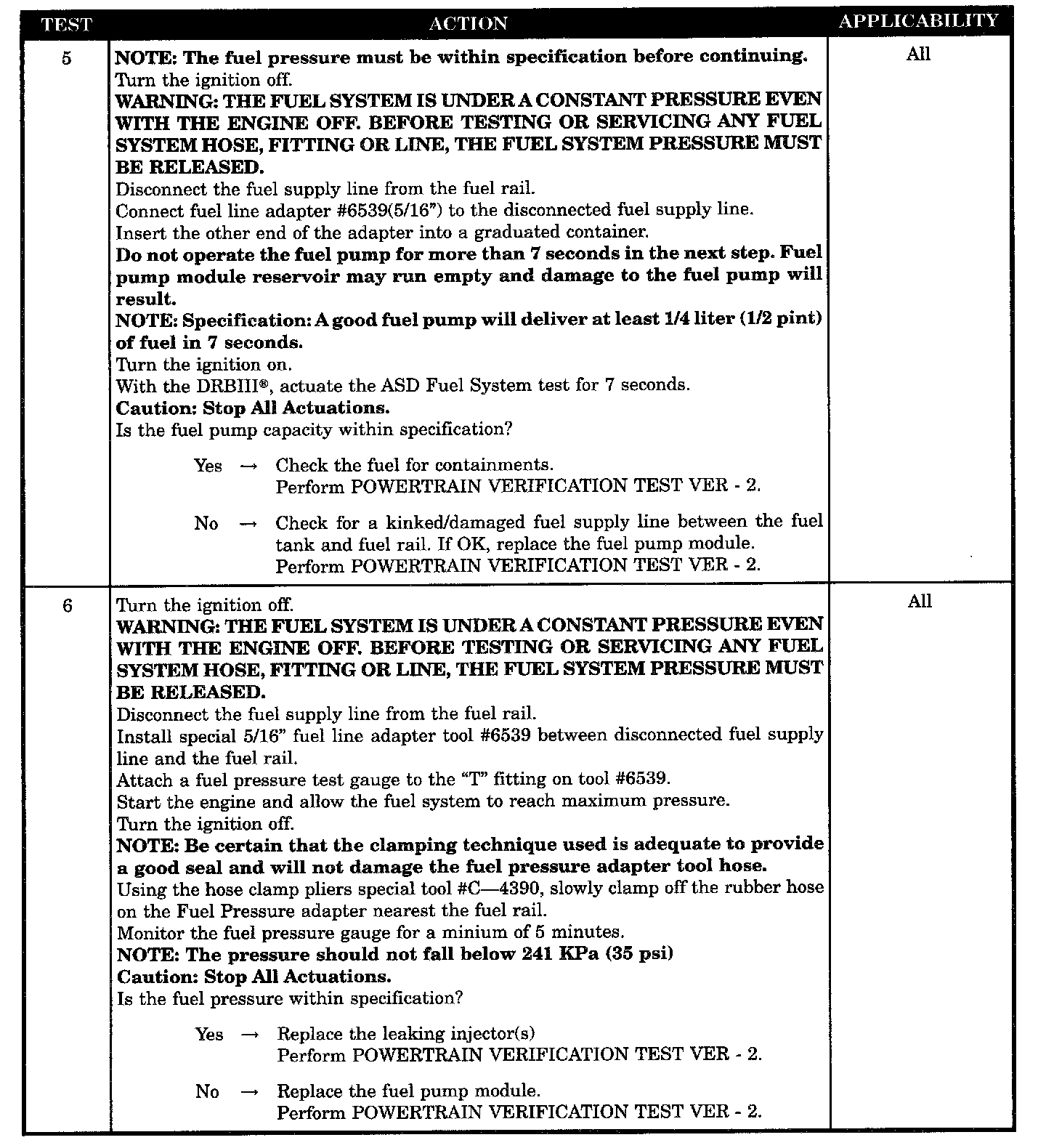

Tests 5 - 6:

SYMPTOM
CHECKING HARD START (FUEL DELIVERY SYSTEM)

WHEN MONITORED

SET CONDITION

POSSIBLE CAUSES
- Fuel pressure out of specs
- Restricted fuel supply line
- Fuel pump module
- Fuel pump inlet strainer plugged
- Internal fuel supply leak
- Fuel pump capacity (volume) out of specs
- Fuel pump module
- Fuel contamination
