SERVICE PUBLICATION UPDATES - APRIL, 2000

TECHNICAL SERVICE BULLETIN

SUBJECT

Service Publication Updates

THIS TECHNICAL SERVICE BULLETIN CONTAINS UPDATED SERVICE AND/OR DIAGNOSTIC MANUAL PAGES. THE UPDATES ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN AND ARE DESCRIBED BELOW. PLEASE INSERT THE PAGES INTO THE APPROPRIATE MANUAL.

2000 Caravan, Voyager, Town & Country Service Manual - Publication Number 81-370-0005

1. PAGES
   8E-30
2. DESCRIPTION OF CHANGES
   Updates to the instrument panel service procedures.
   Fig 1: 2000 NS Service Manual Revision - Page 8E-30


3. PAGES
   21-245
4. DESCRIPTION OF CHANGES
   Updates to the torque Specifications.
   Fig 2: 2000 NS Service Manual Revision - Page 21-245



2000 Neon Service Manual - Publication Number 81-270-0025

1. PAGES
   8W-15-9, 8W-39-5, 8W-80-35
2. DESCRIPTION OF CHANGES
   Updates to the wiring schematics.

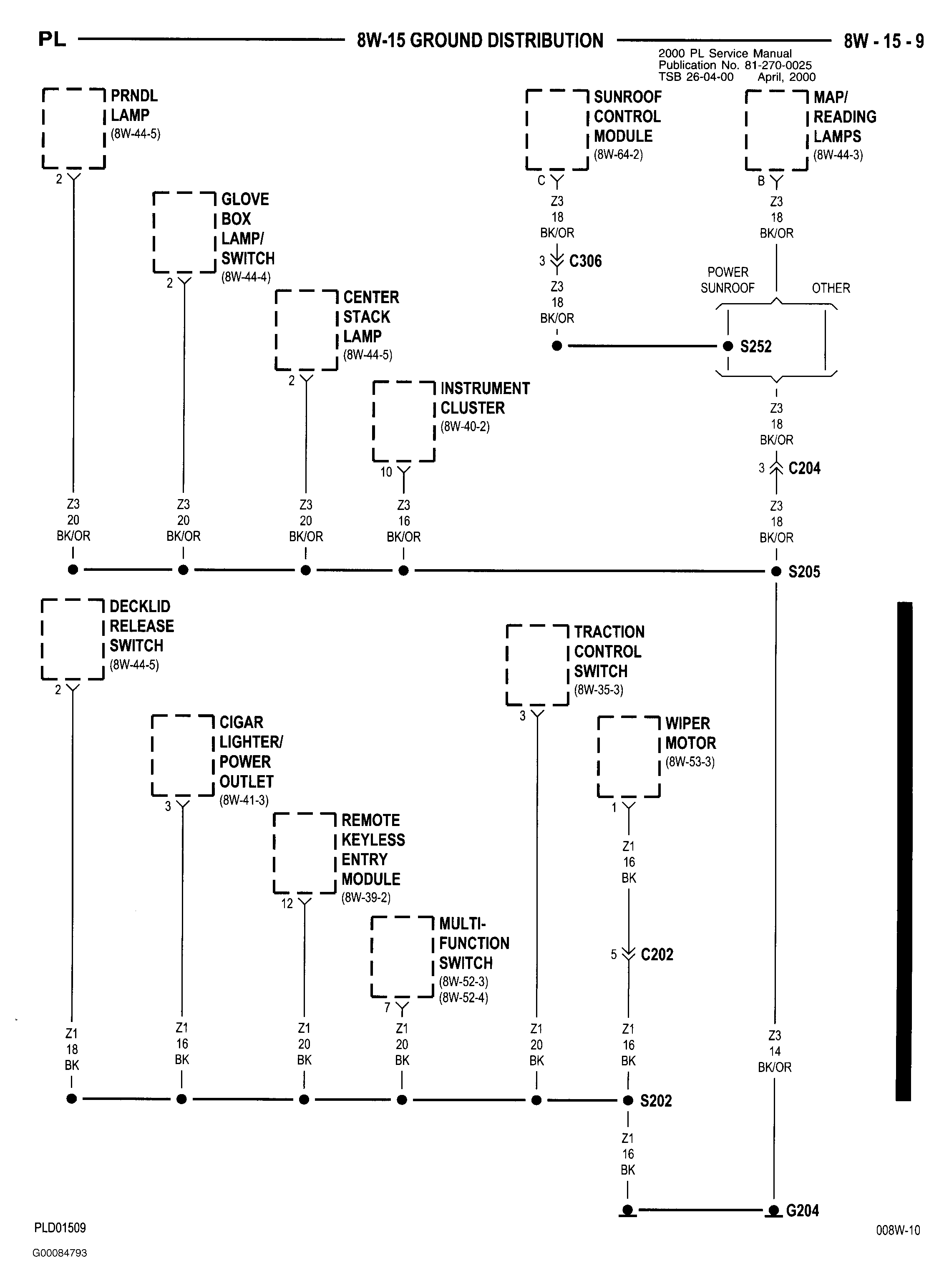

   Fig 3: 2000 PL Service Manual Revision - Page 8W-15-9

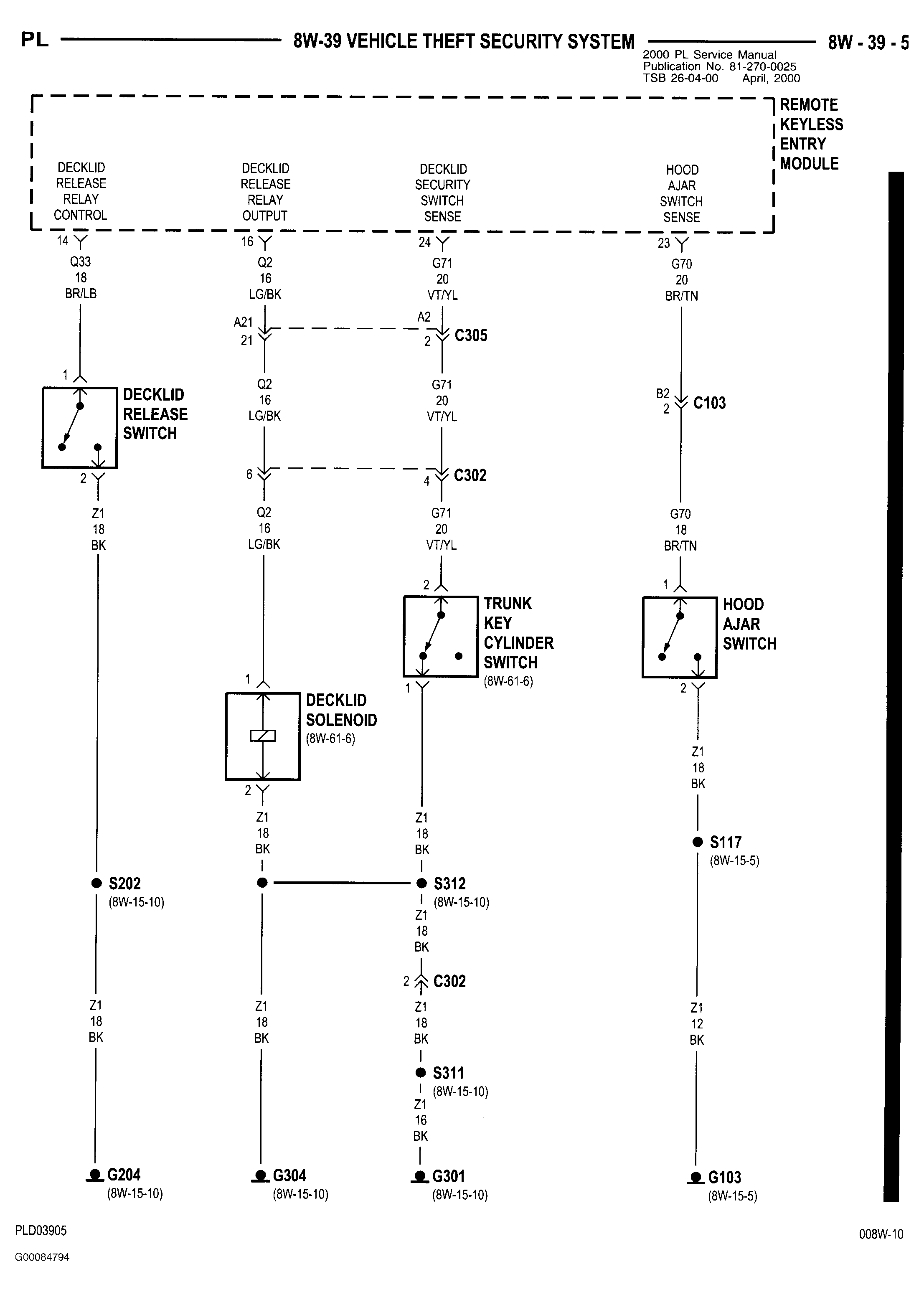

   Fig 4: 2000 PL Service Manual Revision - Page 8W-39-5


   Fig 5: 2000 PL Service Manual Revision - Page 8W-80-35



2000 Concorde, Intrepid, LHS Service Manual - Publication Number 81-270-0040

1. PAGES
   8W-80-39
2. DESCRIPTION OF CHANGES
   Updates to the connector pin-outs.
   Fig 6: 2000 LH Service Manual Revision - Page 8W-80-39



2000 Dakota Service Manual - Publication Number 81-370-0010

1. PAGES
   8W-48-1, 8W-48-2, 8W-48-3
2. DESCRIPTION OF CHANGES
   Updates to the wiring schematics.
   Fig 7: 2000 AN Service Manual Revision - Page 8W-48-1

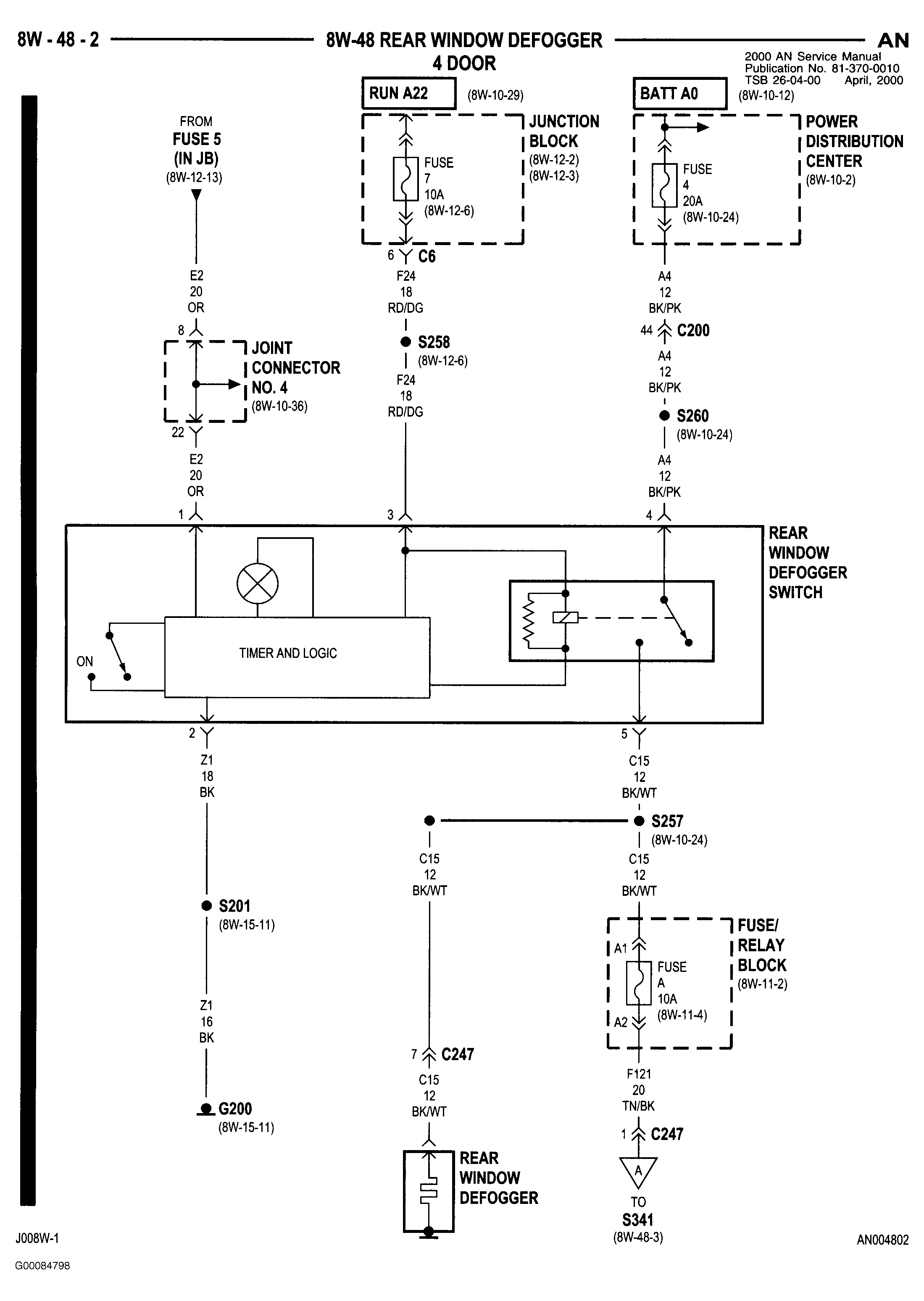

   Fig 8: 2000 AN Service Manual Revision - Page 8W-48-2


   Fig 9: 2000 AN Service Manual Revision - Page 8W-48-3


3. PAGES
   9-85, 9-115, 9-147, 9-199, 9-230, 9-231, 9-258
4. DESCRIPTION OF CHANGES
   Updates to the engine support & crossmember torque specifications.

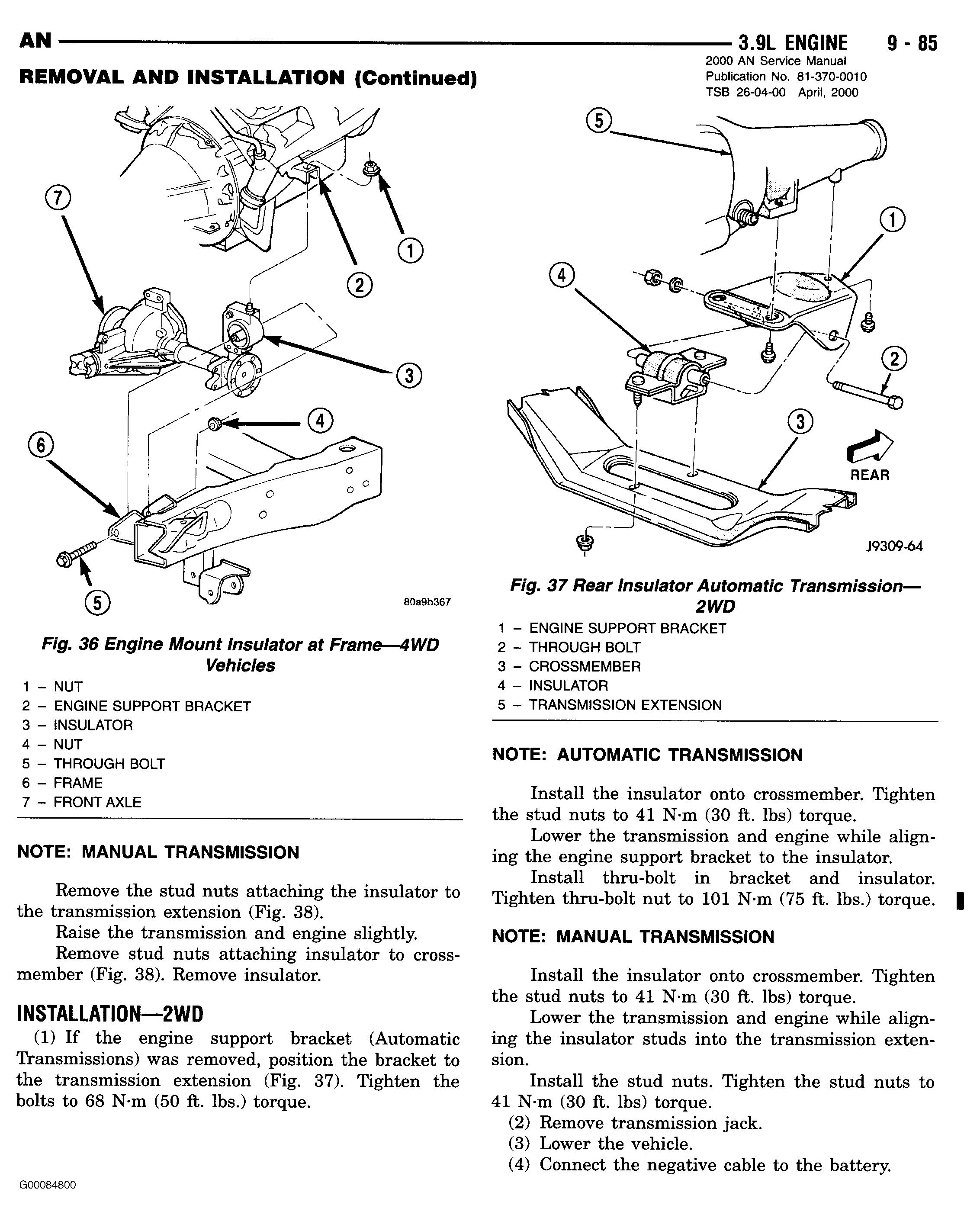

   Fig 10: 2000 AN Service Manual Revision - Page 9-85


   Fig 11: 2000 AN Service Manual Revision - Page 9-115


   Fig 12: 2000 AN Service Manual Revision - Page 9-147


   Fig 13: 2000 AN Service Manual Revision - Page 9-199


   Fig 14: 2000 AN Service Manual Revision - Page 9-230


   Fig 15: 2000 AN Service Manual Revision - Page 9-231


   Fig 16: 2000 AN Service Manual Revision - Page 9-258



2000 Durango Service Manual - Publication Number 81-370-0016

1. PAGES
   8W-30-25
2. DESCRIPTION OF CHANGES
   Updates to the wiring schematic.
   Fig 17: 2000 DN Service Manual Revision - Page 8W-30-25


3. PAGES
   9-29, 9-81, 9-102, 9-132, 9-160, 9-161, 1-189
4. DESCRIPTION OF CHANGES
   Updates to the engine support & crossmember torque specifications.
   Fig 18: 2000 DN Service Manual Revision - Page 9-29


   Fig 19: 2000 DN Service Manual Revision - Page 9-81

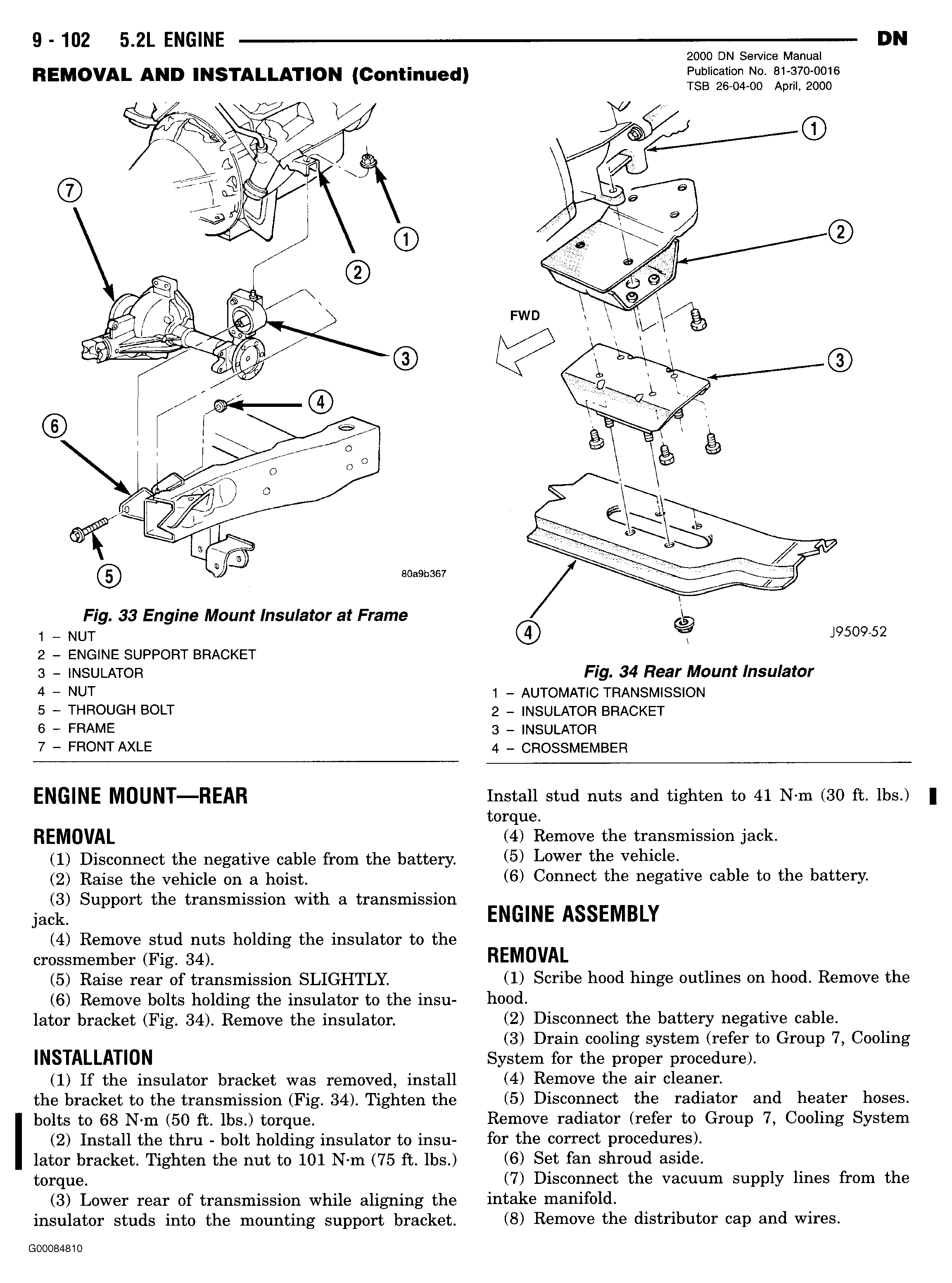

   Fig 20: 2000 DN Service Manual Revision - Page 9-102

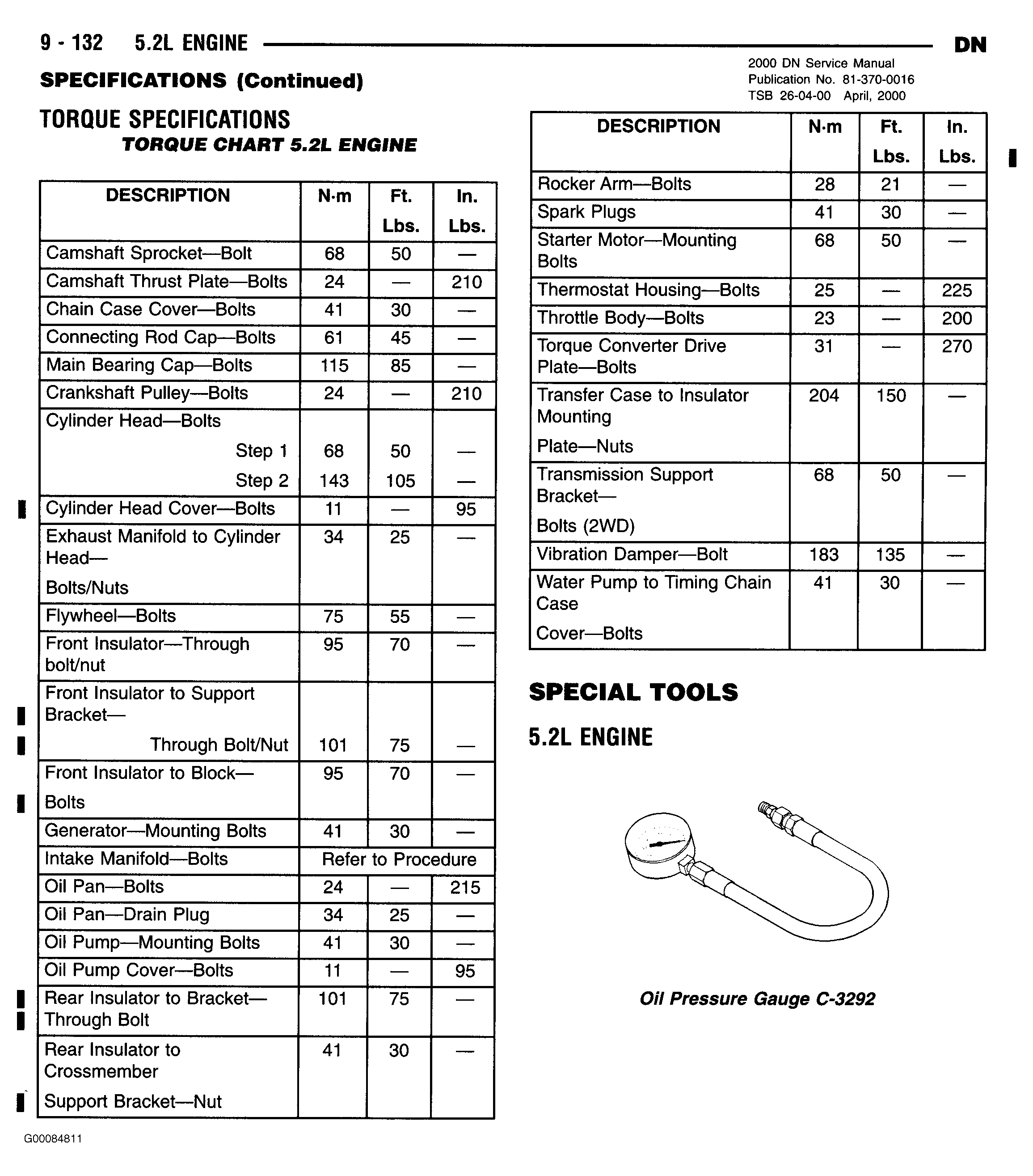

   Fig 21: 2000 DN Service Manual Revision - Page 9-132

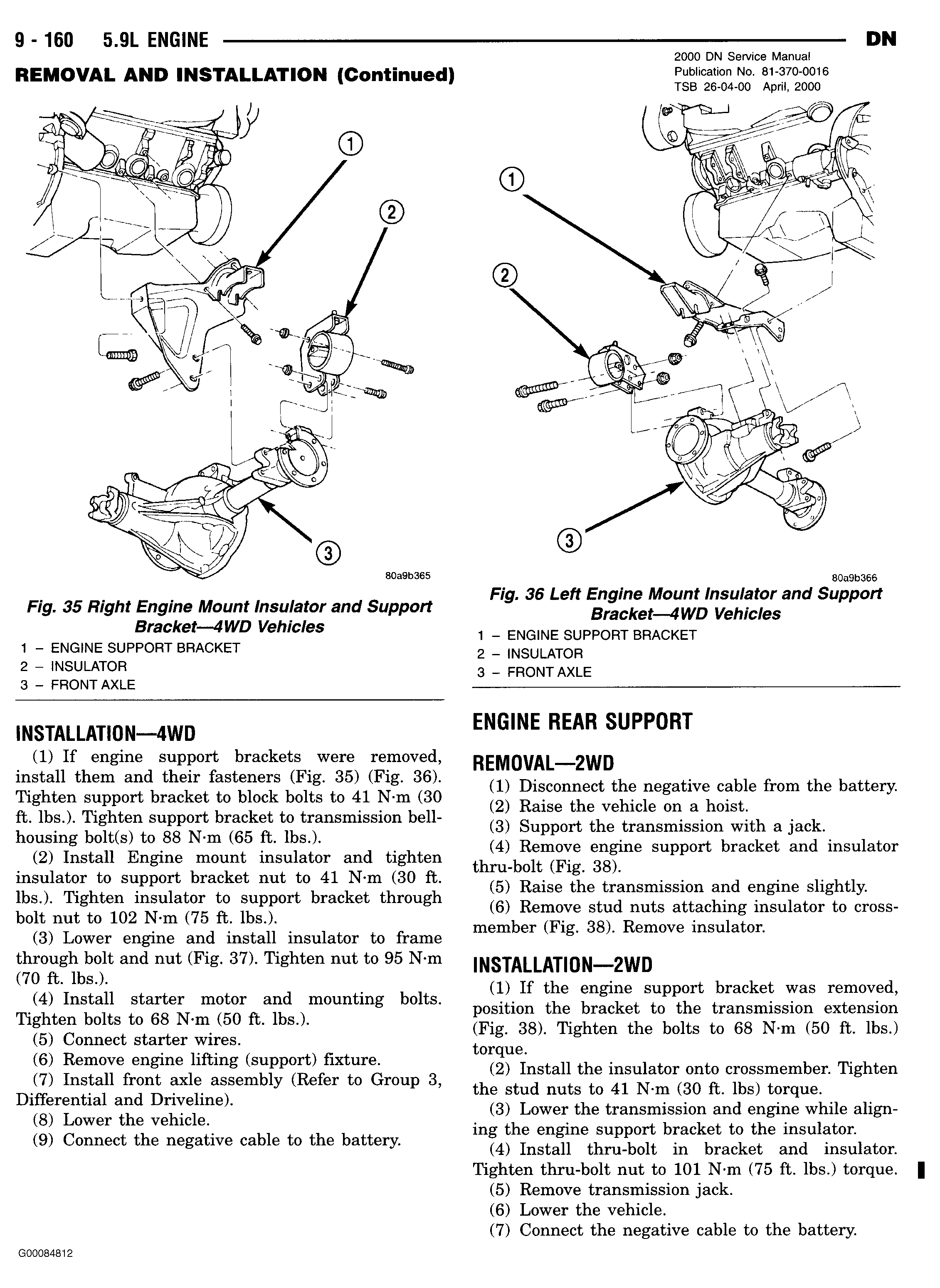

   Fig 22: 2000 DN Service Manual Revision - Page 9-160


   Fig 23: 2000 DN Service Manual Revision - Page 9-161

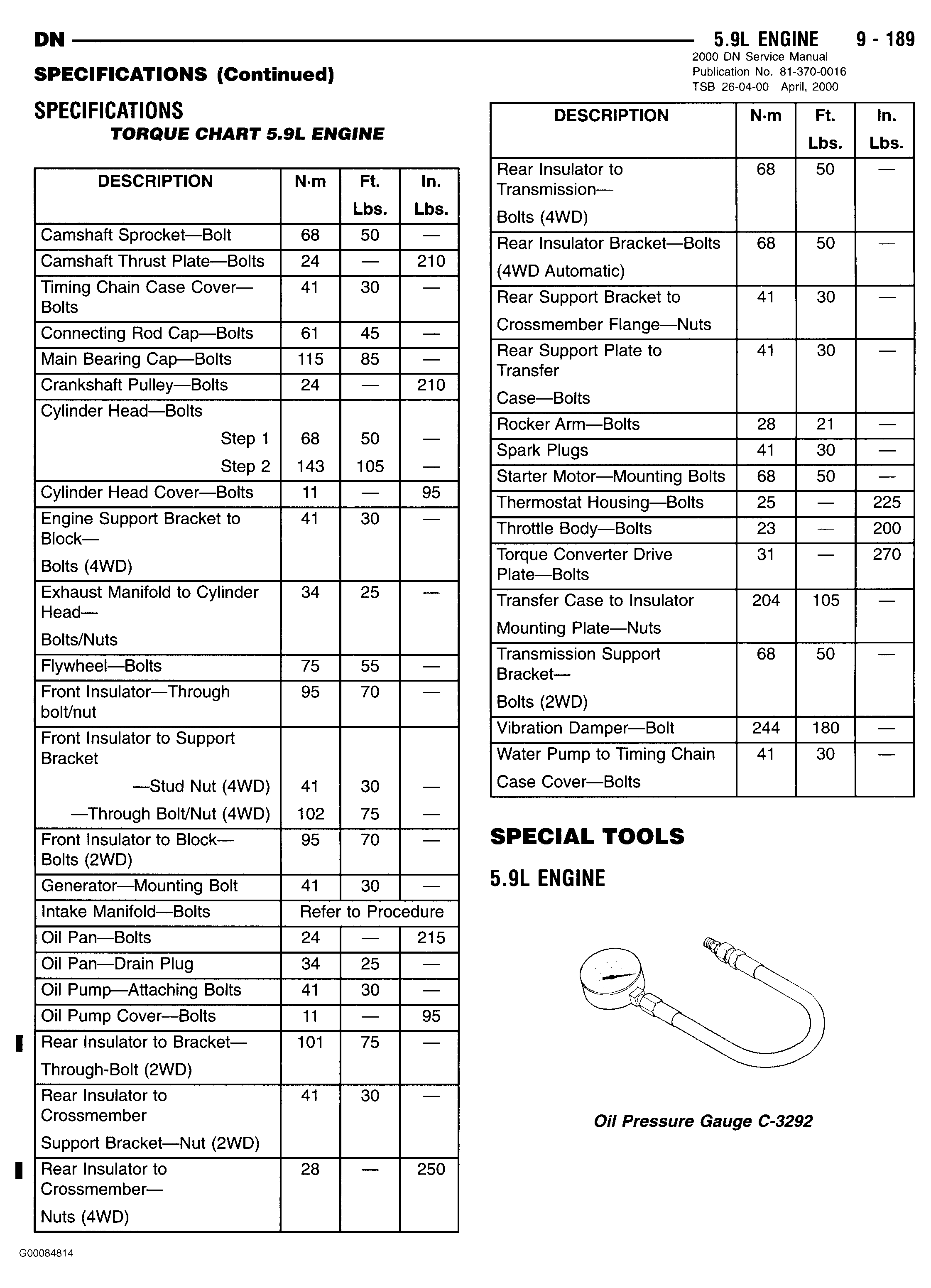

   Fig 24: 2000 DN Service Manual Revision - Page 9-189



2000 Ram Van & Ram Wagon Service Manual - Publication Number 81-370-0007

1. PAGES
   23-11, 23-12
2. DESCRIPTION OF CHANGES
   Updates to the armrest removal and installation procedures.

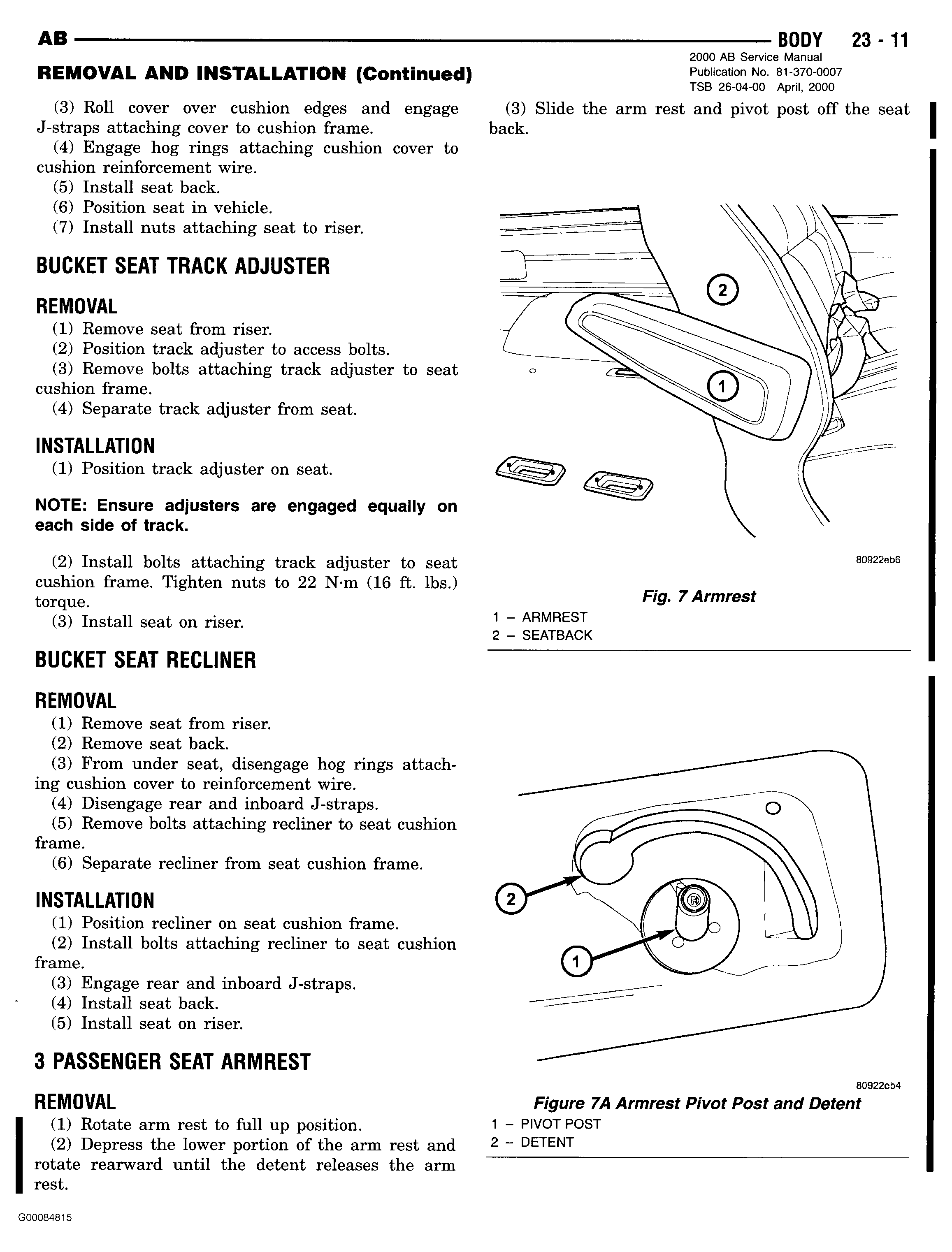

   Fig 25: 2000 AB Service Manual Revision - Page 23-11

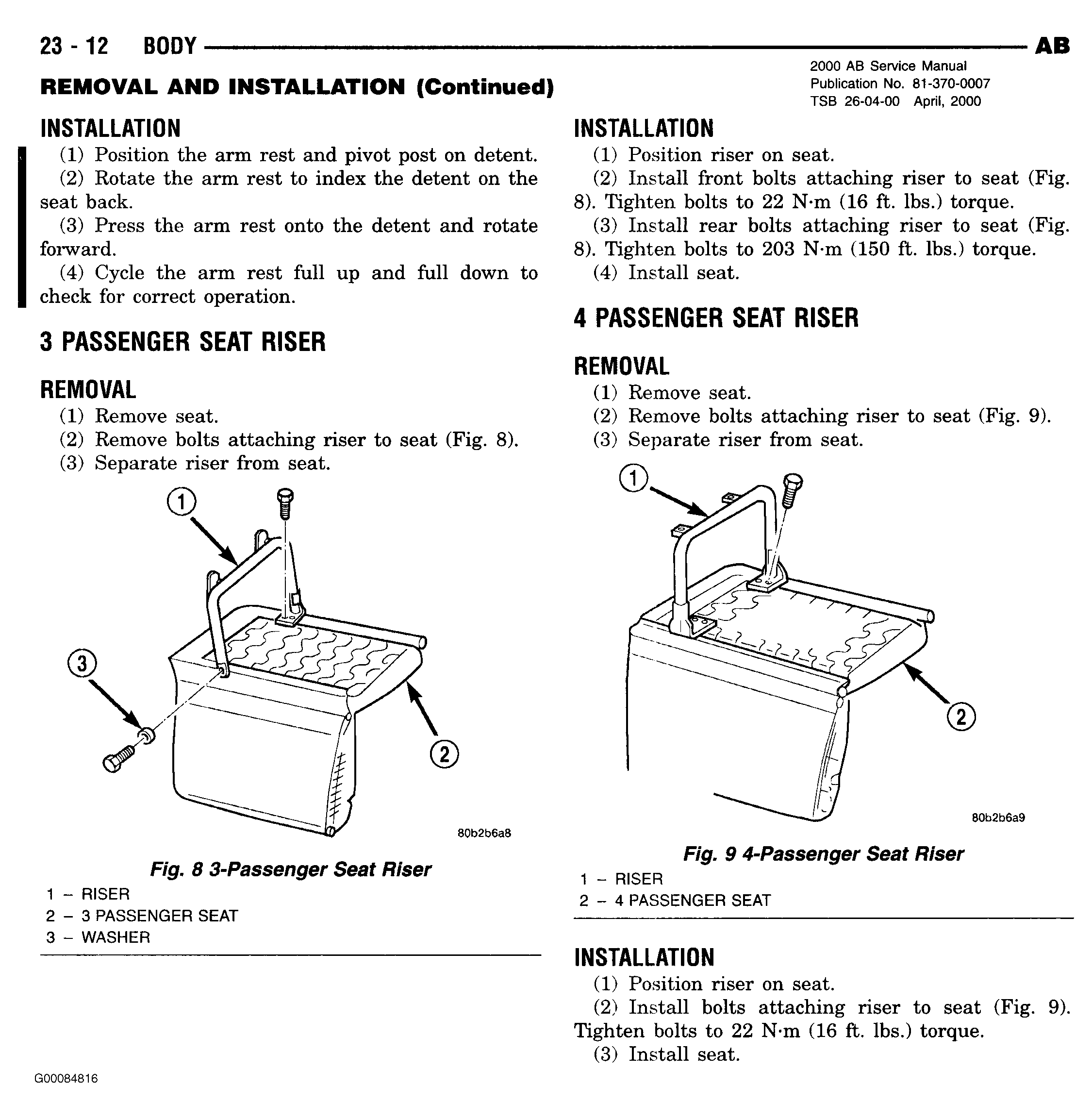

   Fig 26: 2000 AB Service Manual Revision - Page 23-12



1999 Caravan, Voyager, Town & Country Service Manual - Publication Number 81-370-9105

1. PAGES
   21-187
2. DESCRIPTION OF CHANGES
   Updates to the torque specifications.

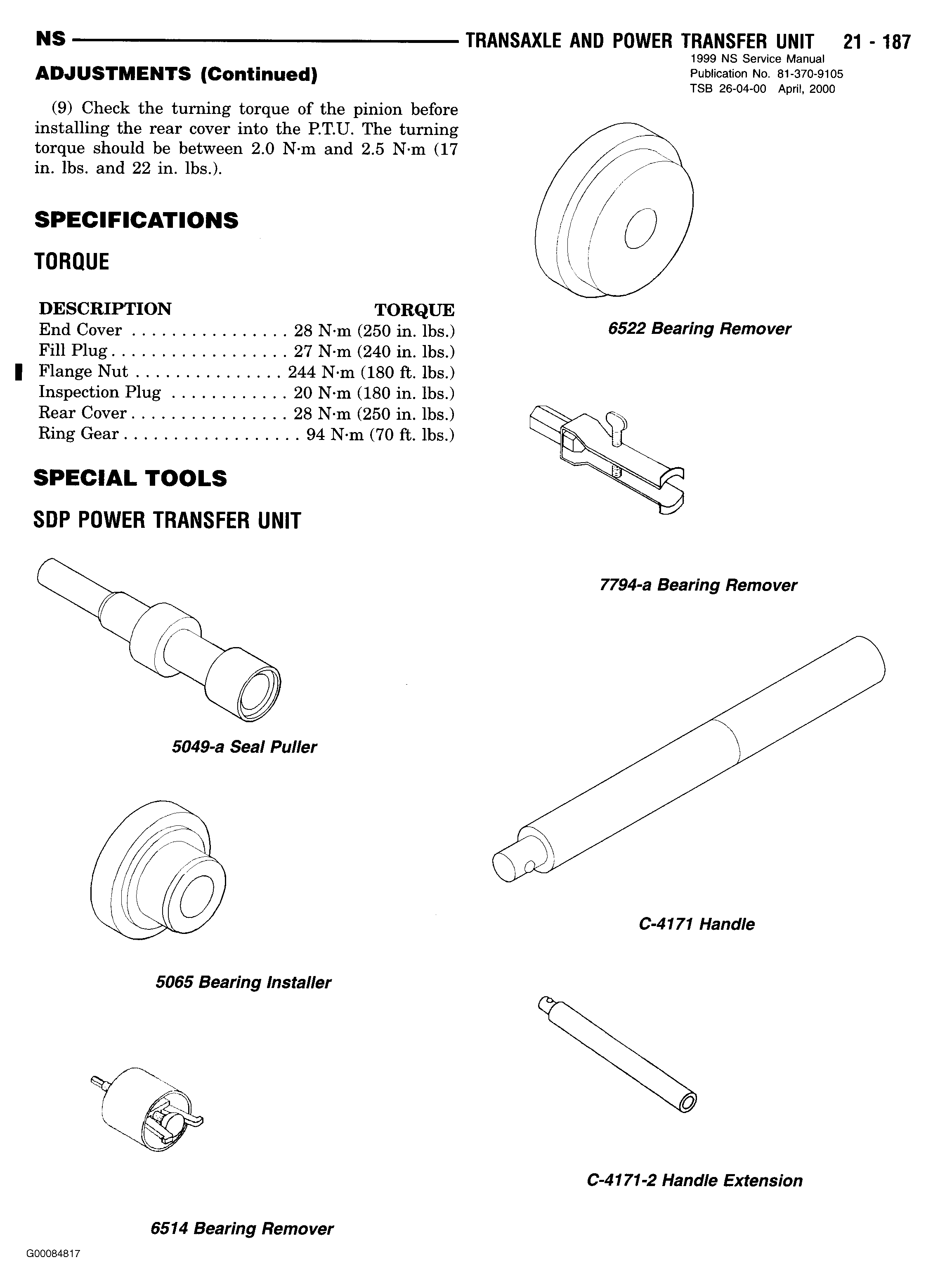

   Fig 27: 1999 NS Service Manual Revision - Page 21-187


3. PAGES
   8E-30
4. DESCRIPTION OF CHANGES
   Updates to the instrument panel service procedures.

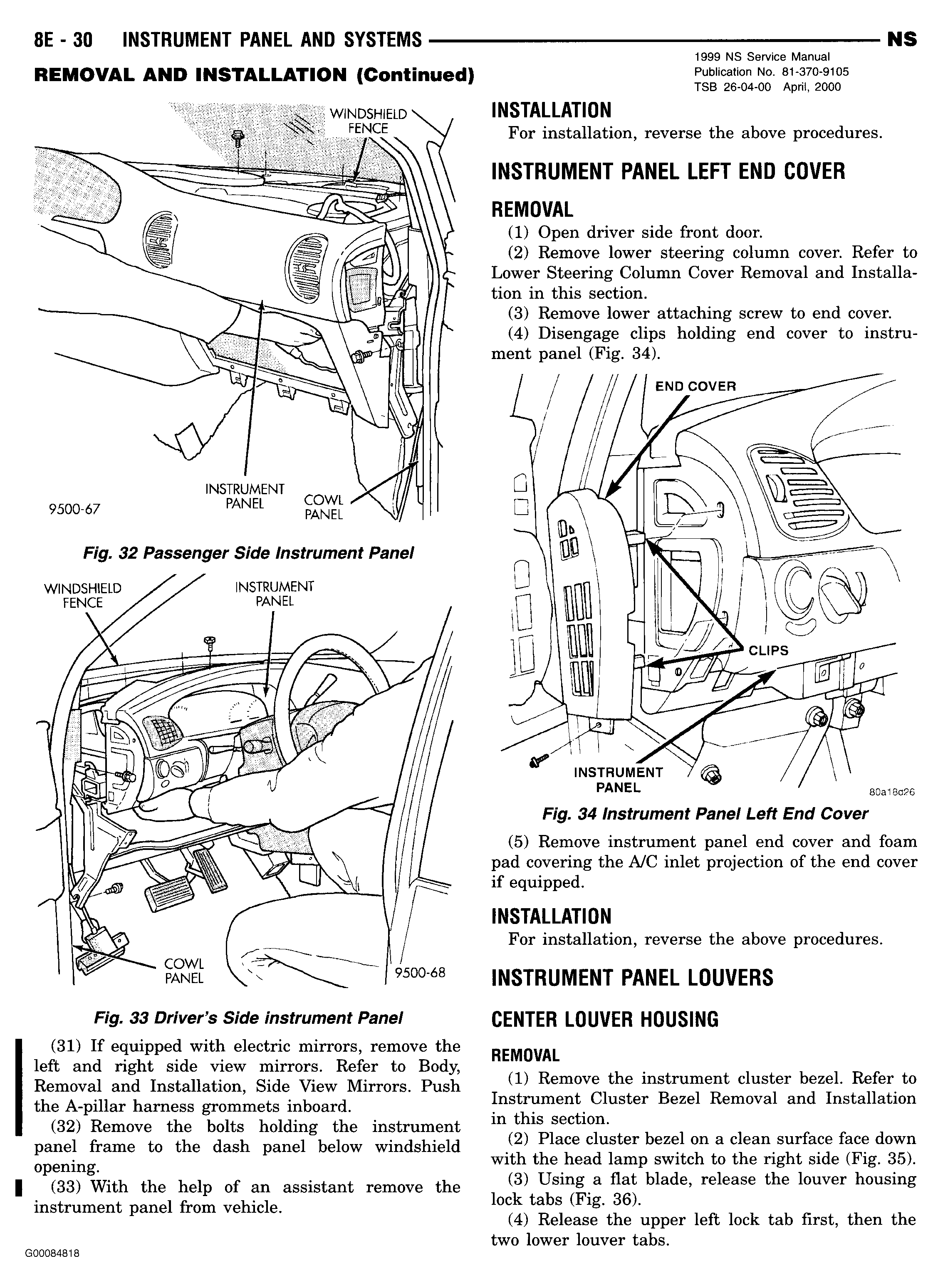

   Fig 28: 1999 NS Service Manual Revision - Page 8E-30


5. PAGES
   24-8 through 24-12B
6. DESCRIPTION OF CHANGES
   Updates to the heating and air conditioning diagnostic procedures.

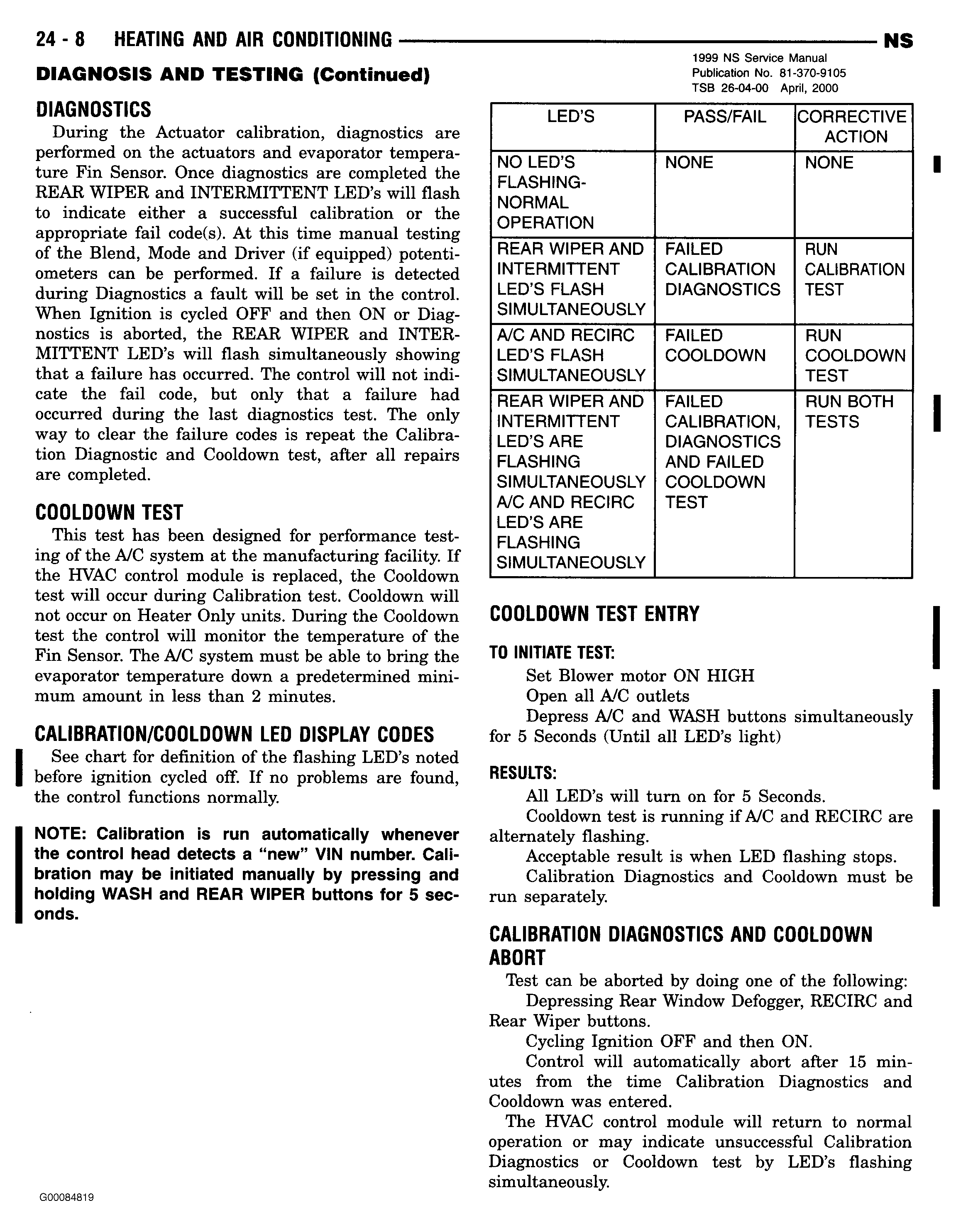

   Fig 29: 1999 NS Service Manual Revision - Page 24-8

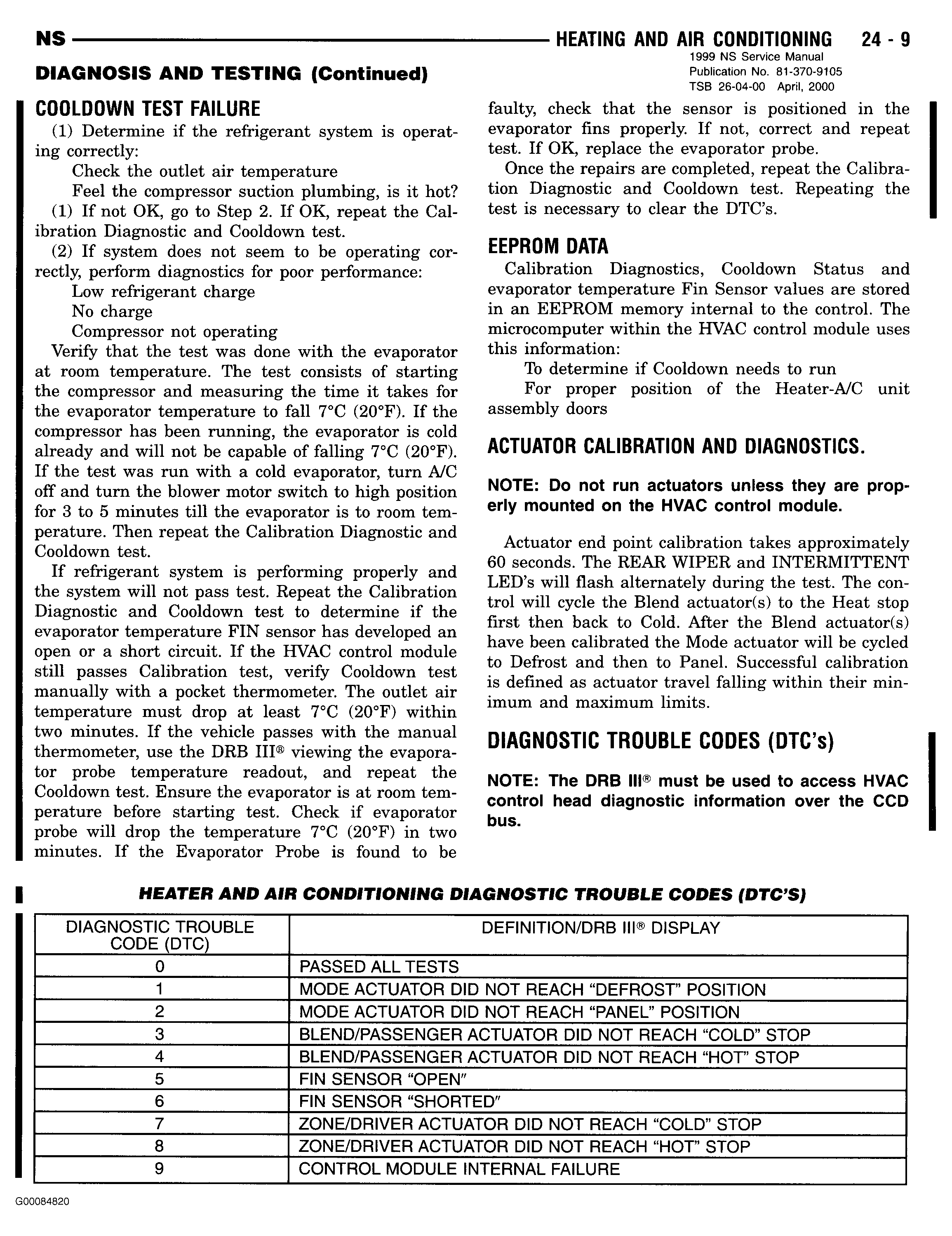

   Fig 30: 1999 NS Service Manual Revision - Page 24-9


   Fig 31: 1999 NS Service Manual Revision - Page 24-10


   Fig 32: 1999 NS Service Manual Revision - Page 24-11

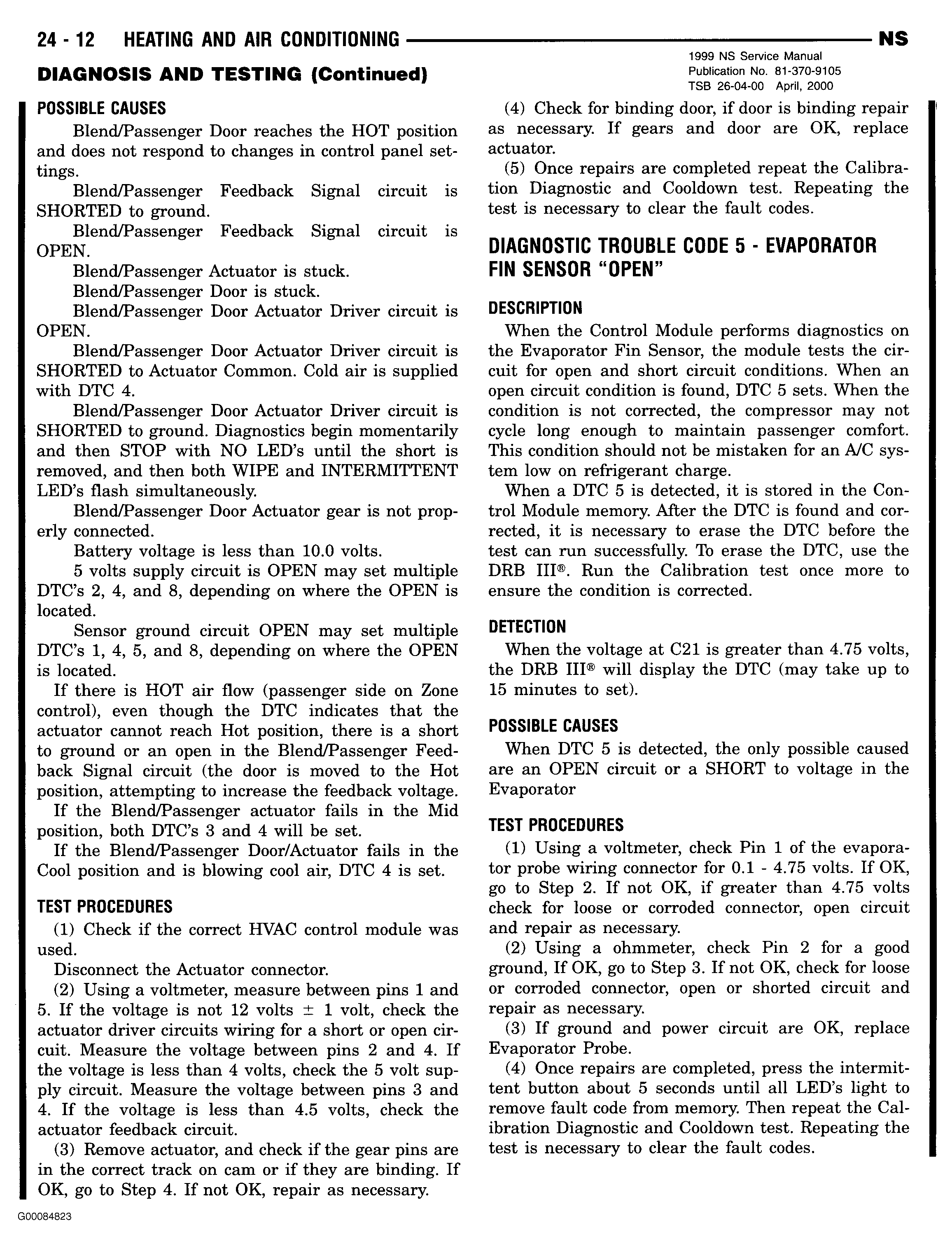

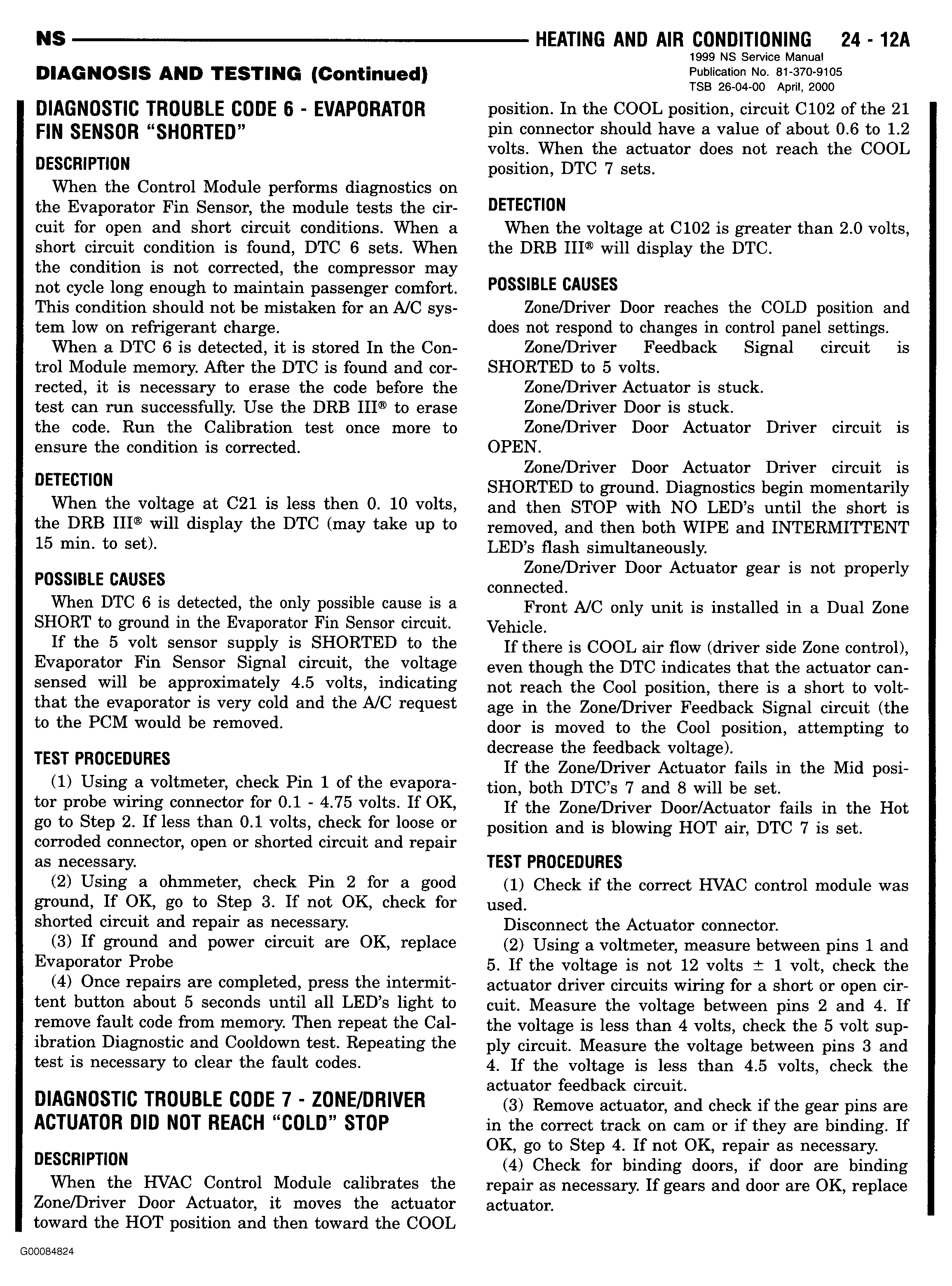

   Fig 33: 1999 NS Service Manual Revision - Page 24-12


   Fig 34: 1999 NS Service Manual Revision - Page 24-12A

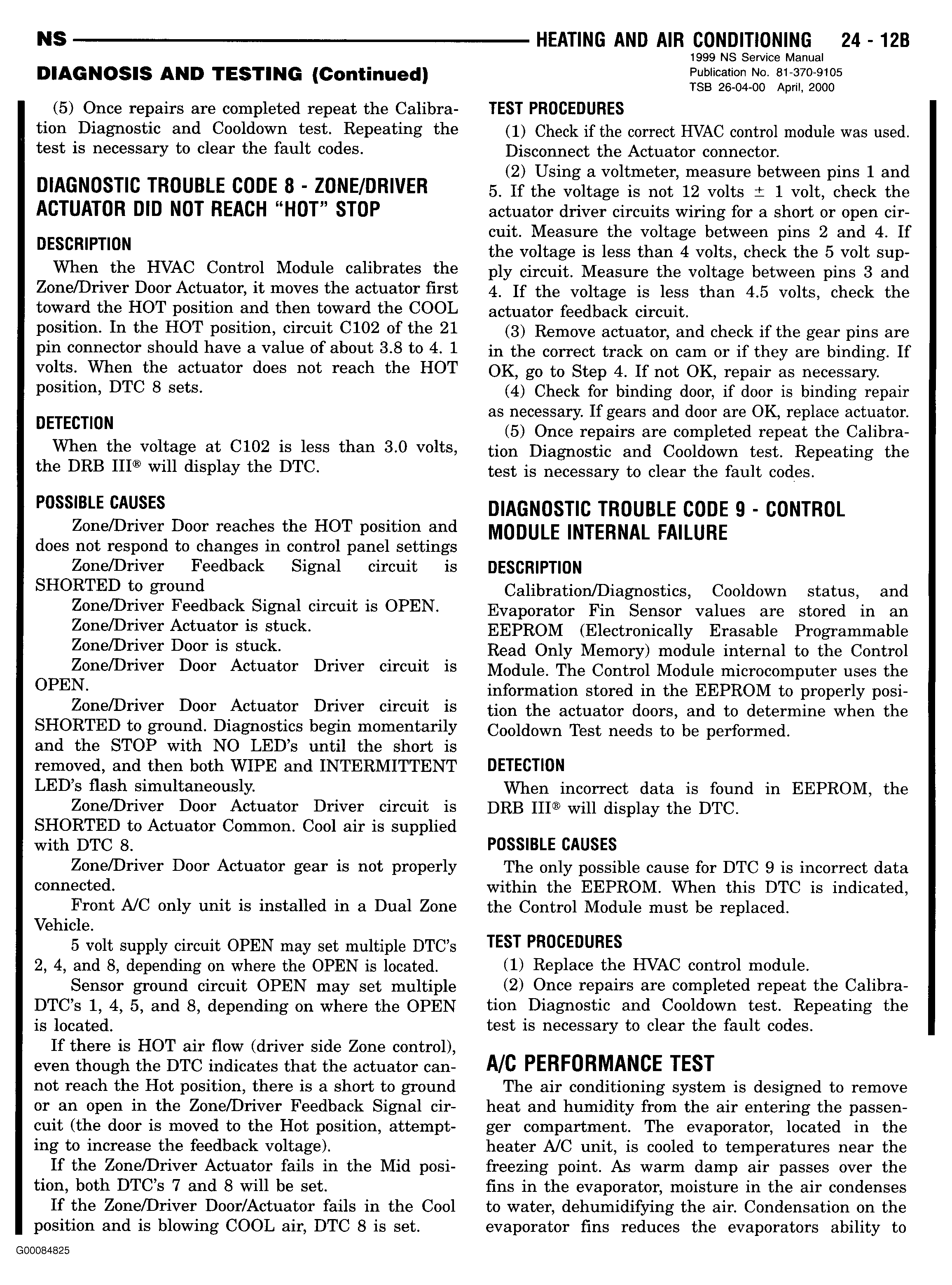

   Fig 35: 1999 NS Service Manual Revision - Page 24-12B



1998 Concorde, Intrepid, LHS Service Manual - Publication Number 81-270-8140

1. PAGES
   8W-80-30, 8W-80-37
2. DESCRIPTION OF CHANGES
   Updates to the connector pin-outs.

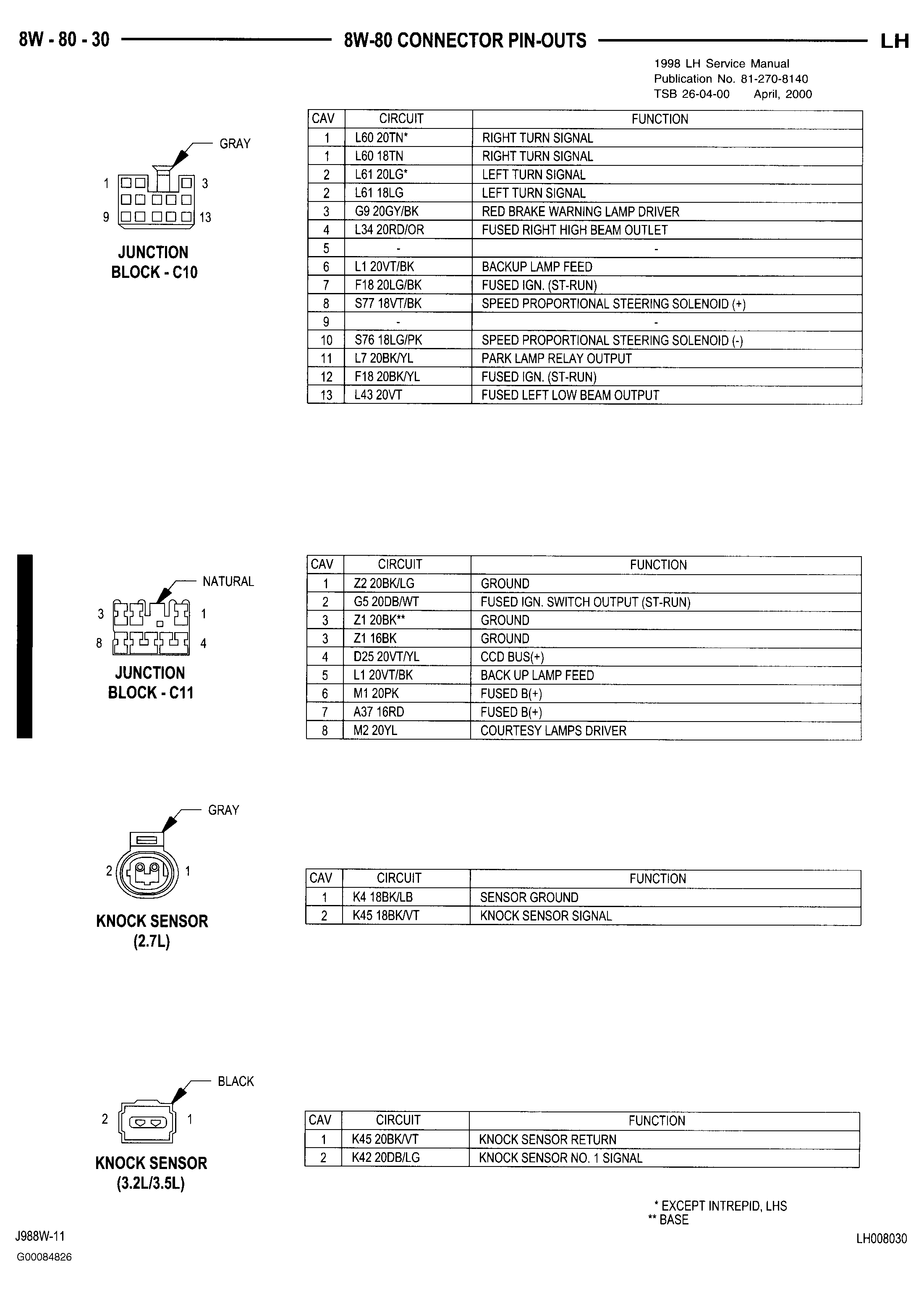

   Fig 36: 1998 LH Service Manual Revision - Page 8W-80-30

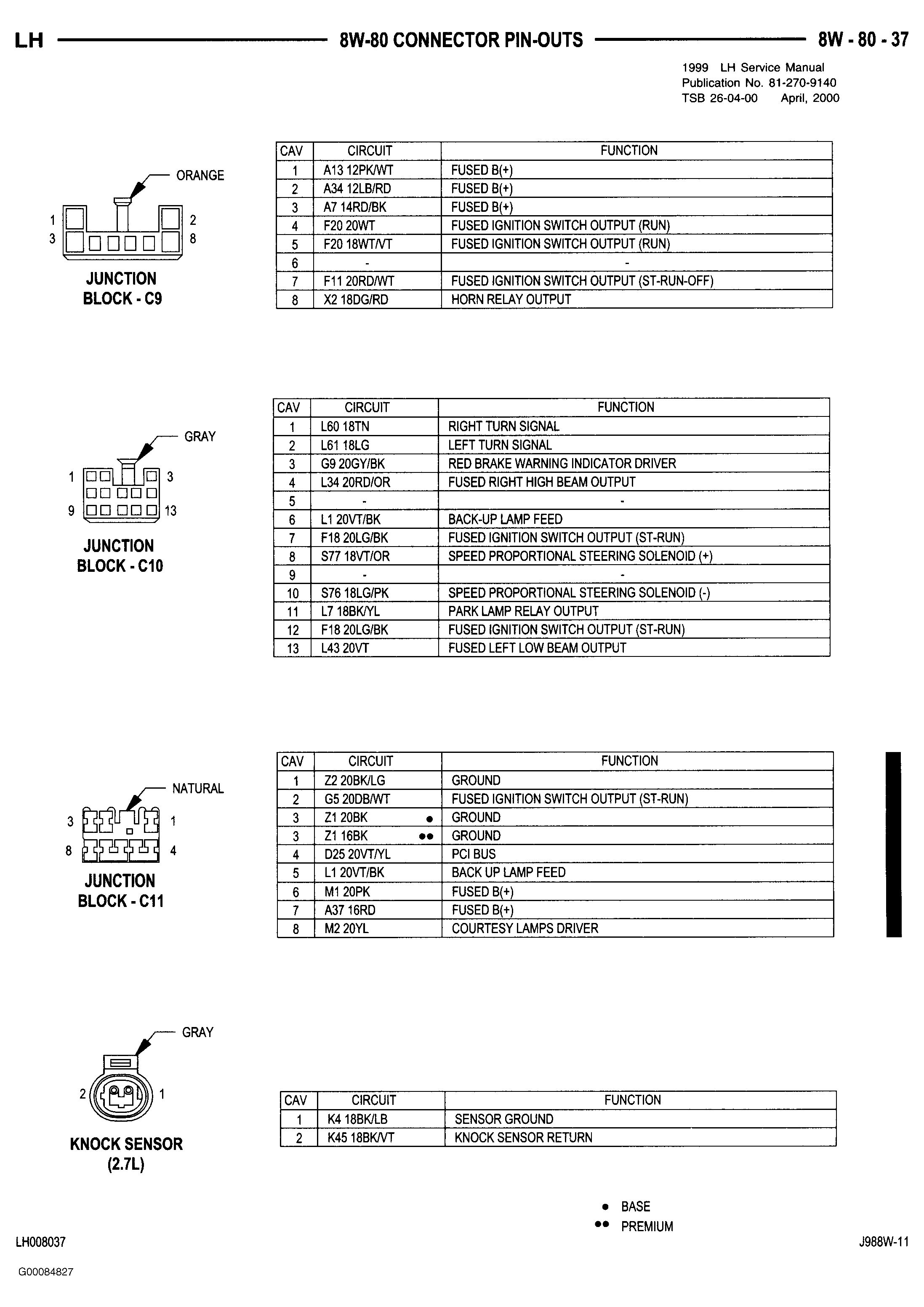

   Fig 37: 1998 LH Service Manual Revision - Page 8W-80-37



1998 Neon Service Manual - Publication Number 81-270-8025

1. PAGES
   8W-44-2, 8W-70-4
2. DESCRIPTION OF CHANGES
   Updates to the wiring schematics.
   Fig 38: 1998 PL Service Manual Revision - Page 8W-44-2


   Fig 39: 1998 PL Service Manual Revision - Page 8W-70-4



1998-1999 Concorde, Intrepid, LHS Body Diagnostic Manual - Publication Number 81-699-97229

1. PAGES
   142, 182, 206, 224
2. DESCRIPTION OF CHANGES
   Updates to the Body Control module connector pin-outs.

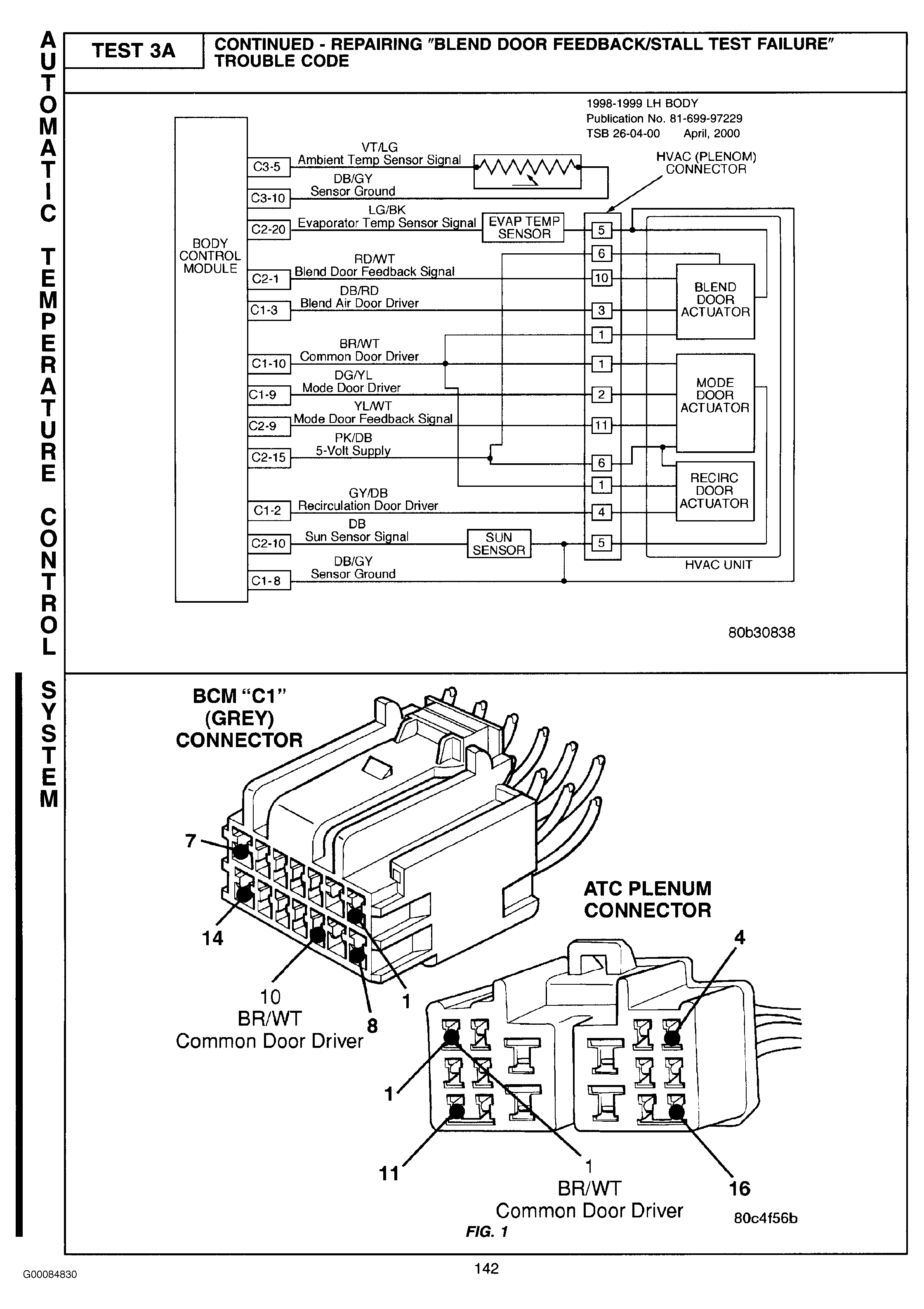

   Fig 40: 1998-1999 LH Body Diagnostic Manual Revision - Page 142

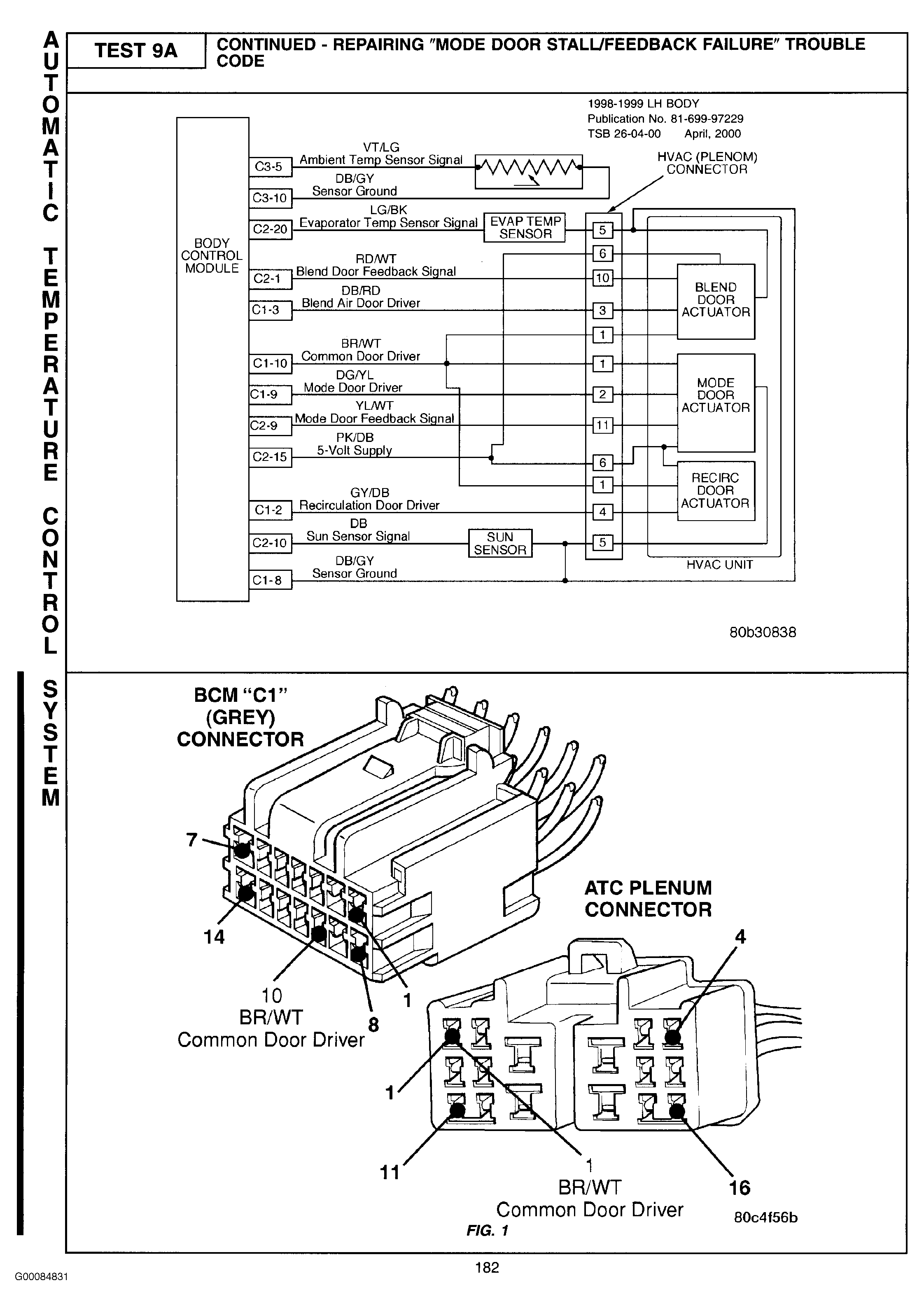

   Fig 41: 1998-1999 LH Body Diagnostic Manual Revision - Page 182


   Fig 42: 1998-1999 LH Body Diagnostic Manual Revision - Page 206


   Fig 43: 1998-1999 LH Body Diagnostic Manual Revision - Page 224
