Test 85: Headlight Doors Do Not Open For Flash To Pass
Test 85: Headlight Doors Do Not Open For Flash To Pass
Fig 1: Test 85: Circuit Diagram & Flow Chart (1 of 2)

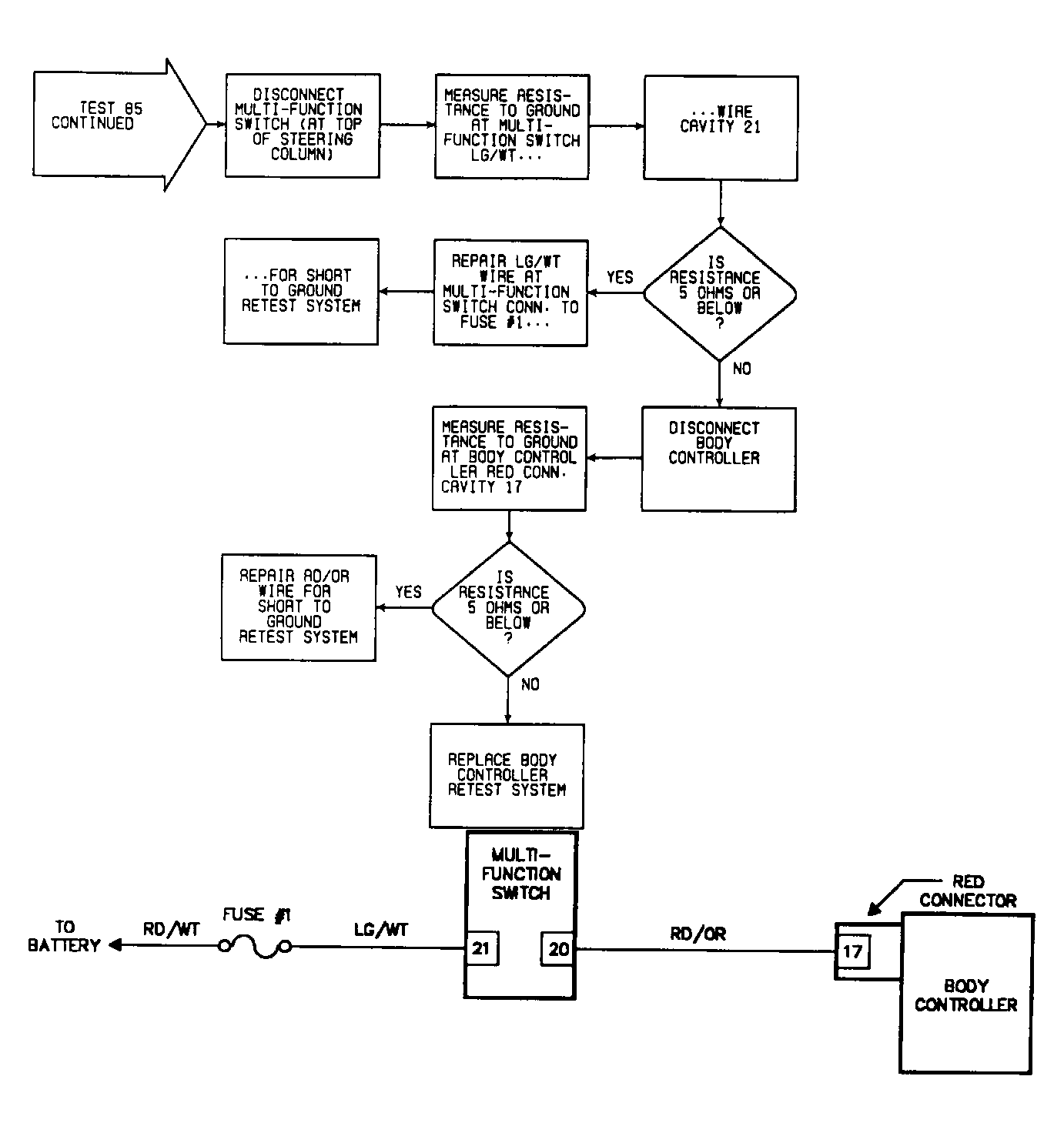

Fig 2: Test 85: Circuit Diagram & Flow Chart (2 of 2)
