Removal Procedure

Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use a suitable jack stand to support the rear stabilizer shaft.

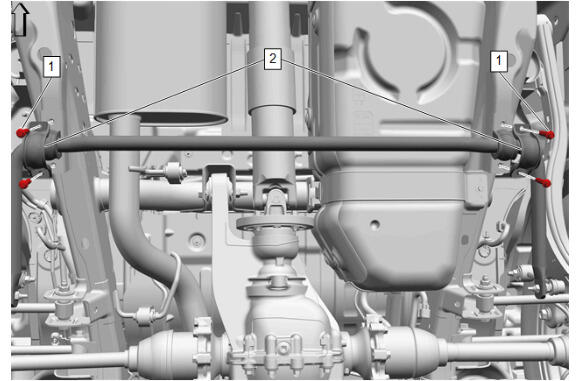

Rear Stabilizer Shaft Insulator Clamp Bolt (1) - Remove [4x]
Rear Stabilizer Shaft Clamp (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

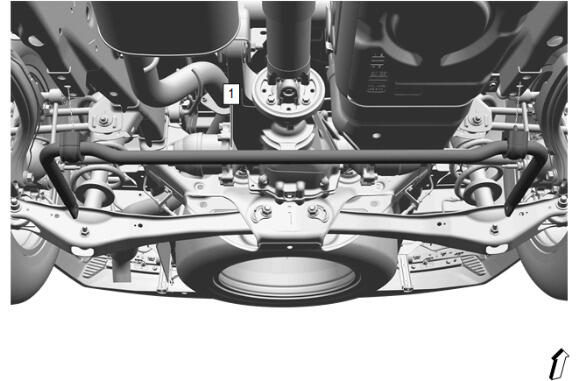

Rear Stabilizer Shaft (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

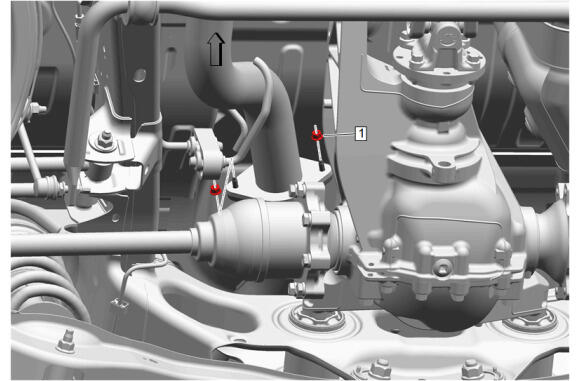

Exhaust Particulate Filter Nut (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

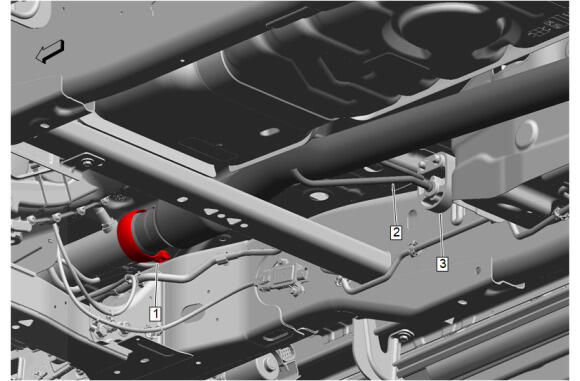

Exhaust Pipe Clamp (1) - Loosen
Exhaust Intermediate Pipe (2) @Exhaust Insulator (3) - Separate
Courtesy of GENERAL MOTORS COMPANY

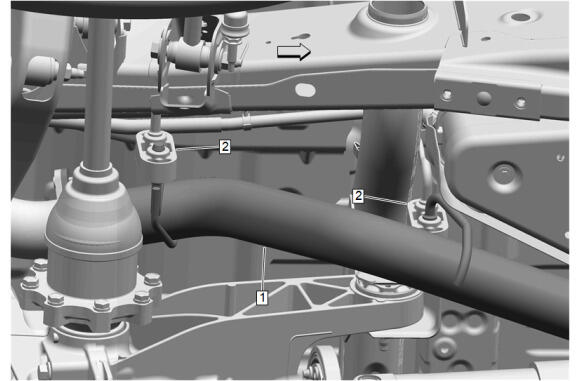

Exhaust Intermediate Pipe (1) @Exhaust Insulator (2) - Separate [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
With the aid of an assistant, remove the exhaust intermediate pipe from the vehicle.

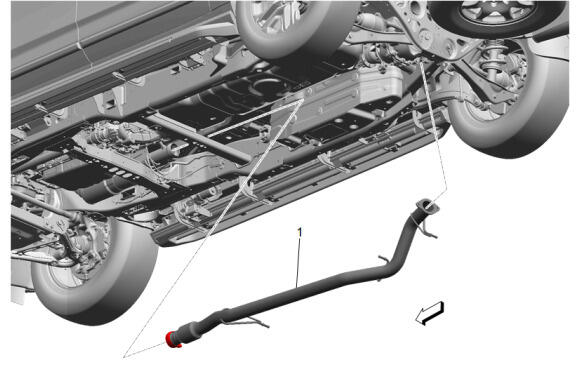

Exhaust Intermediate Pipe (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Exhaust System Rear Gasket (2) - Remove and DISCARD
