Front Side Door Window Upper Reveal Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

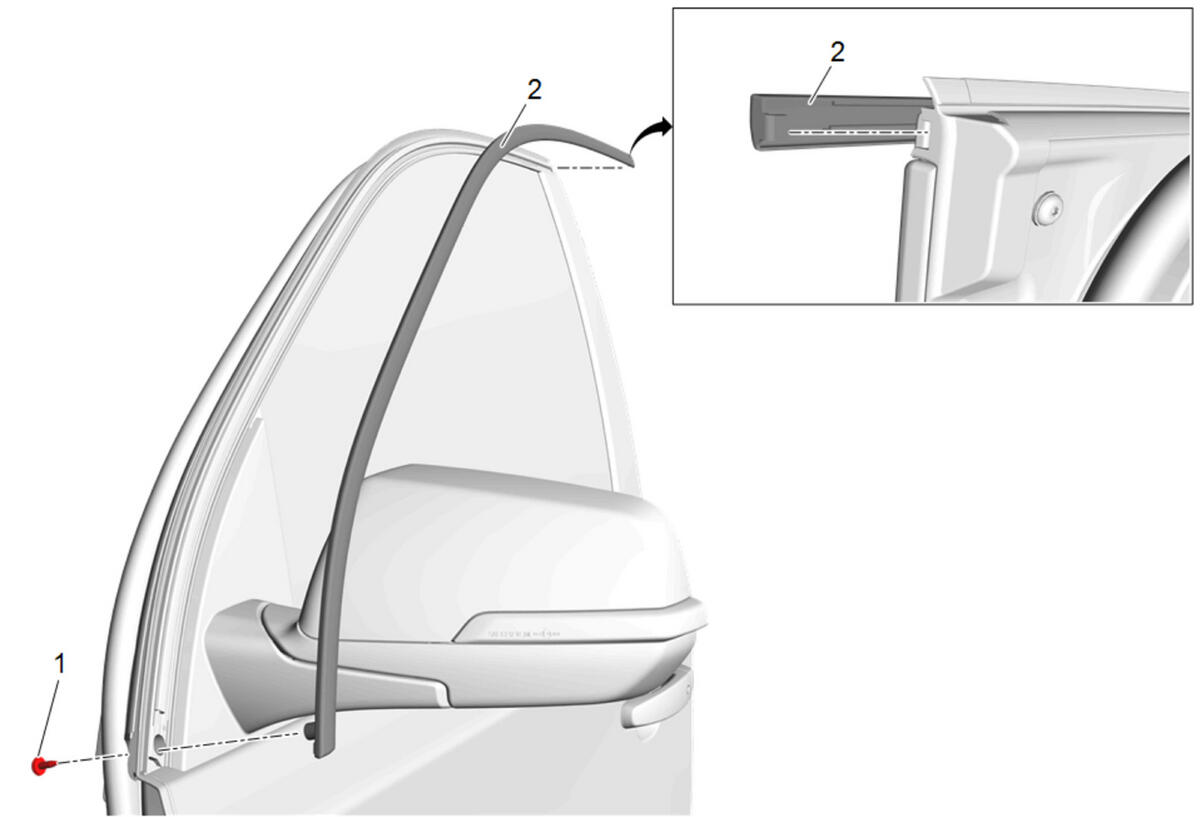

Callout	Component Name
Preliminary Procedure  Open the front side door.
1	Front Side Door Window Upper Reveal Molding Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Side Door Window Upper Reveal Molding Procedure  Using the appropriate tool, release the upper reveal molding starting at the front working to the rear of the front door. Slide molding rearward to release the hook clip from the rear of the front door.
