Removal Procedure

Open the hood.
Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q) , and Exhaust Muffler Replacement (LV7) .
Remove the front compartment insulator. Refer to Front Compartment Insulator Replacement .
Courtesy of GENERAL MOTORS COMPANY

Remove the catalytic converter mounting nut (1).
Courtesy of GENERAL MOTORS COMPANY

Loosen the catalytic converter bracket bolts (1).
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Disconnect the heated oxygen sensor 1 connector.
Courtesy of GENERAL MOTORS COMPANY

Remove the catalytic converter heat shield bolts (1) and remove the catalytic converter heat shield.
Courtesy of GENERAL MOTORS COMPANY

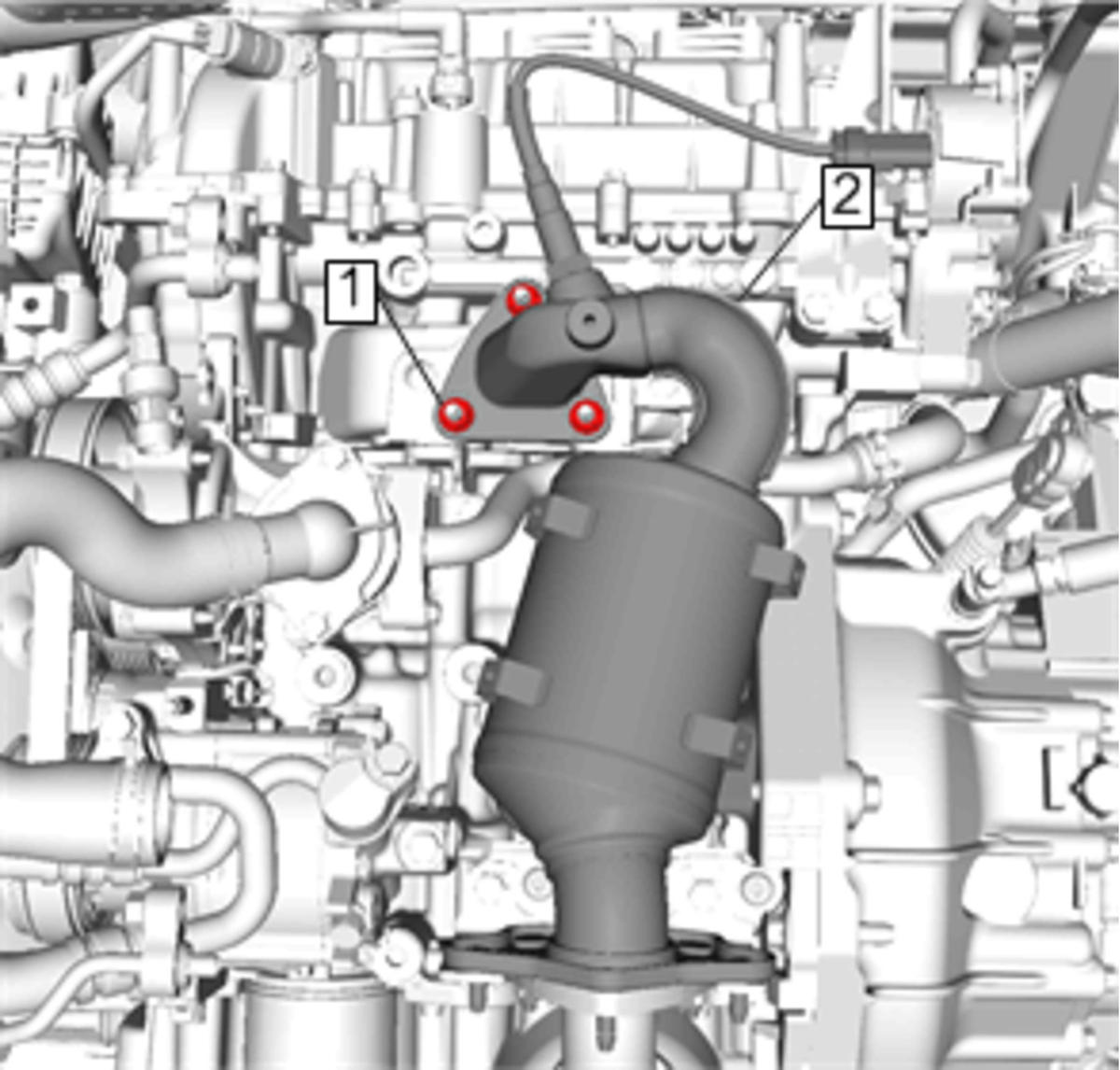

Remove the catalytic converter nuts (1).
Remove the catalytic converter (2) and gasket.
Courtesy of GENERAL MOTORS COMPANY

Remove the lower right side stud bolt (1) from the cylinder head assembly.
Courtesy of GENERAL MOTORS COMPANY

Remove the catalytic converter from the vehicle.
