Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Vehicle Lifting and Jacking Caution .
Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the front brake rotor. Refer to Front Brake Rotor Replacement .
Courtesy of GENERAL MOTORS COMPANY

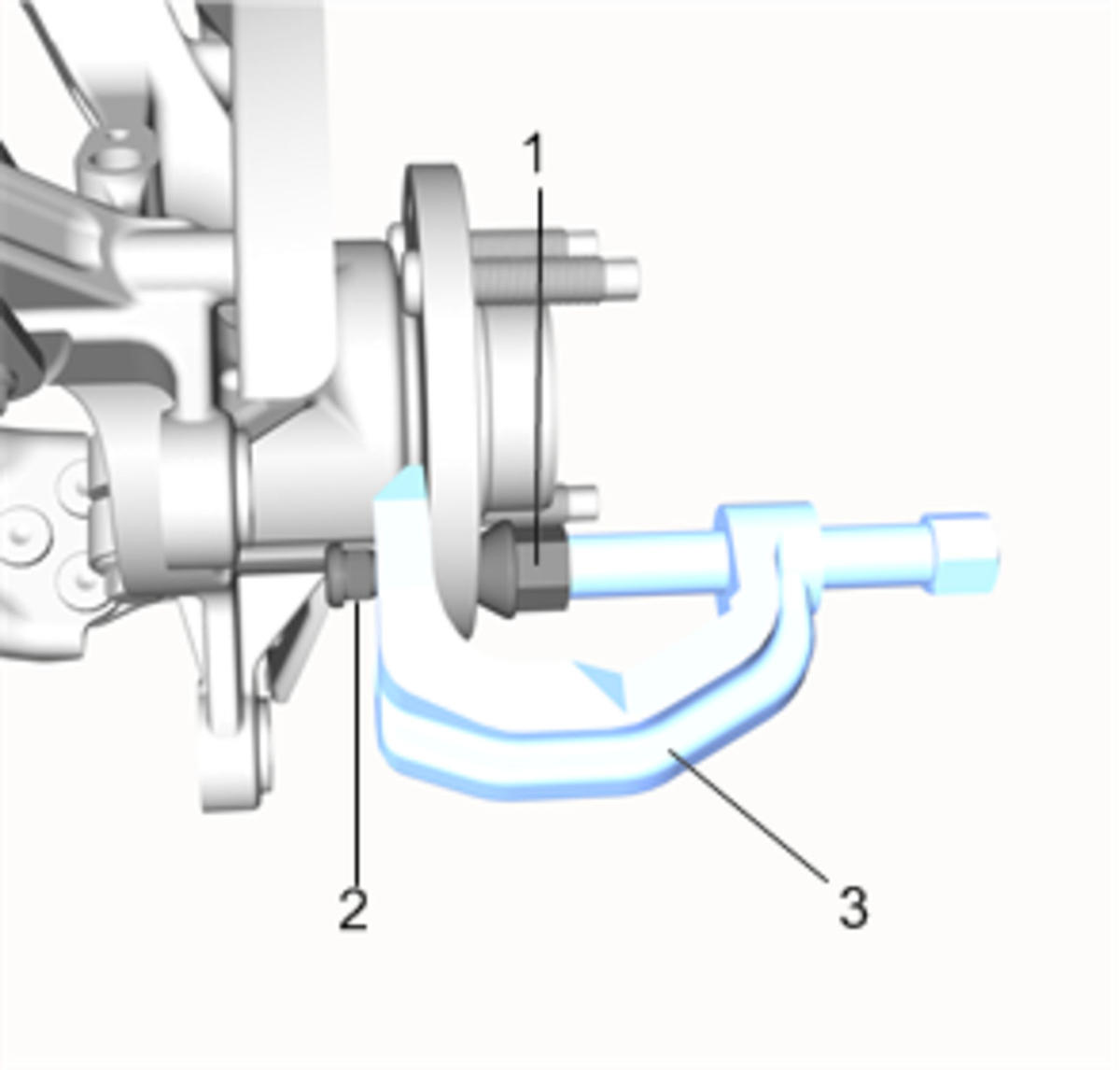

Hand tighten the wheel nut (1) to the wheel stud (2) and install CH-43631 ball joint separator (3).

NOTE:

Use the groove on the outer surface of steering knuckle when removing the wheel stud from the wheel hub.

Using the CH-43631 ball joint separator (3), remove the wheel stud (2) from the wheel hub and discard the wheel stud.
