Removal Procedure
WARNING:
Refer to Exhaust Service Warning .
- Remove the drivetrain and front suspension frame skid plate. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .
- Disconnect the heated oxygen sensor-2. Refer to Heated Oxygen Sensor Replacement - Sensor 2 .

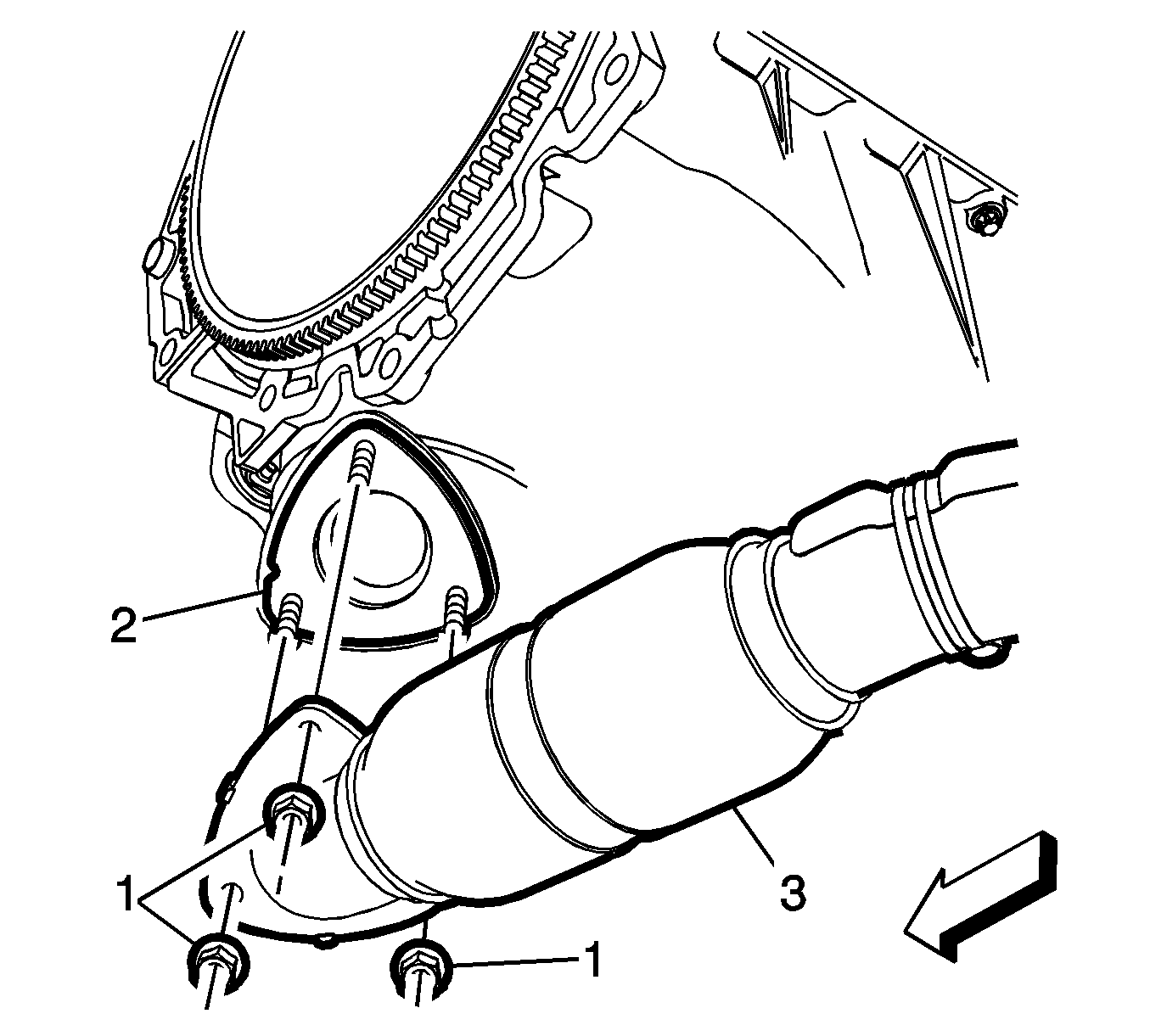

Remove the 3 - way catalytic converter fasteners (1) and disconnect the 3-way catalytic converter (4) from the front pipe.
- Discard the exhaust gasket (2).
Remove the exhaust front pipe (3) to the catalytic converter fasteners (1).
- Remove the front pipe (3) from the catalytic converter and discard the exhaust gasket (2).
