Removal Procedure

    WARNING:

    Refer to Diesel/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

  1. Relieve the fuel system pressure. Fuel Pressure Relief
  2. Fuel Feed Front Pipe Replacement  - Disconnect
  3. Front Cradle Brace - Right Side - Remove - Front Cradle Brace Replacement

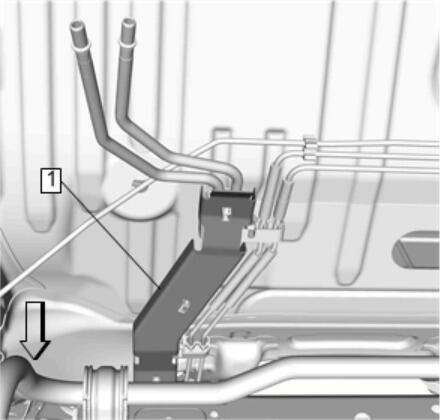

  4. GM4244586Courtesy of GENERAL MOTORS COMPANY

    Brake and Fuel Pipe Shield (1) - Remove

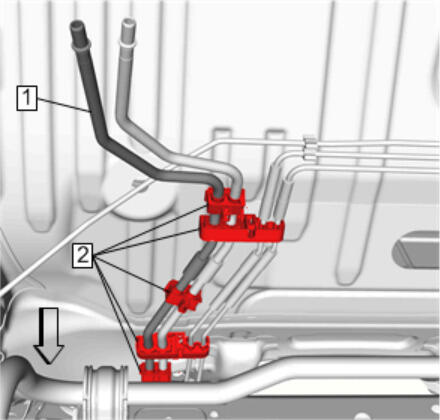

  5. GM4244594Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe (1) @ Retainer (2) - Remove [5x]

  6. GM4244450Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe (1) @ Fuel Feed Pipe (2) - Disconnect - Plastic Collar Quick Connect Fitting Service

  7. Fuel Feed Pipe (1) @ Retainer (3) - Remove [5x]
