Removal Procedure

  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LV7) .
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  3. Loosen the air cleaner outlet duct clamp (2) and position the air cleaner outlet duct (1) away from the engine.
    Fig 1: Air Cleaner Outlet Duct And Clamp
    GM4210128Courtesy of GENERAL MOTORS COMPANY
  4. Using a suitable tool, cut a slot in the tamper-resistant positive crankcase ventilation (PCV) bolt heads (1) and remove with a flat-bladed tool. Discard bolts (1).

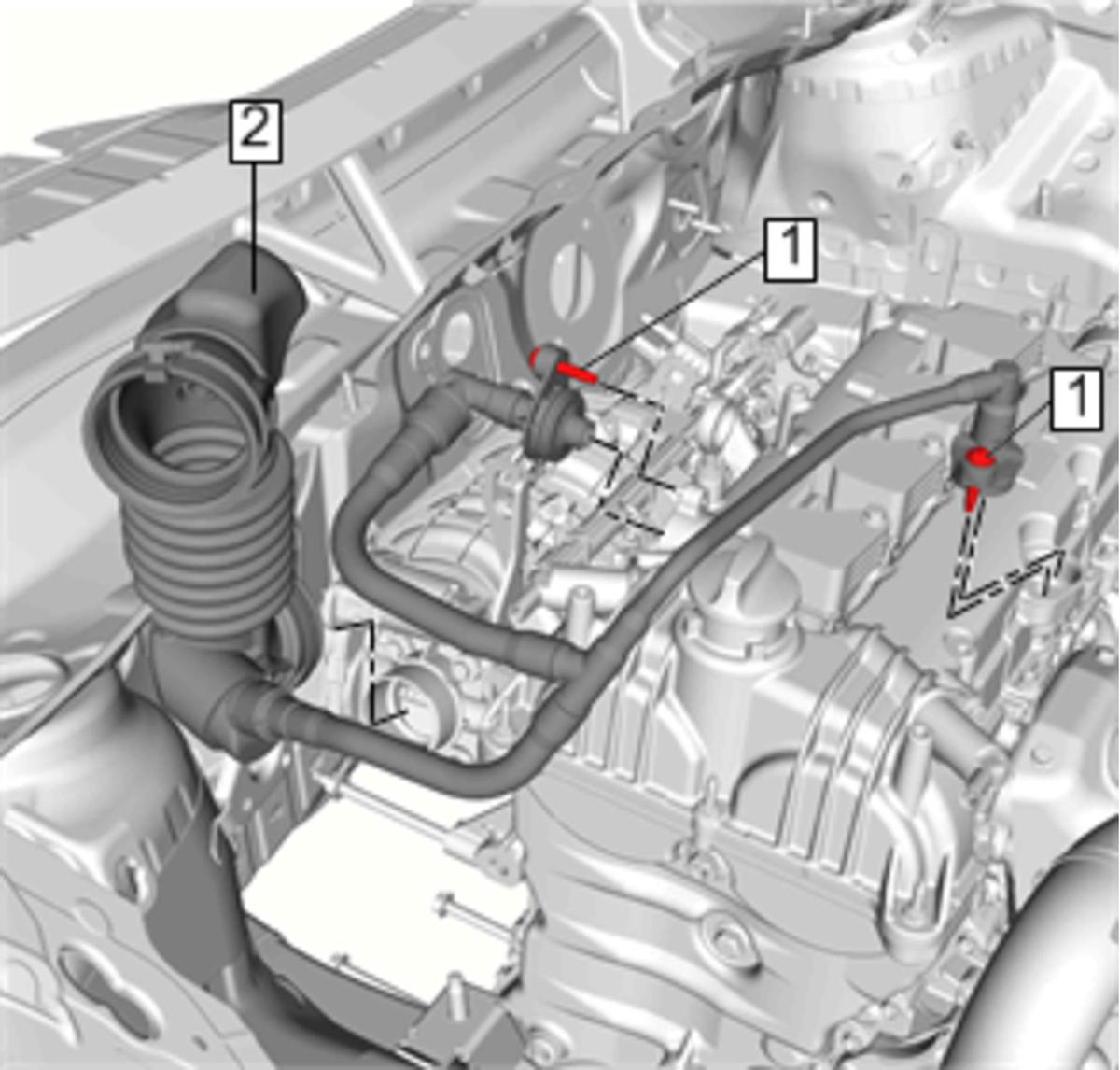

    Fig 2: Positive Crankcase Ventilation (PCV) Tube Assembly Components
    GM4210130Courtesy of GENERAL MOTORS COMPANY
  5. Remove the air cleaner outlet duct assembly (2) with the positive crankcase ventilation tube and valves from the engine. Discard the assembly (2).
