Home >> Chevrolet >> 2016 >> Traverse LT, FWD >> Repair and Diagnosis >> Electrical >> Starter >> Battery, Charging System And Starting System >> Schematic Wiring Diagrams >> Starting and Charging Wiring Schematics >> Charging

Starting and Charging Wiring Schematics: Charging

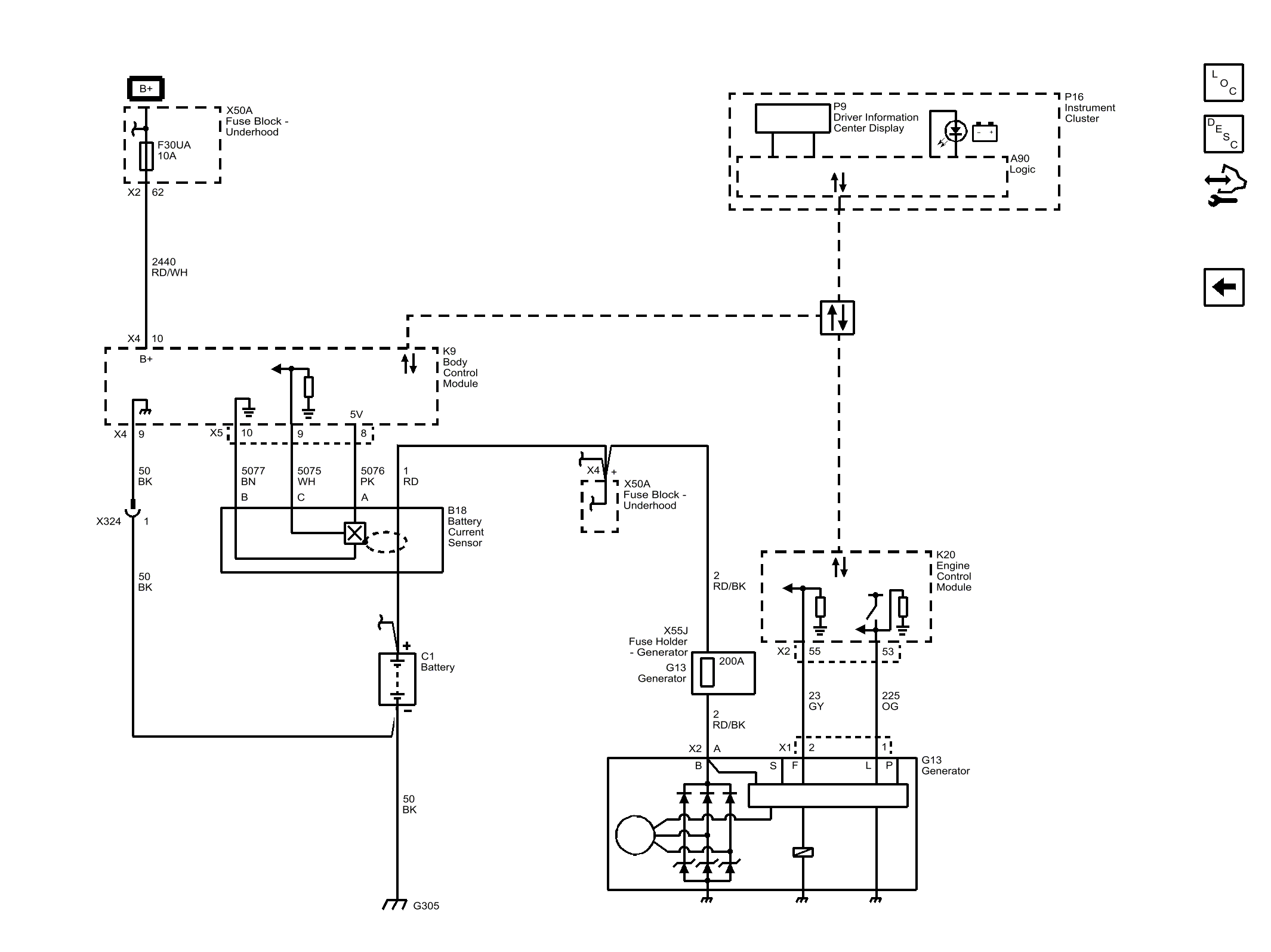

Fig 1: Charging

GM4073785

Courtesy of GENERAL MOTORS COMPANY
