Air Cleaner Outlet Duct Replacement

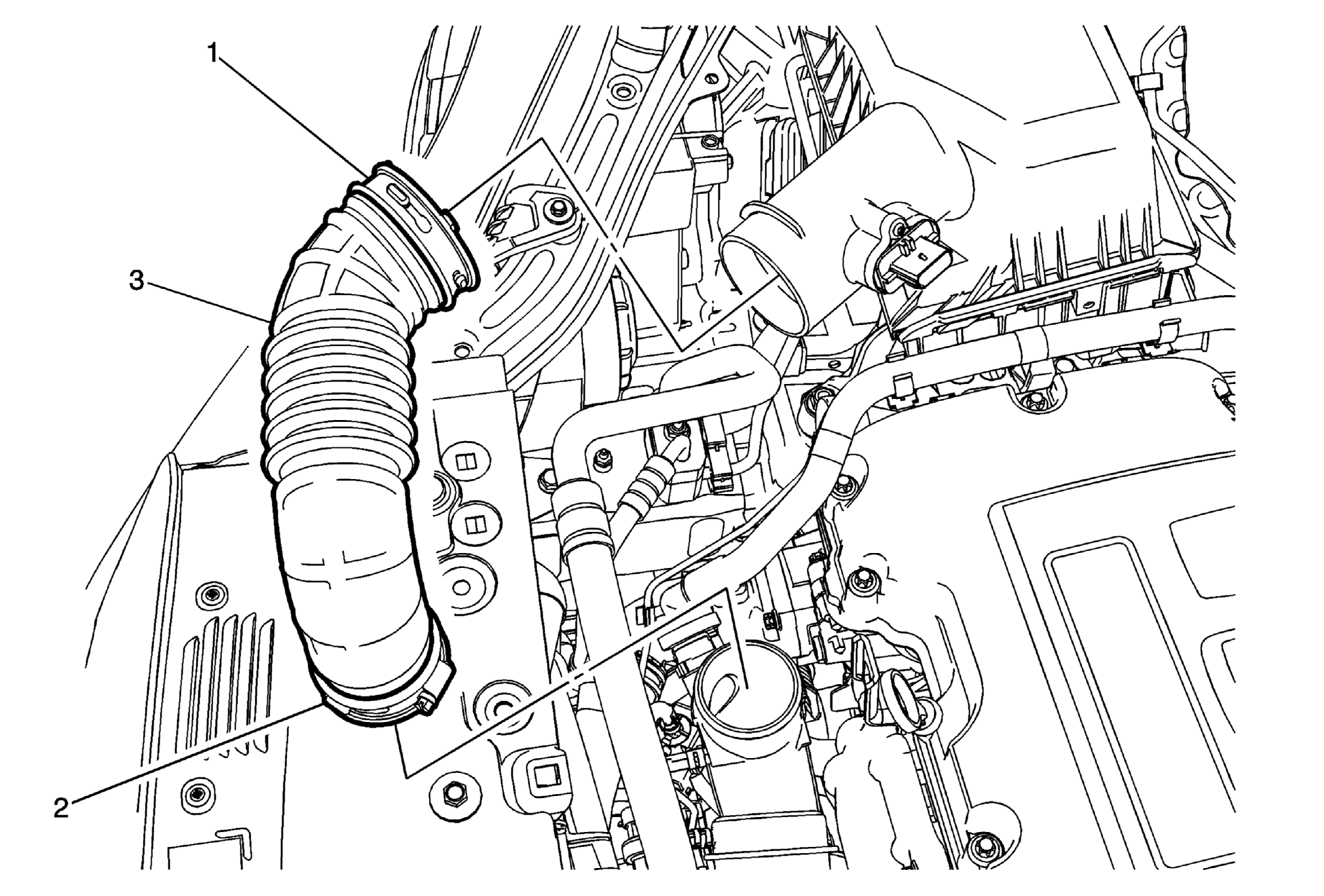

Fig 1: Air Cleaner Outlet Duct & Clamps

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Outlet Duct Clamp NOTE: Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
2	Air Cleaner Outlet Duct Clamp NOTE: Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
3	Air Cleaner Outlet Duct TIP: Air cleaner outlet front duct and air cleaner outlet rear duct are one part.
