Radio Front Center Speaker Replacement

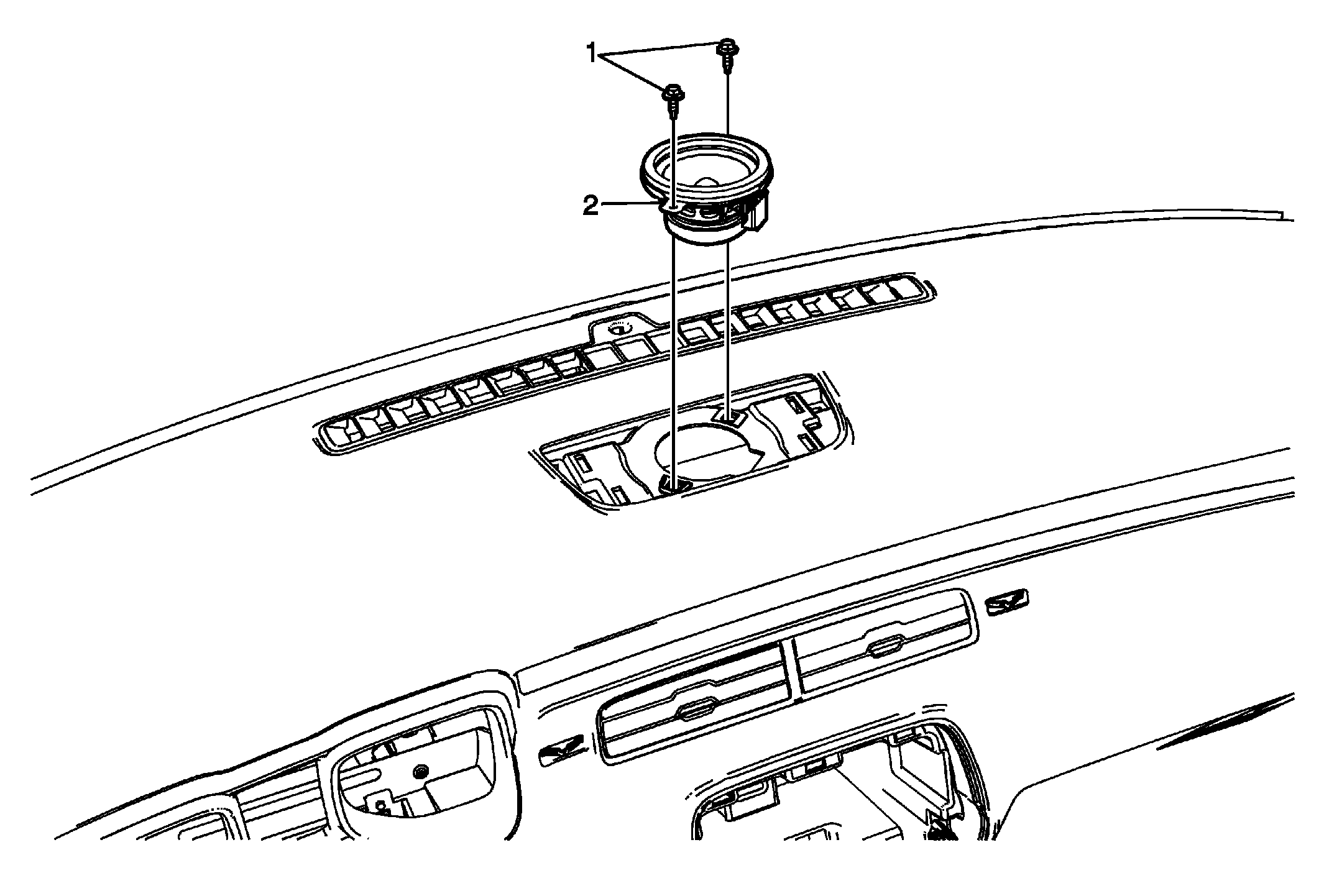

Fig 1: Radio Front Center Speaker And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the radio front speaker grille. Refer to Radio Front Speaker Grille Replacement .
1	Radio Front Speaker Bolt/Screw (Qty:2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Radio Front Speaker Procedure  Disconnect the electrical connectors.
