X50D Fuse Block - Battery X1

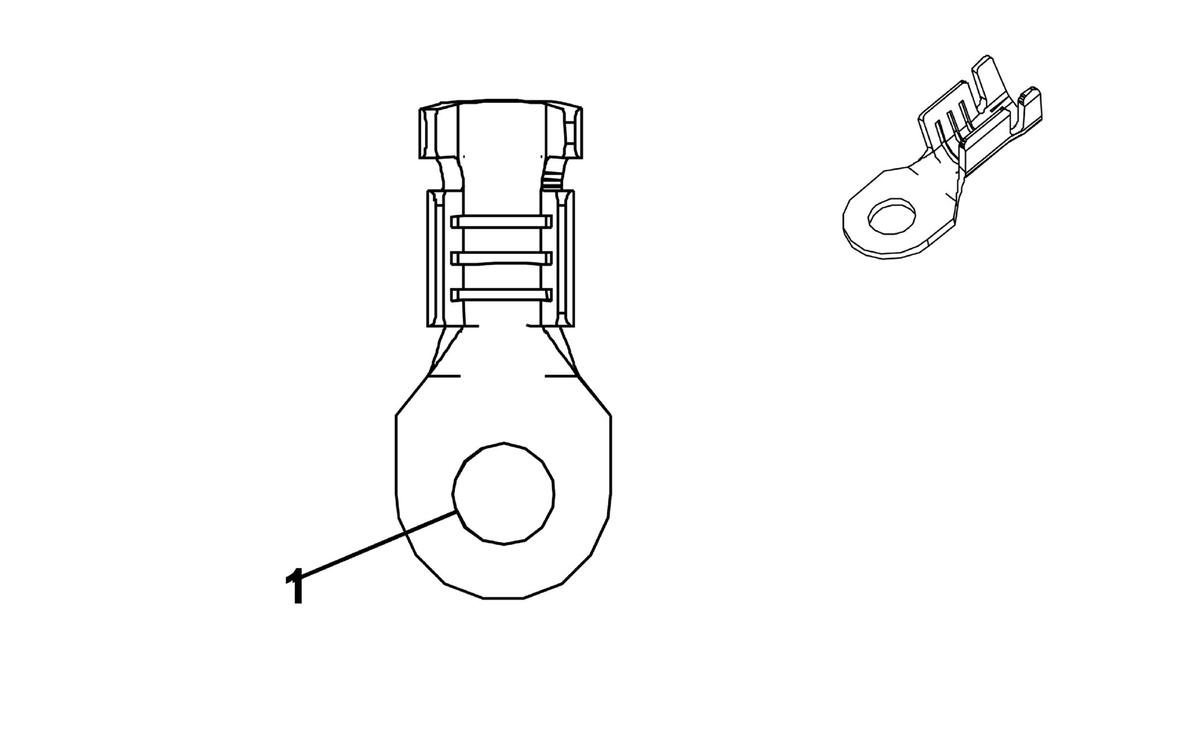

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not Available | No Tool Required | No Tool Required |
X50D Fuse Block - Battery X1
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1: 1 | 1: 25 | 1: RD | 1: 1 | 1: Battery Positive Voltage | 1: I | 1: - |
