G105




Harness Routing Views

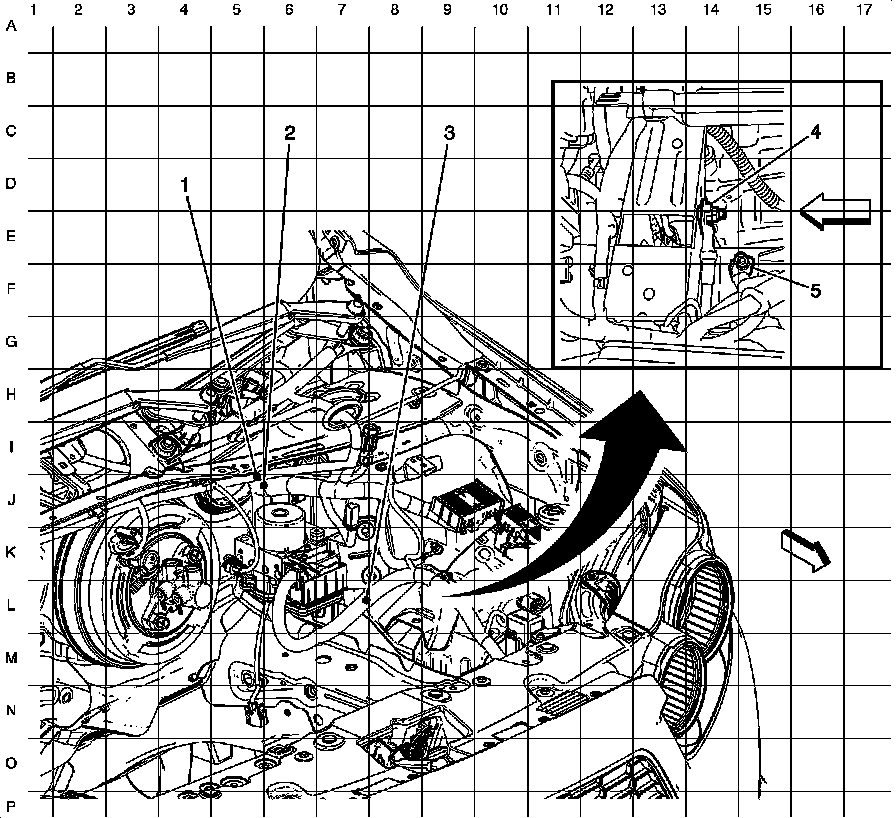

Rear of Engine Compartment Harness Routing





1 - J114

2 - J139

3 - J141

4 - G105

6 - G106
