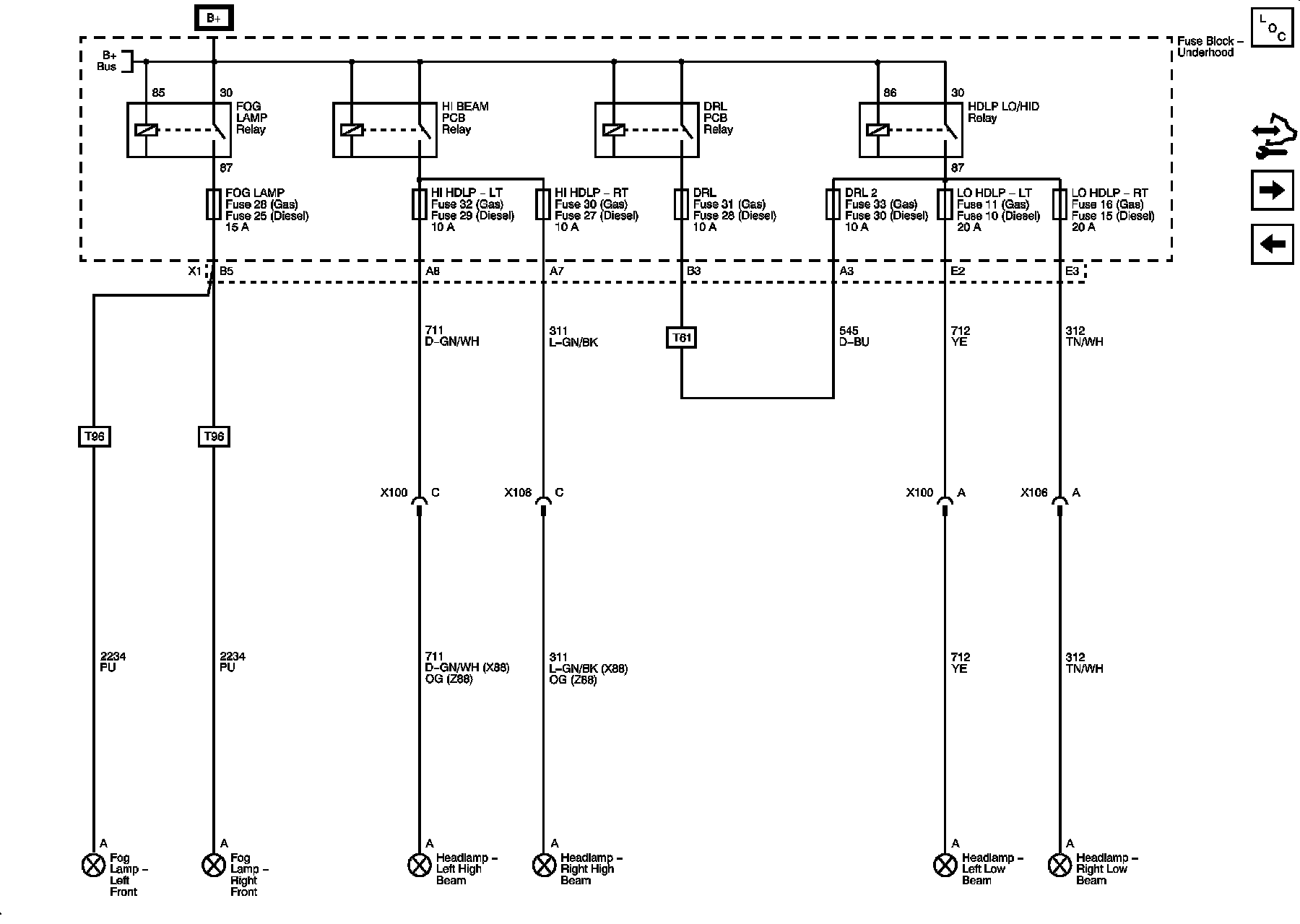

Home >> Chevrolet >> 2012 >> Silverado 1500 4WD V6-4.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Schematics >> Power Distribution Schematic 23
