Outside Rearview Mirror Seal Replacement

Preliminary Procedures

1. Place the front door window in the full down position.
2. Remove the outside rearview mirror. Refer to Outside Rearview Mirror Replacement .
3. Remove the front side door window belt reveal molding. Refer to Front Side Door Window Belt Reveal Molding Replacement .

Procedures

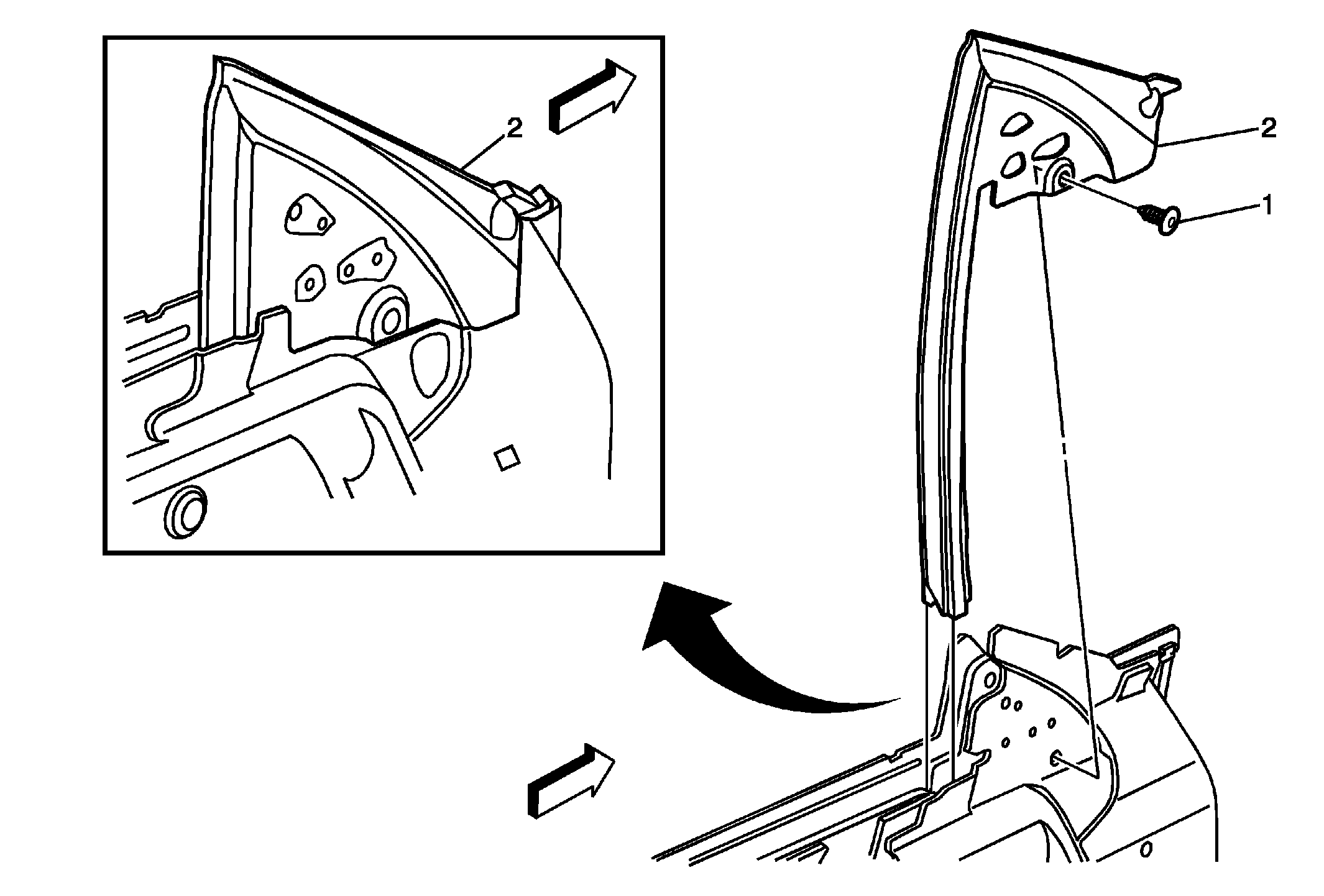

1. Insert mirror seal into the channel working it downward.
2. The seal must be fully seated into the door lower frame.
3. Inspect the mirror and window for proper operation before install the trim panel.
