Home >> Chevrolet >> 2011 >> Impala V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Police / Special Vehicle Options

Police / Special Vehicle Options




Component Connector End Views

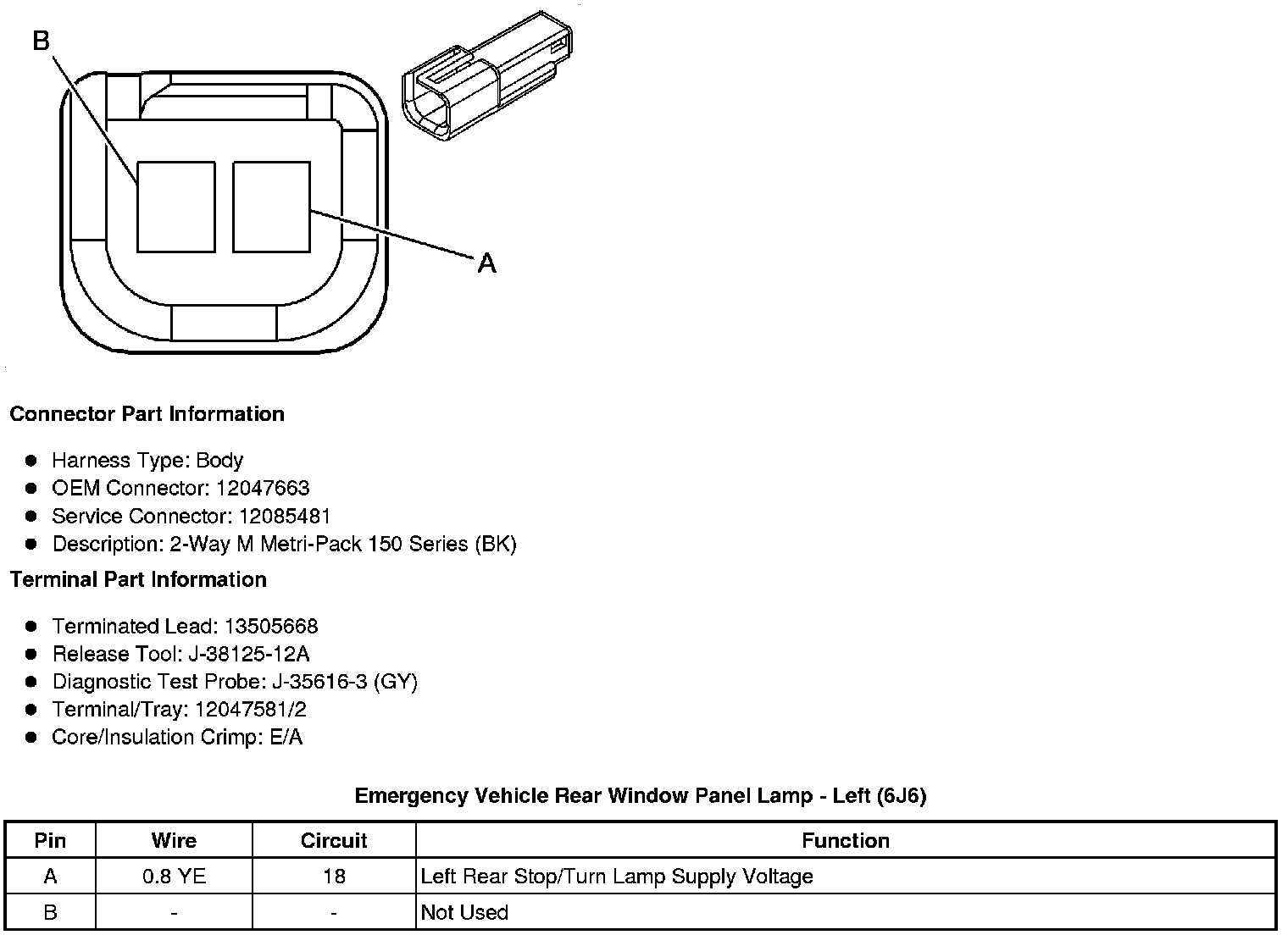

Emergency Vehicle Rear Window Panel Lamp - Left (6J6)

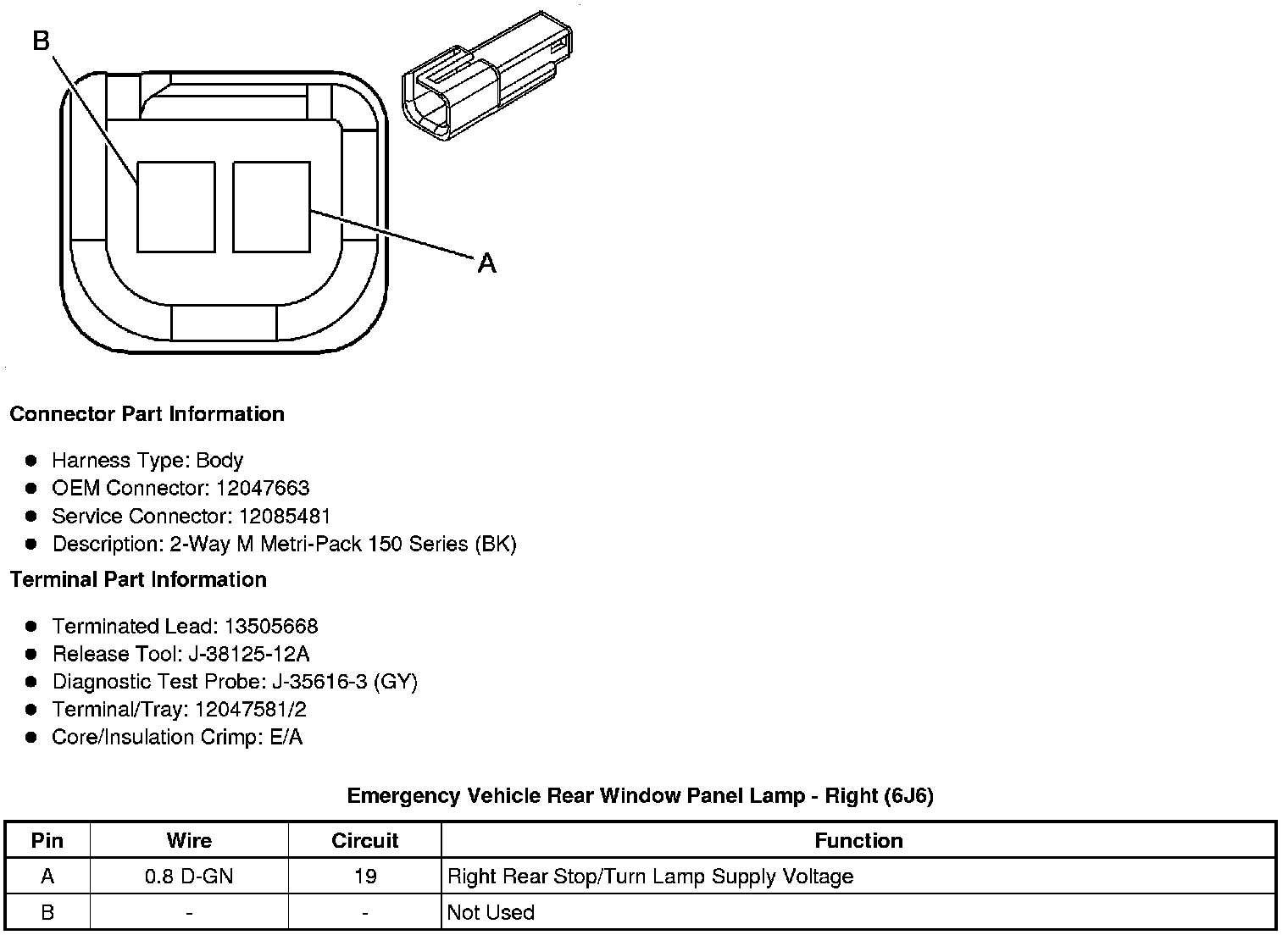

Emergency Vehicle Rear Window Panel Lamp - Right (6J6)
